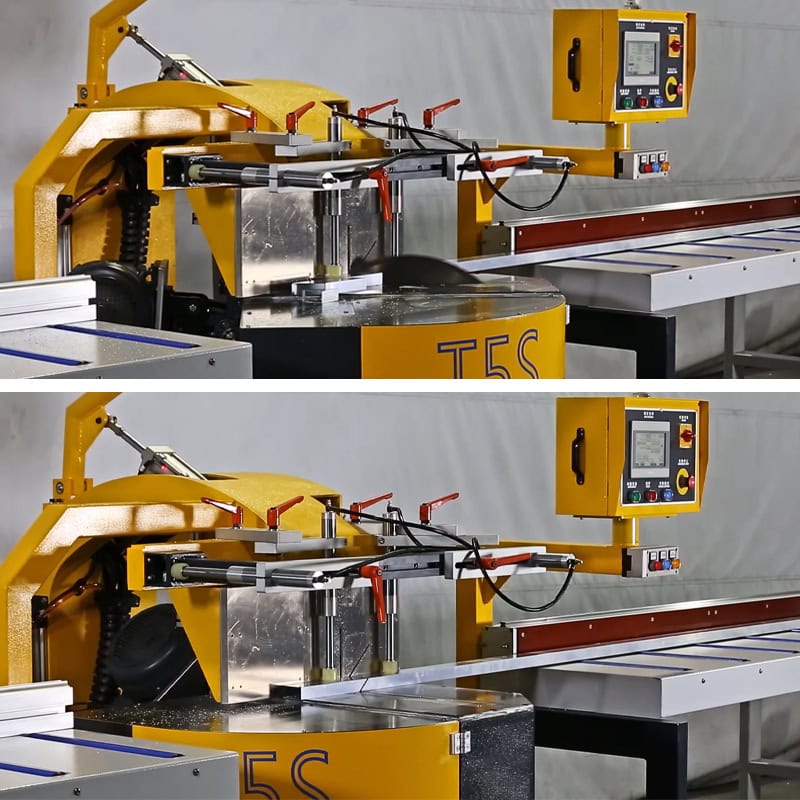

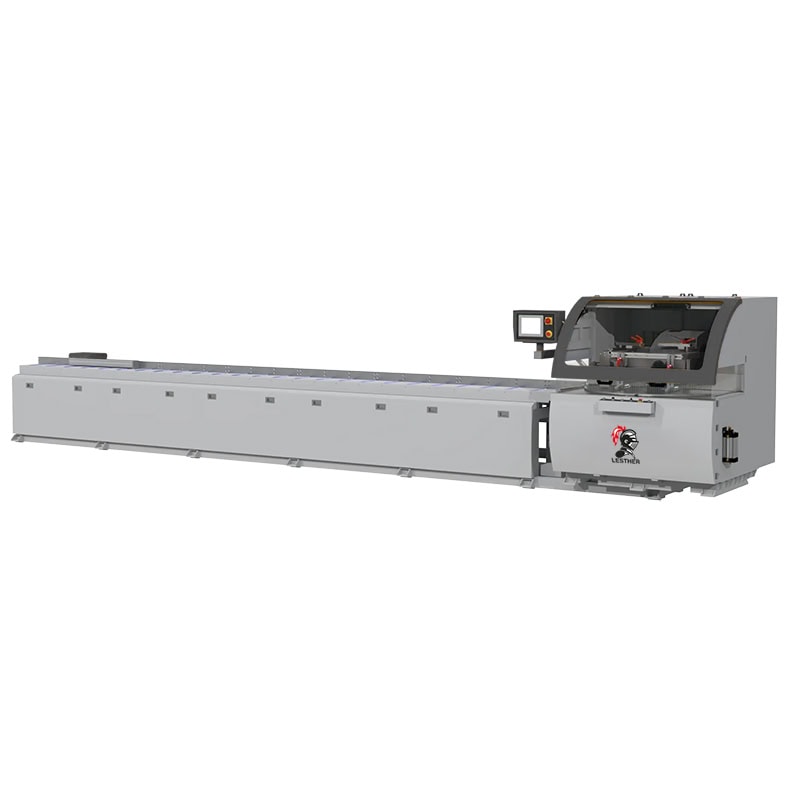

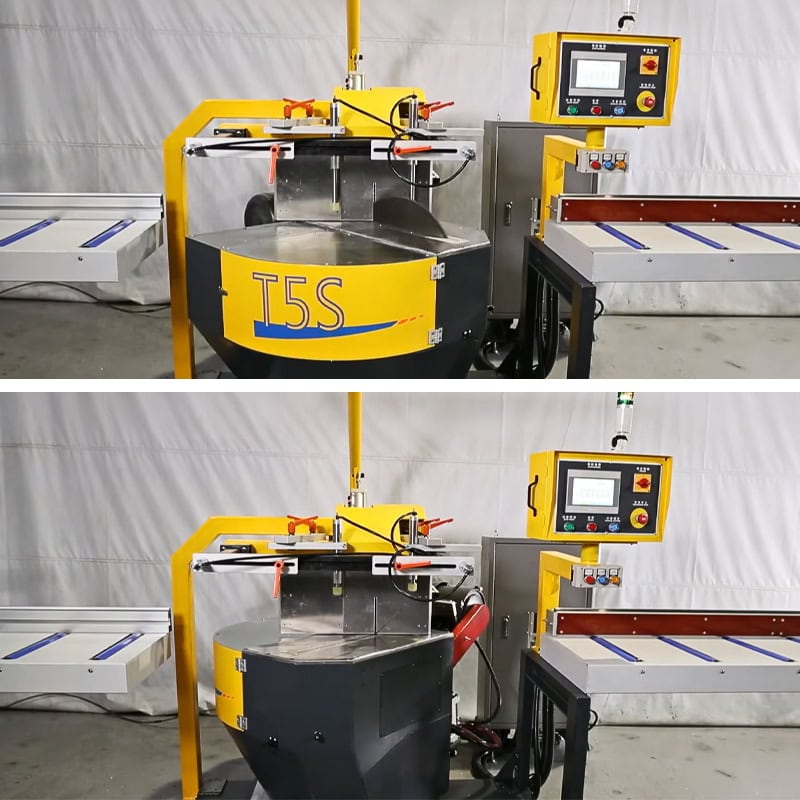

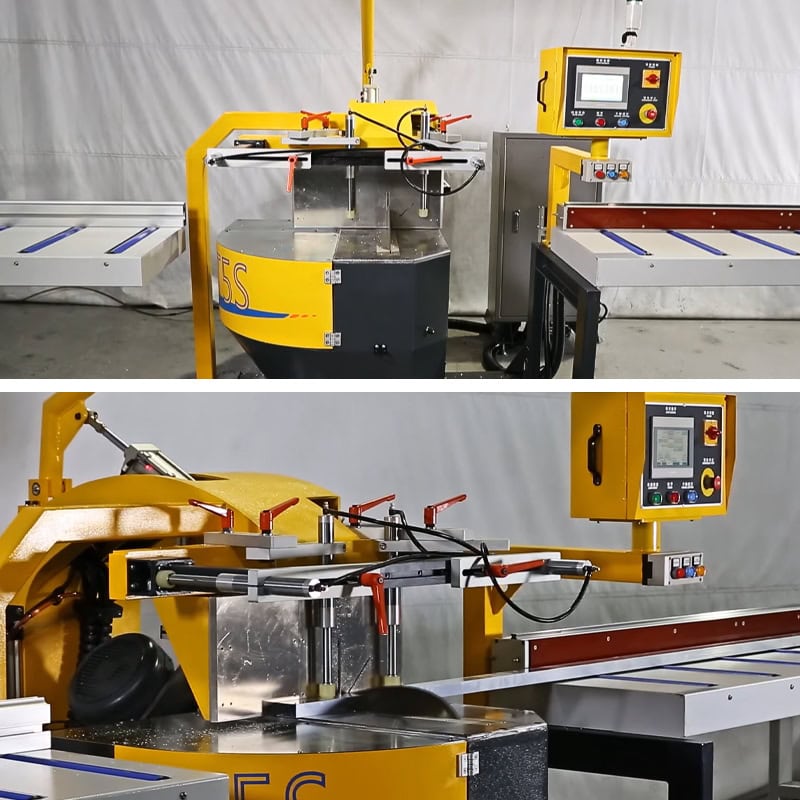

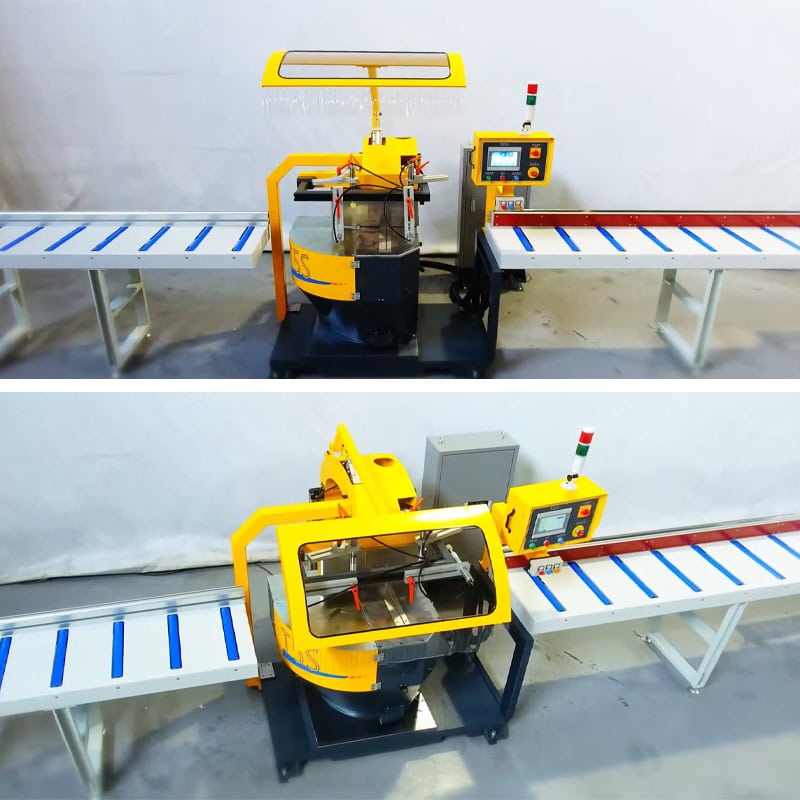

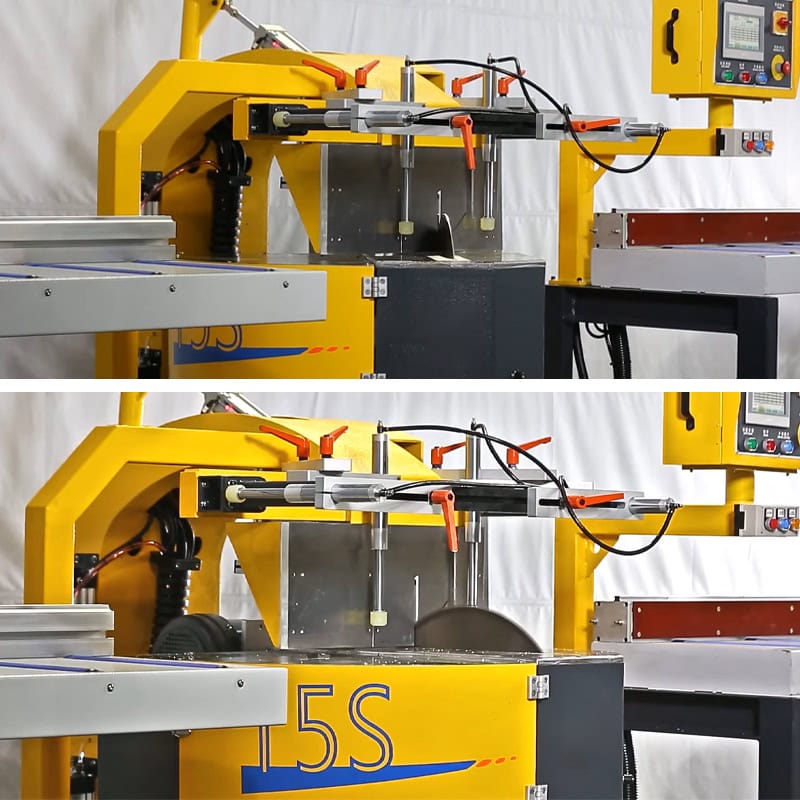

This model features a single worktable design with a single-head configuration, yet it delivers the same powerful functions as the dual-table version. The standalone worktable allows for flexible operation and can be equipped with either manual or automatic positioning and feeding systems, enabling precise alignment and cutting. Its versatile setup makes it highly adaptable to various machining requirements.

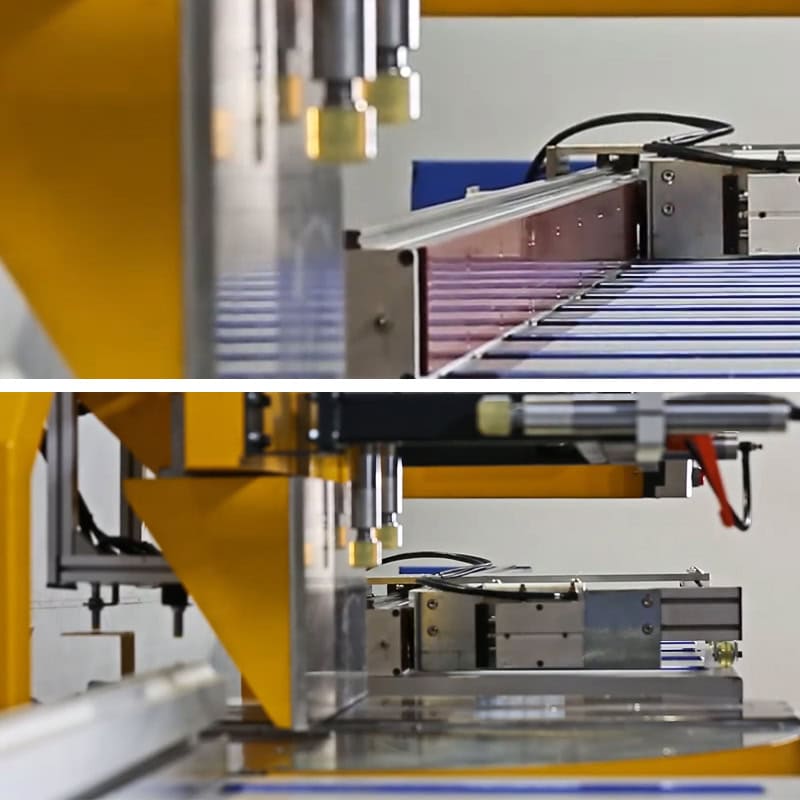

The machine supports automatic diagonal rotation between 22.5° and 157.5°, as well as vertical tilting from 0° to 45°. It is equipped with an automatic positioning system for precise length adjustment within the same tilting range. All five axes are driven by high-precision servomotors, ensuring exceptional control and machining accuracy. The X-axis runs on linear guideways, further enhancing both positioning and cutting precision. With outstanding overall performance, this machine sets a new standard in its class and is the ideal solution for operations that demand both flexibility and precision.

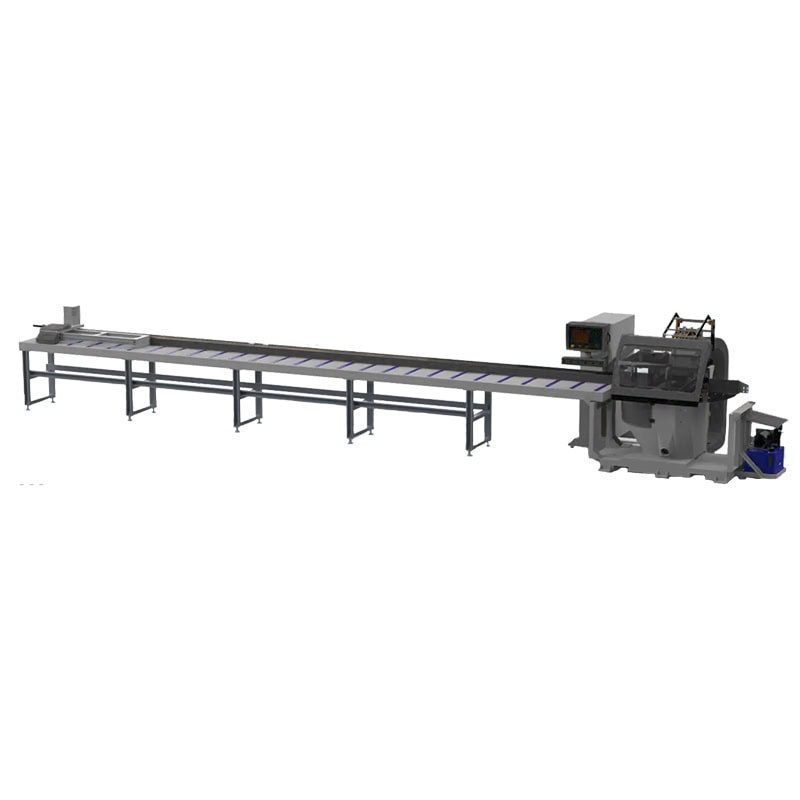

| Specifications | J-T5S-26 | J-T5S-30 |
|---|---|---|
| NC Control Cutting Angle | Yes | Yes |
| Optional Connection | J-AUTO 3000 | J-AUTO 3000 |

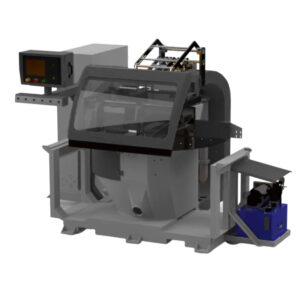

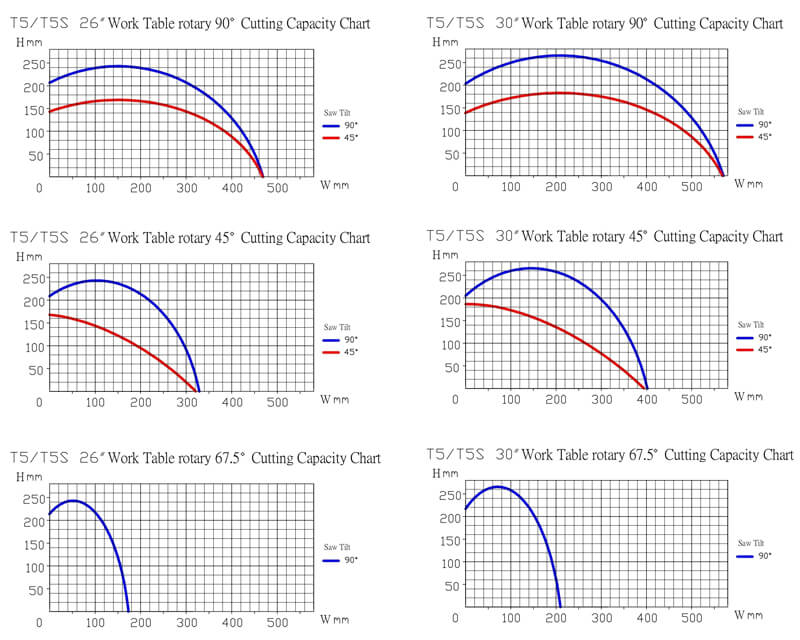

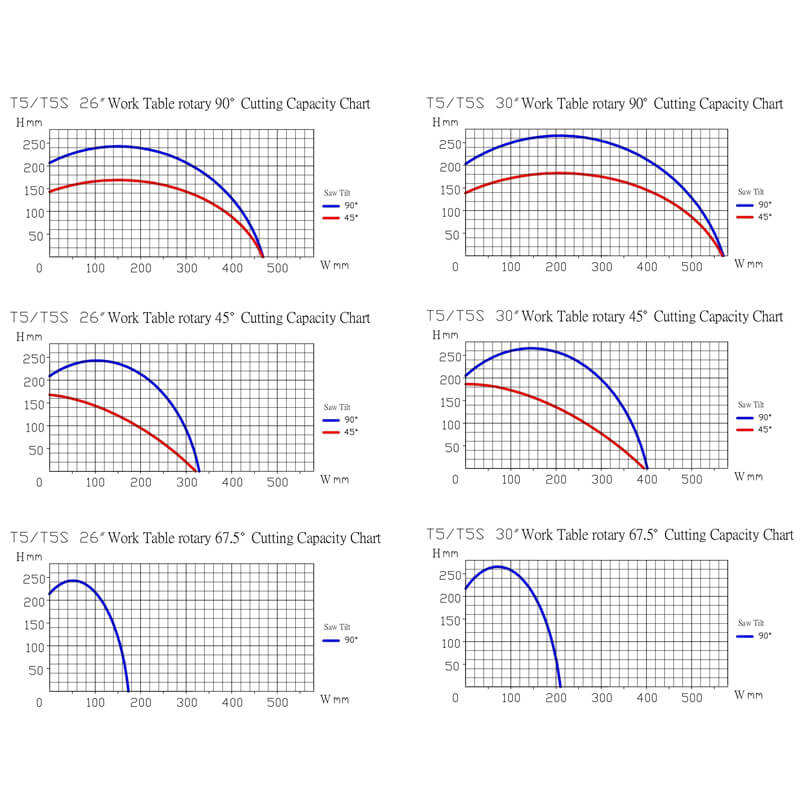

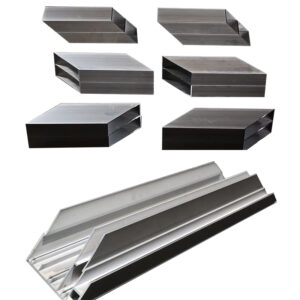

| Cutting capacity (HxW) | 90° cutting: 200 x 310 mm 45° cutting: 140 x 310 mm Cutting Capacity Reference:T5-26 cutting capacity chart |
90° cutting: 200 x 410 mm 45° cutting: 140 x 410 mm Cutting Capacity Reference:T5-30 cutting capacity chart |
| Range of rotation angle | 45° ~ 90° ~ 135° | 45° ~ 90° ~ 135° |
| Sawing angle miter | 45° ~ 90° (0° ~ 45°) | 45° ~ 90° (0° ~ 45°) |
| Saw spindle speed | 1,500 R.P.M | 1,170 R.P.M |
| Saw motor | 7.5 HP x 1 | 10 HP x 1 |
| Servomotor | Table rotary (1kW) x 1, Saw Tilt (750W) x 1 | Table rotary (1kW) x 1, Saw Tilt (750W) x 1 |
| Saw Blade Size | 26" x 1" bore x 1 pce | 30" x 50 mm bore x 1 pce |
| Air Pressure | 4 ~ 6 kgs/cm² | 4 ~ 6 kgs/cm² |
| Machine dimensions (L x W x H) | 2,060 x 1,810 x 1,760 mm | 2,350 x 2,080 x 2,060 mm |
| Packing dimensions (L x W x H) | 2,160 x 1,910 x 1,860 mm | 2,450 x 2,180 x 2,160 mm |
| Net / Gross Weight | 1,250 / 1,320 kgs | 1,800 / 2,000 kgs |
