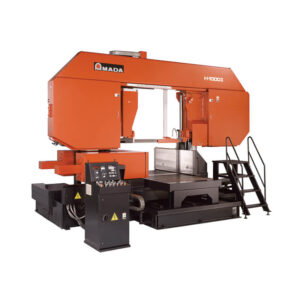

Amada H1000II Horizontal Semi-Automatic Billet Sawing Machine

Name: Amada H1000II Semi-Automatic Billet Sawing Machine
Brand: Amada

Amada H1000II horizontal and high-performance semi-automatic billet bandsaw for billets and metal cutting. 15 HP semi-automatic sawing machine with a 3" blade, a light beam marking, a motion detector, a pressure flow valve and a variable speed drive.

Quote request

A multidisciplinary team to accompany you in your projects

A remarkable After-Sales Support

Unrivaled quality and a customized product

Categories: Sawing & Cutting Machines, Semi-Automatic Bandsaws

Print in PDF

Send by email

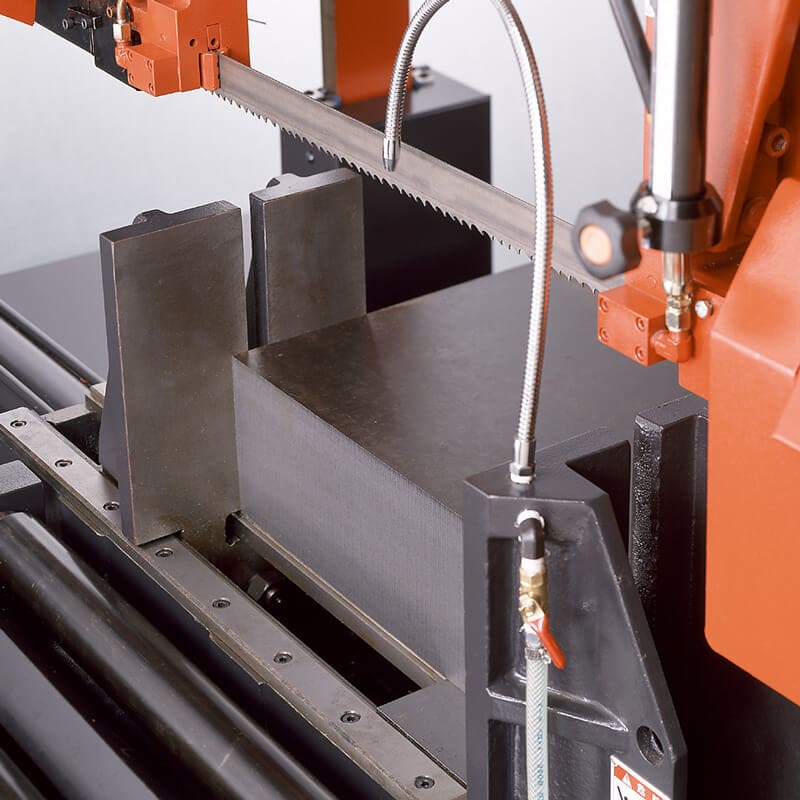

            	              		FeaturesHydraulic Vise
Prevents material movement while sawing
Easy set-up
Positive clamping on the full range of capacity

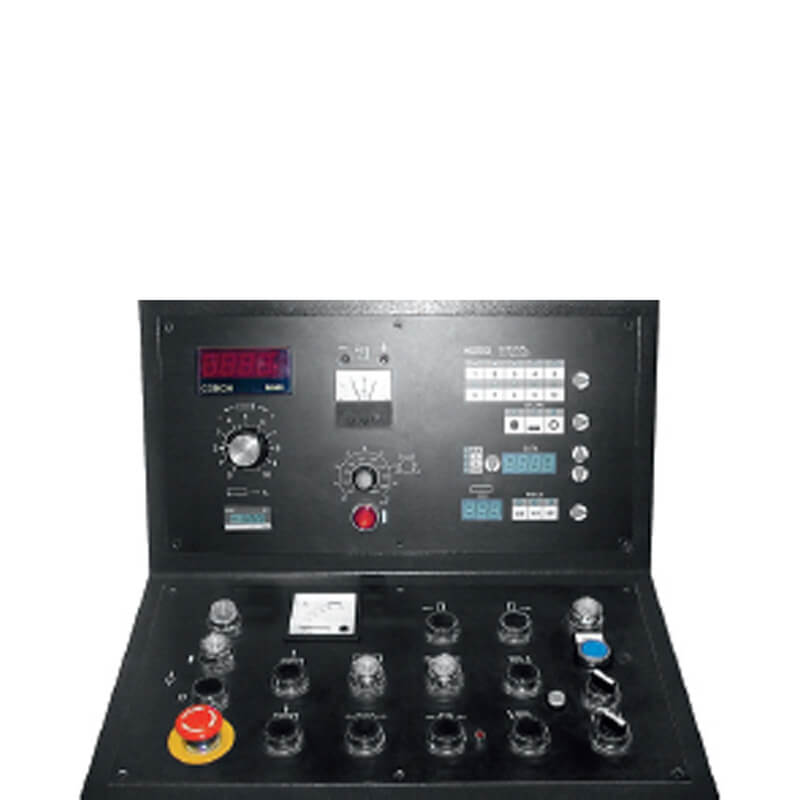

Dual Cut Control System
Combines with fine feed roller for accurate material indexing
Quick and easy set-up
Blade feed controlled by both pressure and flow
Maximum blade life in all cutting applications
Easy set-up with reference cutting rate system

Semi-Automatic Indexing
Quick and easy indexing with fine feed roller




            	              		Technical Specifications

Model
H1000II

Imperial
Metric


Cutting Capacity
Round (Diameter)
15.7″ – 40″
400 – 1000 mm
15.7″ – 40″
400 – 1000 mm
15.7″ x 15.7″ – 44″ x 40″
400 x 400 mm – 1100 x 1000 mm

Rectangle (W x H)
15.7″ x 15.7″ – 44″ x 40″
400 x 400 mm – 1100 x 1000 mm

Work Load Capacity
33,069 lbs.
15,000 kg

Saw Blade
Blade Size (L x T x W)
36’5″ x 0.063″ x 3″
11100 x 1.6 x 80 mm
36’5″ x 0.063″ x 3″
11100 x 1.6 x 80 mm
50-246 ft/min by Inverter
15-75 m/min by Inverter
Hydraulic

Blade Speed
50-246 ft/min by Inverter
15-75 m/min by Inverter

Tension Control
Hydraulic

Blade Control
Cutting Control
CNC-Light, Hydraulic Flow Control Valve with Stepping Motor
CNC-Light, Hydraulic Flow Control Valve with Stepping Motor
Automatic Setting with Quick Approach Feeler

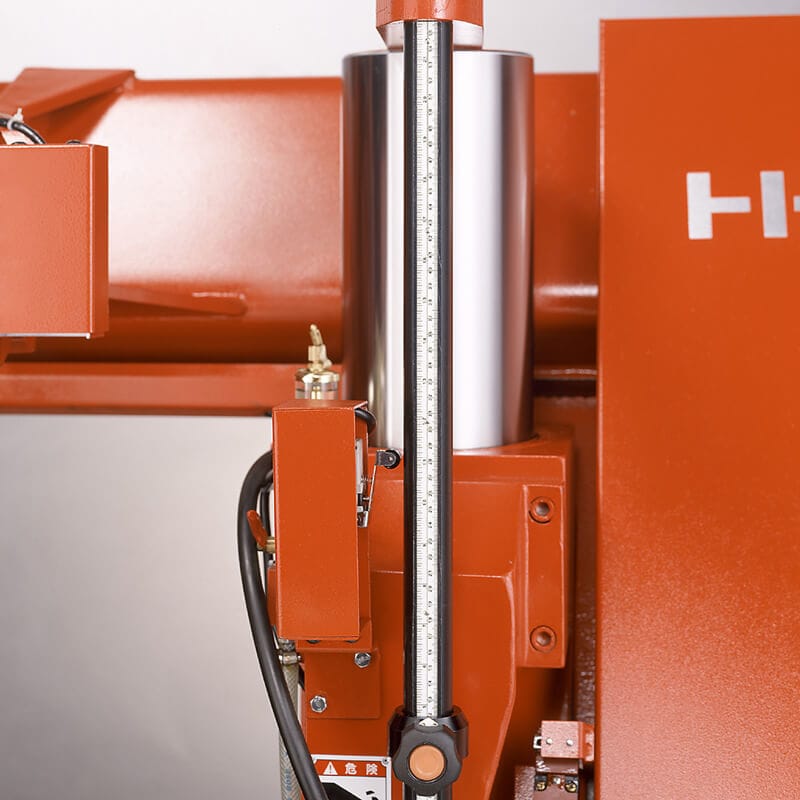

Top Limit Setting
Automatic Setting with Quick Approach Feeler

Vise Operation
Type
Front and Rear Vises
Front and Rear Vises
Hydraulic Full-Stroke Cylinder

Control
Hydraulic Full-Stroke Cylinder

Motors
Saw Blade
15 HP
11 kW
15 HP
11 kW
5 HP
3.7 kW
1/4 HP
0.2 kW
1/8 HP
0.09 kW

Hydraulic Pump
5 HP
3.7 kW

Cutting Fluid Pump
1/4 HP
0.2 kW

Wire Brush
1/8 HP
0.09 kW

Power Requirement
Power Supply Voltage
AC220V±10%, 3 PH, 60 Hz - All Other Voltages Require Transformer
AC220V±10%, 3 PH, 60 Hz - All Other Voltages Require Transformer
20 kVA

Power Requirement
20 kVA

Cutting Fluid
Tank Capacity
66.1 gal
250 liters
66.1 gal
250 liters
Electric

Pump Type
Electric

Hydraulic
Tank Capacity
39.6 gal
150 liters
39.6 gal
150 liters
1110 psi
7.8 MPa (78 kgf/cm2)

Pressure Setting
1110 psi
7.8 MPa (78 kgf/cm2)

Chip Disposal
Chip Conveyor

Material Index
Index Mechanism
Outboard Vise, Manual Operation
Outboard Vise, Manual Operation
19.7″
500 mm
N/A
N/A
N/A
N/A

Stroke
19.7″
500 mm

Length
N/A

Number of Input Station
N/A

Number of Cut-Off Pieces
N/A

Remnant Length
N/A

Machine Dimensions (W x L x H)
Head-Up Position
213.3″ x 130.7″ x 150.6″
5417 x 3321 x 3824 mm
213.3″ x 130.7″ x 150.6″
5417 x 3321 x 3824 mm
213.3″ x 130.7″ x 121.1″
5417 x 3321 x 3075 mm

Head Down Position
213.3″ x 130.7″ x 121.1″
5417 x 3321 x 3075 mm

Table Height
33.5″
850 mm

Machine Weight
30,800 lbs
14,000 kg




Sawing & Cutting Machines

Blades & Band Saws

Industrial Lubricants & Filtration

Tribofinishing & Deburring Machines

Machining Centers & Industrial Equipment

Machine Safeguarding & Modular Machine Guards

Amada H1000II Horizontal Semi-Automatic Billet Sawing Machine

Features

Technical Specifications

You May Also Like

The Montfort Benefits

A multidisciplinary team to accompany you in your projects

Unrivaled quality and a customized product

A remarkable After-Sales Support

Model		H1000II
Model		Imperial	Metric
Cutting Capacity	Round (Diameter)	15.7″ – 40″	400 – 1000 mm	15.7″ – 40″ 400 – 1000 mm	15.7″ x 15.7″ – 44″ x 40″ 400 x 400 mm – 1100 x 1000 mm
Cutting Capacity	Rectangle (W x H)	15.7″ x 15.7″ – 44″ x 40″	400 x 400 mm – 1100 x 1000 mm
Work Load Capacity		33,069 lbs.	15,000 kg
Saw Blade	Blade Size (L x T x W)	36’5″ x 0.063″ x 3″	11100 x 1.6 x 80 mm	36’5″ x 0.063″ x 3″ 11100 x 1.6 x 80 mm	50-246 ft/min by Inverter 15-75 m/min by Inverter	Hydraulic
	Blade Speed	50-246 ft/min by Inverter	15-75 m/min by Inverter
	Tension Control	Hydraulic
Blade Control	Cutting Control	CNC-Light, Hydraulic Flow Control Valve with Stepping Motor		CNC-Light, Hydraulic Flow Control Valve with Stepping Motor	Automatic Setting with Quick Approach Feeler
Blade Control	Top Limit Setting	Automatic Setting with Quick Approach Feeler
Vise Operation	Type	Front and Rear Vises		Front and Rear Vises	Hydraulic Full-Stroke Cylinder
Vise Operation	Control	Hydraulic Full-Stroke Cylinder
Motors	Saw Blade	15 HP	11 kW	15 HP 11 kW	5 HP 3.7 kW	1/4 HP 0.2 kW	1/8 HP 0.09 kW
	Hydraulic Pump	5 HP	3.7 kW
	Cutting Fluid Pump	1/4 HP	0.2 kW
	Wire Brush	1/8 HP	0.09 kW
Power Requirement	Power Supply Voltage	AC220V±10%, 3 PH, 60 Hz - All Other Voltages Require Transformer		AC220V±10%, 3 PH, 60 Hz - All Other Voltages Require Transformer	20 kVA
Power Requirement	Power Requirement	20 kVA
Cutting Fluid	Tank Capacity	66.1 gal	250 liters	66.1 gal 250 liters	Electric
Cutting Fluid	Pump Type	Electric
Hydraulic	Tank Capacity	39.6 gal	150 liters	39.6 gal 150 liters	1110 psi 7.8 MPa (78 kgf/cm2)
Hydraulic	Pressure Setting	1110 psi	7.8 MPa (78 kgf/cm2)
Chip Disposal		Chip Conveyor
Material Index	Index Mechanism	Outboard Vise, Manual Operation		Outboard Vise, Manual Operation	19.7″ 500 mm	N/A	N/A	N/A	N/A
	Stroke	19.7″	500 mm
	Length	N/A
	Number of Input Station	N/A
	Number of Cut-Off Pieces	N/A
	Remnant Length	N/A
Machine Dimensions (W x L x H)	Head-Up Position	213.3″ x 130.7″ x 150.6″	5417 x 3321 x 3824 mm	213.3″ x 130.7″ x 150.6″ 5417 x 3321 x 3824 mm	213.3″ x 130.7″ x 121.1″ 5417 x 3321 x 3075 mm
Machine Dimensions (W x L x H)	Head Down Position	213.3″ x 130.7″ x 121.1″	5417 x 3321 x 3075 mm
Table Height		33.5″	850 mm
Machine Weight		30,800 lbs	14,000 kg
