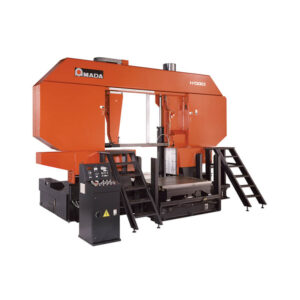

Amada H1300II Horizontal Semi-Automatic Billet Sawing Machine

Name: Amada H1300II Semi-Automatic Billet Sawing Machine
Brand: Amada

Amada H1300II horizontal and high-performance semi-automatic billet bandsaw for billets and metal cutting. 20 H.P. semi-automatic sawing machine with a 3" blade, light beam marking, motion detector and variable speed drive.

Quote request

A multidisciplinary team to accompany you in your projects

A remarkable After-Sales Support

Unrivaled quality and a customized product

Categories: Sawing & Cutting Machines, Semi-Automatic Bandsaws

Print in PDF

Send by email

            	              		FeaturesHydraulic Vise
Prevents material movement while sawing
Easy set-up
Positive clamping on the full range of capacity

Dual Cut Control System
Combines with fine feed roller for accurate material indexing
Quick and easy set-up
Blade feed controlled by both pressure and flow
Maximum blade life in all cutting applications
Easy set-up with reference cutting rate system

Semi Automatic Indexing
Quick and easy indexing with the fine feed roller




            	              		Technical Specifications

Modèle
H1300II

Imperial
Metric


Cutting Capacity
Round (Diameter)
22.4″ – 52″
570 – 1300 mm
22.4″ – 52″
570 – 1300 mm
23.6″ x 23.6″ – 52″ x 52″
600 x 600mm – 1300 x 1300 mm

Rectangle (W x H)
23.6″ x 23.6″ – 52″ x 52″
600 x 600mm – 1300 x 1300 mm

Work Load Capacity
37,478 lbs
17,000 kg

Saw Blade
Blade Size (L x T x W)
40’4″ x 0.063″ x 3″
12300 x 1.6 x 80 mm
40’4″ x 0.063″ x 3″
12300 x 1.6 x 80 mm
50-230 ft/min by Inverter
15-70 m/min by Inverter
Hydraulic

Blade Speed
50-230 ft/min by Inverter
15-70 m/min by Inverter

Tension Control
Hydraulic

Blade Control
Cutting Control
CNC-Lite, , Hydraulic Flow Control Valve with Stepping Motor
CNC-Lite, , Hydraulic Flow Control Valve with Stepping Motor
Automatic Setting with Quick Approach Feeler

Top Limit Setting
Automatic Setting with Quick Approach Feeler

Vise Operation
Type
Main Vise
Main Vise
Hydraulic Full-Stroke Cylinder

Control
Hydraulic Full-Stroke Cylinder

Motors
Saw Blade
20 HP
15 kW
20 HP
15 kW
5 HP
3.7 kW
1/2 HP
0.4 kW

Hydraulic Pump
5 HP
3.7 kW

Cutting Fluid Pump
1/2 HP
0.4 kW

Power Requirement
Power Supply Voltage
AC220V±10%, 3 PH, 60 Hz - All Other Voltages Require Transformer
AC220V±10%, 3 PH, 60 Hz - All Other Voltages Require Transformer
28 kVA

Power Requirement
28 kVA

Cutting Fluid
Tank Capacity
73.9 gal
280 liters
73.9 gal
280 liters
Electric

Pump Type
Electric

Hydraulic
Tank Capacity
52.8 gal
200 liters
52.8 gal
200 liters
1080 psi
7.6 MPa (76 kgf/cm2)

Pressure Setting
1080 psi
7.6 MPa (76 kgf/cm2)

Chip Disposal
Chip Conveyor

Material Index
Index Mechanism
Table Feed, Manual operation
Table Feed, Manual operation
70.8″, by Hydraulic
1800 mm, by Hydraulic
N/A
N/A
N/A
N/A

Stroke
70.8″, by Hydraulic
1800 mm, by Hydraulic

Length
N/A

Number of Input Station
N/A

Number of Cut-Off Pieces
N/A

Remnant Length
N/A

Machine Dimensions (W x L x H)
Head-Up Position
220.4″ x 171.6″ x 160.8″
5597 x 4360 x 4084 mm
220.4″ x 171.6″ x 160.8″
5597 x 4360 x 4084 mm
220.4″ x 171.6″ x 136.9″
5597 x 4360 x 3479 mm

Head Down Position
220.4″ x 171.6″ x 136.9″
5597 x 4360 x 3479 mm

Table Height
27.5″
700 mm

Machine Weight
40,790 lbs
18,500 kg




Sawing & Cutting Machines

Blades & Band Saws

Industrial Lubricants & Filtration

Tribofinishing & Deburring Machines

Machining Centers & Industrial Equipment

Machine Safeguarding & Modular Machine Guards

Amada H1300II Horizontal Semi-Automatic Billet Sawing Machine

Features

Technical Specifications

You May Also Like

The Montfort Benefits

A multidisciplinary team to accompany you in your projects

Unrivaled quality and a customized product

A remarkable After-Sales Support

Modèle		H1300II
Modèle		Imperial	Metric
Cutting Capacity	Round (Diameter)	22.4″ – 52″	570 – 1300 mm	22.4″ – 52″ 570 – 1300 mm	23.6″ x 23.6″ – 52″ x 52″ 600 x 600mm – 1300 x 1300 mm
Cutting Capacity	Rectangle (W x H)	23.6″ x 23.6″ – 52″ x 52″	600 x 600mm – 1300 x 1300 mm
Work Load Capacity		37,478 lbs	17,000 kg
Saw Blade	Blade Size (L x T x W)	40’4″ x 0.063″ x 3″	12300 x 1.6 x 80 mm	40’4″ x 0.063″ x 3″ 12300 x 1.6 x 80 mm	50-230 ft/min by Inverter 15-70 m/min by Inverter	Hydraulic
	Blade Speed	50-230 ft/min by Inverter	15-70 m/min by Inverter
	Tension Control	Hydraulic
Blade Control	Cutting Control	CNC-Lite, , Hydraulic Flow Control Valve with Stepping Motor		CNC-Lite, , Hydraulic Flow Control Valve with Stepping Motor	Automatic Setting with Quick Approach Feeler
Blade Control	Top Limit Setting	Automatic Setting with Quick Approach Feeler
Vise Operation	Type	Main Vise		Main Vise	Hydraulic Full-Stroke Cylinder
Vise Operation	Control	Hydraulic Full-Stroke Cylinder
Motors	Saw Blade	20 HP	15 kW	20 HP 15 kW	5 HP 3.7 kW	1/2 HP 0.4 kW
	Hydraulic Pump	5 HP	3.7 kW
	Cutting Fluid Pump	1/2 HP	0.4 kW
Power Requirement	Power Supply Voltage	AC220V±10%, 3 PH, 60 Hz - All Other Voltages Require Transformer		AC220V±10%, 3 PH, 60 Hz - All Other Voltages Require Transformer	28 kVA
Power Requirement	Power Requirement	28 kVA
Cutting Fluid	Tank Capacity	73.9 gal	280 liters	73.9 gal 280 liters	Electric
Cutting Fluid	Pump Type	Electric
Hydraulic	Tank Capacity	52.8 gal	200 liters	52.8 gal 200 liters	1080 psi 7.6 MPa (76 kgf/cm2)
Hydraulic	Pressure Setting	1080 psi	7.6 MPa (76 kgf/cm2)
Chip Disposal		Chip Conveyor
Material Index	Index Mechanism	Table Feed, Manual operation		Table Feed, Manual operation	70.8″, by Hydraulic 1800 mm, by Hydraulic	N/A	N/A	N/A	N/A
	Stroke	70.8″, by Hydraulic	1800 mm, by Hydraulic
	Length	N/A
	Number of Input Station	N/A
	Number of Cut-Off Pieces	N/A
	Remnant Length	N/A
Machine Dimensions (W x L x H)	Head-Up Position	220.4″ x 171.6″ x 160.8″	5597 x 4360 x 4084 mm	220.4″ x 171.6″ x 160.8″ 5597 x 4360 x 4084 mm	220.4″ x 171.6″ x 136.9″ 5597 x 4360 x 3479 mm
Machine Dimensions (W x L x H)	Head Down Position	220.4″ x 171.6″ x 136.9″	5597 x 4360 x 3479 mm
Table Height		27.5″	700 mm
Machine Weight		40,790 lbs	18,500 kg
