Amada H1600II Horizontal Semi-Automatic Billet Sawing Machine

Name: Amada H1600II Semi-Automatic Billet Sawing Machine
Brand: Amada

Amada H1600II horizontal and high-performance semi-automatic billet bandsaw for billets and metal cutting. 20 HP semi-automatic sawing machine with a 3" blade, a chip conveyor, a CNC lite cutting control, a light beam marking, variable blade running sped drive and a vibration prevent roller.

Quote request

A multidisciplinary team to accompany you in your projects

A remarkable After-Sales Support

Unrivaled quality and a customized product

Categories: Sawing & Cutting Machines, Semi-Automatic Bandsaws

Print in PDF

Send by email

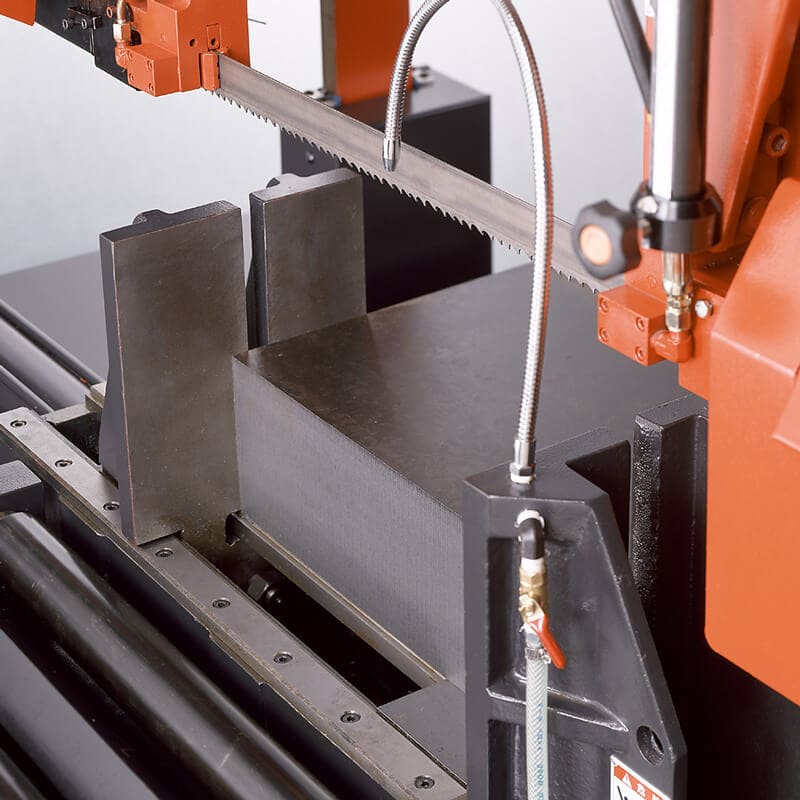

            	              		FeaturesHydraulic Vise
Prevents material movement while sawing
Easy set-up
Positive clamping on the full range of capacity

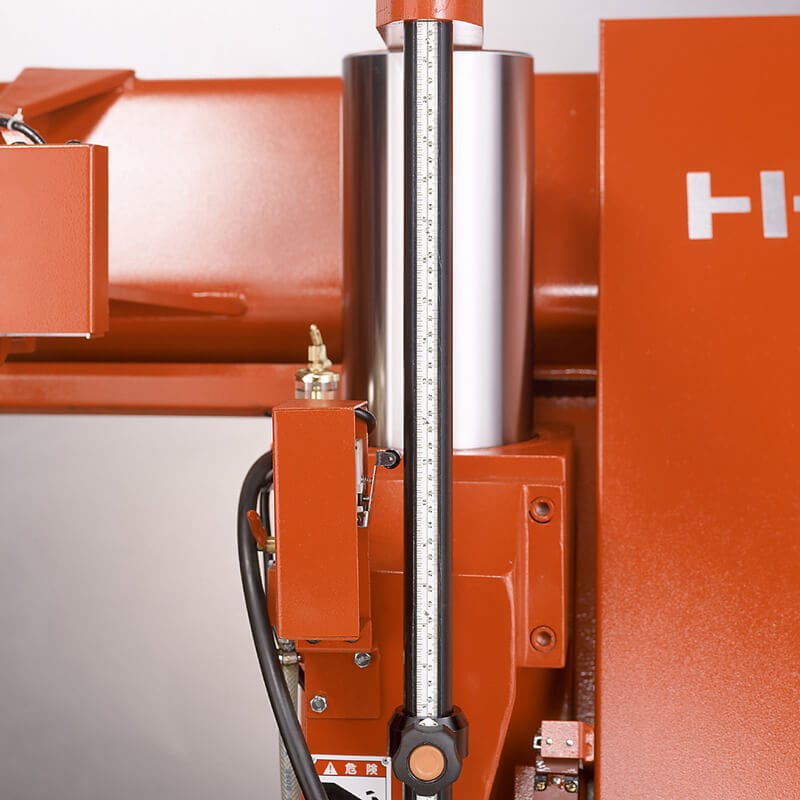

Dual Cut Control System
Combines with fine feed roller for accurate material indexing
Quick and easy set-up
Blade feed controlled by both pressure and flow
Maximum blade life in all cutting applications
Easy set-up with reference cutting rate system

Semi-Automatic Indexing
Quick and easy indexing with fine feed roller




            	              		Technical Specifications

Model
H1600II

Imperial
Metric


Cutting Capacity
Round (Diameter)
23.62″ – 63″
600 – 1600 mm
23.62″ – 63″
400 – 1000 mm
63″ x 63″
1600 x 1600 mm

Rectangle (W x H)
63″ x 63″
1600 x 1600 mm

Work Load Capacity
88,200 lbs
40,000 kg

Saw Blade
Blade Size (L x T x W)
50’10” x 0.063″ x 3″
15500 x 1.6 x 80 mm
50’10” x 0.063″ x 3″
15500 x 1.6 x 80 mm
39.4 – 196.8 ft/min by Inverter
12-60 m/min by Inverter
Hydraulic

Blade Speed
39.4 – 196.8 ft/min by Inverter
12-60 m/min by Inverter

Tension Control
Hydraulic

Blade Control

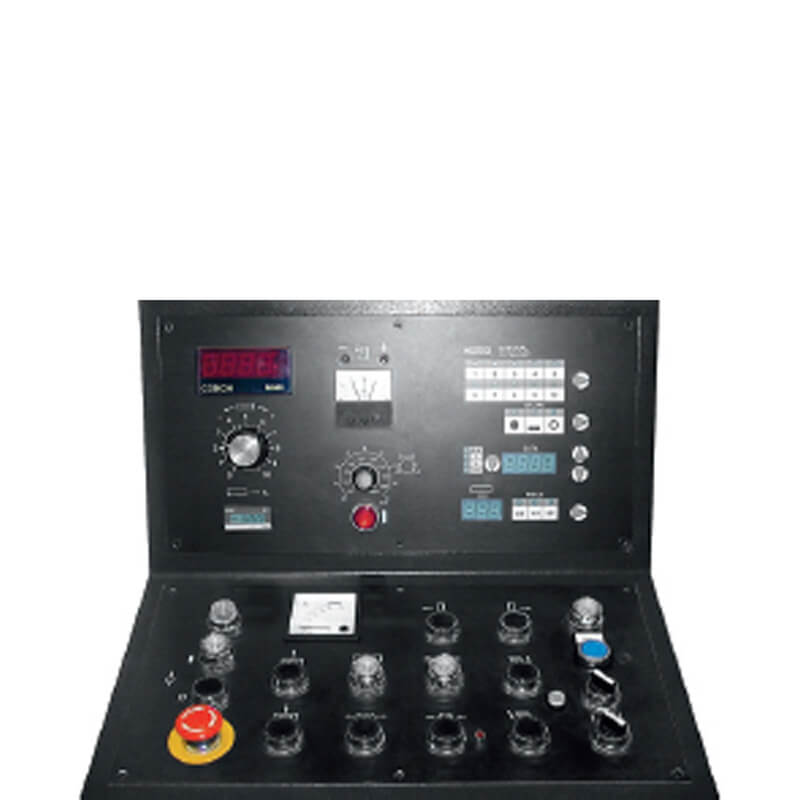

Cutting Control
CNC-Light, Hydraulic Flow Control Valve with Stepping Motor
CNC-Light, Hydraulic Flow Control Valve with Stepping Motor
Automatic Setting with Quick Approach Feeler

Top Limit Setting
Automatic Setting with Quick Approach Feeler

Vise Operation
Type
Single Vise
Single Vise
Hydraulic Full-Stroke Cylinder

Control
Hydraulic Full-Stroke Cylinder

Motors
Saw Blade
20 HP
15 kW
20 HP
15 kW
7.5 HP
5.5 kW
1/2 HP
0.4 kW

Hydraulic Pump
7.5 HP
5.5 kW

Cutting Fluid Pump
1/2 HP
0.4 kW

Power Requirement
Power Supply Voltage
AC220V±10%, 3 PH, 60 Hz - All Other Voltages Require Transformer
AC220V±10%, 3 PH, 60 Hz - All Other Voltages Require Transformer
35 kVA

Power Requirement
35 kVA

Cutting Fluid
Tank Capacity
92.5 gal
350 liters
92.5 gal
350 liters
Electric

Pump Type
Electric

Hydraulic
Tank Capacity
66.1 gal
250 liters
66.1 gal
250 liters
1045 psi
7.5 MPa (73.5 kgf/cm2)

Pressure Setting
1045 psi
7.5 MPa (73.5 kgf/cm2)

Chip Disposal
Chip Conveyor

Material Index
Index Mechanism
Table Feed, Manual Operation
Table Feed, Manual Operation
70.9″ by Hydraulic
1800 mm by Hydraulic
N/A
N/A
N/A
N/A

Stroke
70.9″ by Hydraulic
1800 mm by Hydraulic

Length
N/A

Number of Input Station
N/A

Number of Cut-Off Pieces
N/A

Remnant Length
N/A

Machine Dimensions (W x L x H)
Head-Up Position
291.6″ x 192.7″ x 208.9″
7407 x 4895 x 5307 mm
291.6″ x 192.7″ x 208.9″
7407 x 4895 x 5307 mm
291.6″ x 192.7″ x 169.8″
7407 x 4895 x 4314 mm

Head Down Position
291.6″ x 192.7″ x 169.8″
7407 x 4895 x 4314 mm

Table Height
31.9″
810 mm

Machine Weight
66,200 lbs
30,000 kg
