Amada H2116II Horizontal Semi-Automatic Billet Sawing Machine
EN - Demande d'information

Amada H2116II Horizontal Semi-Automatic Billet Sawing Machine

Amada H2116II horizontal and high-performance semi-automatic billet bandsaw for billets and metal cutting. 20 HP semi-automatic sawing machine with a 3" blade, chip conveyor, CNC Lite cutting control, motion detector, light beam marking, variable blade running speed drive, cutting depth control and vibration prevent roller.
Quote request
A multidisciplinary team to accompany you in your projects
A remarkable After-Sales Support
Unrivaled quality and a customized product
Categories: ,

Features

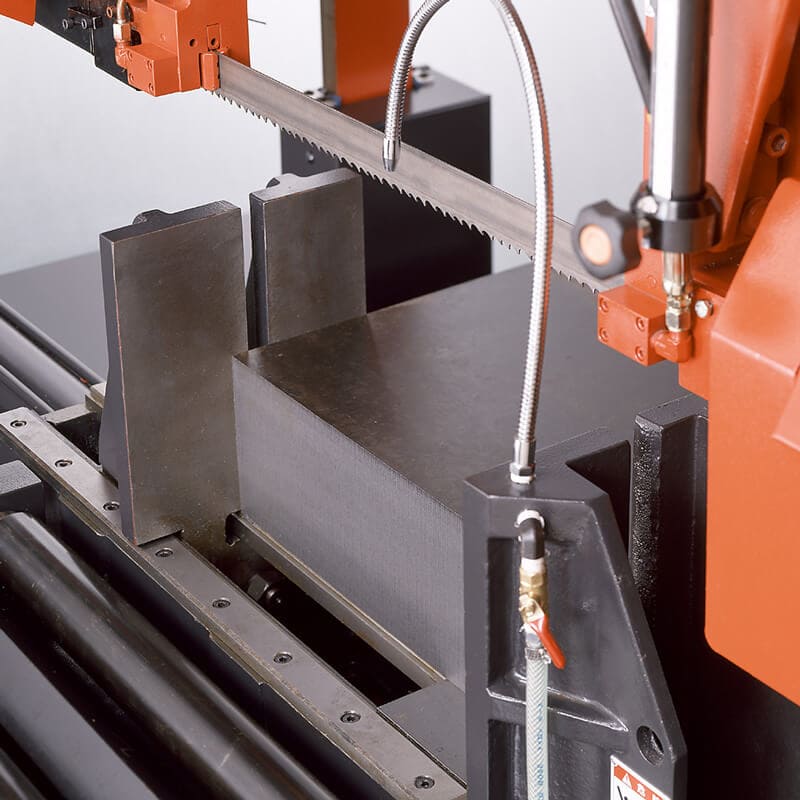

  • Hydraulic Vise
    • Prevents material movement while sawing
    • Easy set-up
    • Positive clamping on the full range of capacity
  • Dual Cut Control System
    • Combines with fine feed roller for accurate material indexing
    • Quick and easy set-up
    • Blade feed controlled by both pressure and flow
    • Maximum blade life in all cutting applications
    • Easy set-up with reference cutting rate system
  • Semi-Automatic Indexing
  • Quick and easy indexing with fine feed roller

Technical Specifications

Model H2116II
Imperial Metric
Cutting Capacity Round (Diameter) 23.62″ – 63″ 600 – 1600 mm 23.62″ – 63″
600 – 1600 mm		 23.62″ x 23.62″ – 82.68″ x 63″
600 x 600 mm – 2100 x 1600 mm
Rectangle (W x H) 23.62″ x 23.62″ – 82.68″ x 63″ 600 x 600 mm – 2100 x 1600 mm
Work Load Capacity 88,200 lbs 40,000 kg
Saw Blade Blade Size (L x T x W) 54’2″ x 0.063″ x 3″ 16500 x 1.6 x 80 mm 54’2″ x 0.063″ x 3″
16500 x 1.6 x 80 mm		 39.4 – 196.8 ft/min by Inverter
12-60 m/min by Inverter		 Hydraulic
Blade Speed 39.4 – 196.8 ft/min by Inverter 12-60 m/min by Inverter
Tension Control Hydraulic

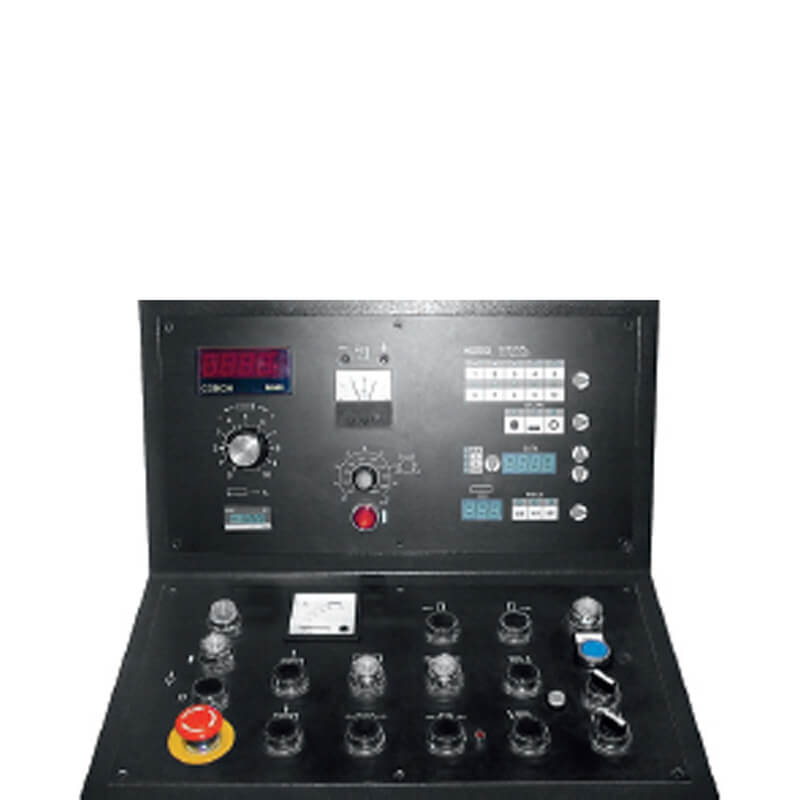

Blade Control Cutting Control CNC-Light, Hydraulic Flow Control Valve with Stepping Motor CNC-Light, Hydraulic Flow Control Valve with Stepping Motor Automatic Setting with Quick Approach Feeler
Top Limit Setting Automatic Setting with Quick Approach Feeler
Vise Operation Type Single Vise Single Vise Hydraulic Full-Stroke Cylinder
Control Hydraulic Full-Stroke Cylinder
Motors Saw Blade 20 HP 15 kW 20 HP
15 kW		 7.5 HP
5.5 kW		 1/4 HP
0.4 kW
Hydraulic Pump 7.5 HP 5.5 kW
Cutting Fluid Pump 1/4 HP 0.4 kW
Power Requirement Power Supply Voltage AC220V±10%, 3 PH, 60 Hz - All Other Voltages Require Transformer AC220V±10%, 3 PH, 60 Hz - All Other Voltages Require Transformer 32 kVA
Power Requirement 32 kVA
Cutting Fluid Tank Capacity 92 gal 350 liters 92 gal
350 liters		 Électric
Pump Type Électric
Hydraulic Tank Capacity 66 gal 250 liters 66 gal
250 liters		 1045 psi
7.5 MPa (73.5 kgf/cm2)
Pressure Setting 1045 psi 7.5 MPa (73.5 kgf/cm2)
Chip Disposal Chip Conveyor
Material Index Index Mechanism Table Feed, Manual Operation Table Feed, Manual Operation 70.9″ by Hydraulic
1800 mm by Hydraulic		 N/A N/A N/A N/A
Stroke 70.9″ by Hydraulic 1800 mm by Hydraulic
Length N/A
Number of Input Station N/A
Number of Cut-Off Pieces N/A
Remnant Length N/A
Machine Dimensions (W x L x H) Head-Up Position 311.5 x 190 x 207.7″ 7912 x 4810 x 5276 mm 311.5 x 190 x 207.7″
7912 x 4810 x 5276 mm		 311 x 190 x 169.8″
7912 x 4810 x 4314 mm
Head Down Position 311 x 190 x 169.8″ 7912 x 4810 x 4314 mm
Table Height 32.5″ 825 mm
Machine Weight 66,200 lbs 30,000 kg
