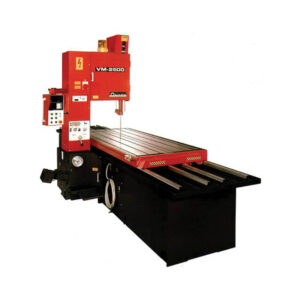

Amada VM2500 vertical bandsaw for the precise cutting of blocks & plates in all material grades. 7.5 H.P. Sawing machine with a 2" blade and with chip conveyor, cutting length control, hydraulic Blade Guides and remote Blade Guide Setting.
This metal band saw is applied as long cut saw for small lots and singlepieces. The clamping on the hydraulically moveable table works even smoothly with bulky work-pieces. The VM series is suitable for the use of carbide blades. We recommend the use of AMADA bandsaw blades.
| Model | VM2500 & VM2500WT | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| VM2500 | VM2500WT | ||||||||||
| Cutting Capacity (L x H) | 99″ x 20″ 2515 x 508 mm |
||||||||||
| Throat Depth | 20″ 508 mm |
40″ 1016 mm |
|||||||||
| Work Load Capacity | 11,025 lbs 5,000 kg |
||||||||||
| Saw Blade | Blade Size (L x T x W) | 15’4″ x 0.063″ x 2″ 4670 x 1.6 x 54 mm |
19’5.5″ x 0.063″ x 2″ 5930 x 1.6 x 54 mm |
||||||||
| Blade Size (L x T x W) | 15’4″ x 0.063″ x 2″ 4670 x 1.6 x 54 mm |
19’5.5″ x 0.063″ x 2″ 5930 x 1.6 x 54 mm |
|||||||||
| Blade Speed | 33-295 ft/min by Inverter 10-90 m/min by Inverter |
||||||||||
| Tension Control | Hydraulic | ||||||||||
| Blade Control | Cutting Control | AC Servo Motor | |||||||||
| Motors | Saw Blade | 7.5 HP 5.5 kW |
1 HP 0.75 kW |
1/4 HP 0.18 kW |
3/4 HP 0.5 kW |
1/8 HP 0.09 kW |
|||||
| Hydraulic Pump | 1 HP 0.75 kW |
||||||||||
| Cutting Fluid Pump | 1/4 HP 0.18 kW |
||||||||||
| Table Feed Motor | 3/4 HP 0.5 kW |
||||||||||
| Wire Brush | 1/8 HP 0.09 kW |
||||||||||
| Power Requirement | Power Supply Voltage | AC220V±10%, 3 PH, 60 Hz - All Other Voltages Require Transformer | 11 kVA | ||||||||
| Power Requirement | 11 kVA | ||||||||||
| Cutting Fluid | Tank Capacity | 27.7 gal 105 litres |
Electric | ||||||||
| Pump Type | Electric | ||||||||||
| Hydraulic | Tank Capacity | 2.6 gal 10 litres |
498 psi 3.5 MPa (35 kgf/cm2) |
||||||||
| Pressure Setting | 498 psi 3.5 MPa (35 kgf/cm2) |
||||||||||
| Chip Disposal | Chip Conveyor | ||||||||||
| Feed | Mechanism | Table Feed, AC Servo Motor with Rack and Pinion | 100.4″ 2550 mm |
||||||||
| Stroke | 100.4″ 2550 mm |
100.4″ 2550 mm |
|||||||||
| Machine Dimensions (W x L x H) | 79.5″ x 230.8″ x 96.5″ 2020 x 5863 x 2450 mm |
103.5″ x 230.8″ x 96.5″ 2629 x 5863 x 2450 mm |
|||||||||
| Table Height | 39.6″ 1005 mm |
39.6″ 1005 mm |
|||||||||
| Machine Weight | 12,128 lbs 5,500 kg |
12,128 lbs 5,500 kg |
|||||||||
