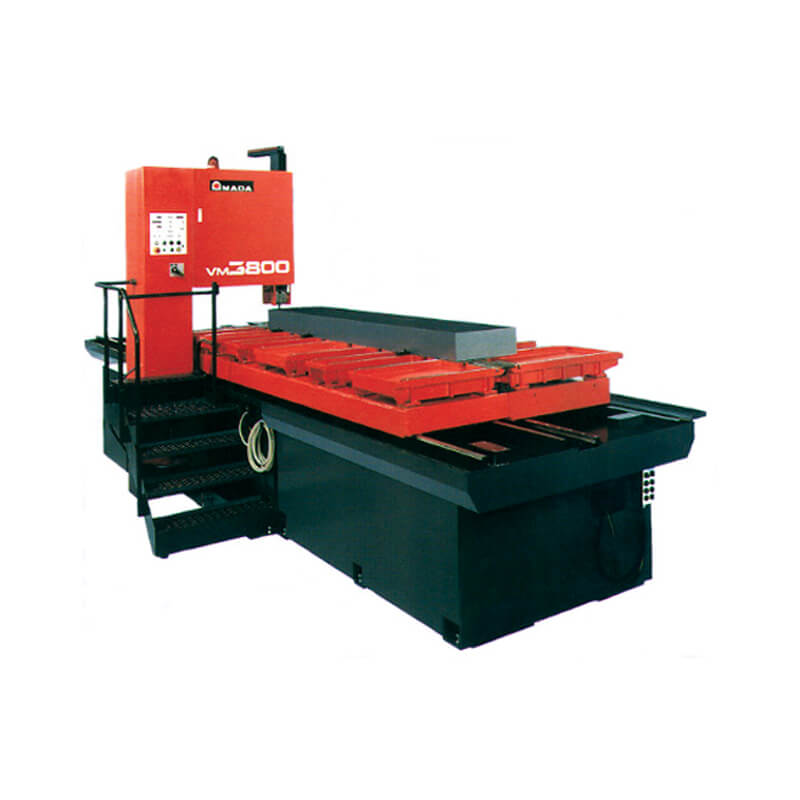

Amada VM3800 NC vertical bandsaw for the precise cutting of blocks & plates in all material grades. 10 HP Sawing machine with a 2-5/8" blade and with indexing table, manual servo controlled AC motor table feed, variable blade speed drive, work height sensor and work stopper.
This metal band saw is applied as long cut saw for small lots and singlepieces. The clamping on the hydraulically moveable table works even smoothly with bulky work-pieces. The VM series is suitable for the use of carbide blades. We recommend the use of AMADA bandsaw blades.
| Model | VM3800 & VM3800WT | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| VM3800 | VM3800WT | ||||||||||
| Cutting Capacity (L x H) | 149.6″ x 23.6″ 3800 x 600 mm |
149.6″ x 40″ 3800 x 1016 mm |
|||||||||
| Throat Depth | 31.5″ 800 mm |
60″ 1524 mm |
|||||||||
| Work Load Capacity | 26,460 lbs 12,000 kg |
33069 lbs 15000 kg |
|||||||||
| Saw Blade | Blade Size (L x T x W) | 21’0″ x 0.063″ x 2-5/8″ 6400 x 1.6 x 67 mm |
31’8″ x 0.063″ x 2-5/8″ 9650 x 1.6 x 67 mm |
||||||||
| Blade Size (L x T x W) | 15’4″ x 0.063″ x 2″ 4670 x 1.6 x 54 mm |
19’5.5″ x 0.063″ x 2″ 5930 x 1.6 x 54 mm |
|||||||||
| Blade Speed | 33-262 ft/min by Inverter 10-80 m/min by Inverter |
||||||||||
| Tension Control | Hydraulic | ||||||||||
| Blade Control | Cutting Control | Servomoteur CA | |||||||||
| Motors | Saw Blade | 10 HP 7.5 kW |
2 HP 1.5 kW |
1/4 HP 0.18 kW |
1 HP 0.75 kW |
1/8 HP 0.09 kW |
|||||
| Hydraulic Pump | 2 HP 1.5 kW |
||||||||||
| Cutting Fluid Pump | 1/4 HP 0.18 kW |
||||||||||
| Table Feed Motor | 1 HP 0.75 kW |
||||||||||
| Wire Brush | 1/8 HP 0.09 kW |
||||||||||
| Power Requirement | Power Supply Voltage | AC220V±10%, 3 PH, 60 Hz - All Other Voltages Require Transformer | 14 kVA | ||||||||
| Power Requirement | 14 kVA | ||||||||||
| Cutting Fluid | Tank Capacity | 47.5 gal 180 liters |
Electric | ||||||||
| Pump Type | Electric | ||||||||||
| Hydraulic | Tank Capacity | 3.96 gal 15 liters |
|||||||||
| Pressure Setting | 784 psi 5.5 MPa (35 kgf/cm2) |
797.8 psi 5.5 MPa (55 kgf/cm2) |
|||||||||
| Chip Disposal | Chip Conveyor | ||||||||||
| Feed | Mechanism | Table Feed, AC Servo Motor with Rack and Pinion | 151.6″ 3850 mm |
||||||||
| Stroke | 151.6″ 3850 mm |
||||||||||
| Machine Dimensions (W x L x H) | 105.4″ x 333.5″ x 124.3″ 2678 x 8472 x 3156 mm |
158.5″ x 333.5″ x 168″ 4024 x 8472 x 4268 mm |
|||||||||
| Table Height | 55.5″ 1005 mm |
||||||||||
| Machine Weight | 22,050 lbs 10,000 kg |
39,683 lbs 18,000 kg |
|||||||||
