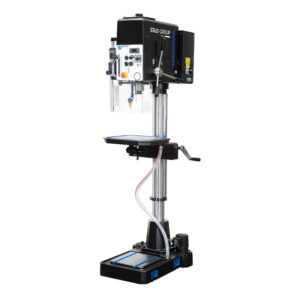

Erlo C Serie Round Column Drilling Machine with Manual Feed

Name: Erlo Serie C - Round Column Drilling Machine with Manual Feed
SKU: ERL-C
Availability: InStock

Round column drill with manual feed and transmission belts. Drilling capacity: 18-25-30 mm (0 45/64" - 0 63/64" - 1 3/16").

Quote request

A multidisciplinary team to accompany you in your projects

A remarkable After-Sales Support

Unrivaled quality and a customized product

SKU: ERL-C Categories: Drilling and Tapping Machines, Industrial Equipment

Print in PDF

Send by email

Documentation

ERLO Catalogue - EN

            	              		Round Column Drilling Machine with Manual FeedAvance manuelle
Manual feed
Transmission belts

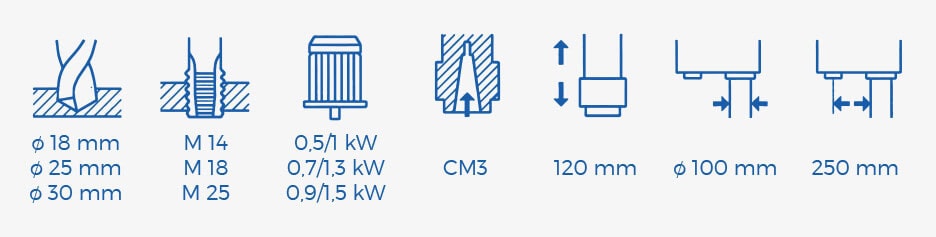

Column diameter: 100 mm
Distance from spindle to column: 250 mm
Moveable table and fixed bit
Drilling capacity: ⌀ 18-25-30 mm
Tapping capacity: M 14-18-25
Spindle cone: CM 3
Engine power: 0.68/1.4 | 0.95/1.8 | 1.2/2 HP
Num. and selections of speeds: (10) 245-4000 rpm
Drilling depth: 120 mm
Weight: 280 kg
Measurements: 655 x 400 x 1900 mm
Cooling equipment: Optional
Light equipment



            	              		Standard EquipmentAdjustable depth end
Lighting equipment
Tool ejector
Belt cover with stop micro
Motor guard and emergency push button
Emergency push button
Main switch
Turning sense selector
Electrical equipment at low voltage
Electrical equipment in a separate cabinet
Drill guard with stop micro
CE norms



            	              		Optional EquipmentFrontal wheel for fine sensitive feed
Speed digital reader (for models with variator)
Depth digital reader
Speed electronic variator
Tapping system IR/RS
Tapping system IR/RS (for models with variator)
Automatic tapping system by lead screw
Rotating table
Cycles counter (for models with hydroblock)
Column supplement
Hydroblock (includes the base and electric cabinets)
Coolant equipent in the base



            	              		Available ModelsC.18
C.25
C.30



            	              		Technical Specifications

MODEL
C.18
C.25
C.30


DRILLING CAPACITY IN STEEL OF 70 Kg. (mm)
18 mm
25 mm
30 mm

TAPPING CAPACITY IN STEEL OF 70 Kg.
M14
M18
M25

TRANSMISSION
V-BELT
COURROIES
COURROIES

SPEED NUMBER AND RANGE (WITHOUT VARIATOR) 50 HZ.
(10) 245 - 355 - 490 - 710 - 835 - 1.240 - 1.670 - 2.000 - 2.480 - 4.000 rpm.
(10) 245 - 355 - 490 - 710 - 835 - 1.240 - 1.670 - 2.000 - 2.480 - 4.000 rpm.
(10) 245 - 355 - 490 - 710 - 835 - 1.240 - 1.670 - 2.000 - 2.480 - 4.000 rpm.

SPEED NUMBER AND RANGE (WITH VARIATOR)
Variables A) 120-760 B) 170-1100 C) 400-2580 D )600-3800 E) 950-6000 rpm.
Variables A) 120-760 B) 170-1100 C) 400-2580 D )600-3800 E) 950-6000 rpm.
Variables A) 120-760 B) 170-1100 C) 400-2580 D )600-3800 E) 950-6000 rpm.

FEED
MANUAL
MANUAL
MANUAL

MAIN MOTOR POWER (WITHOUT VARIATOR) MOTOR 750/1500 rpm.
0,68/1,4 HP
0,95/1,8 HP
1,2/2 HP

MAIN MOTOR POWER (WITH VARIATOR) MOTOR 1000 rpm
1,5 HP
2 HP
2 HP

SPINDLE CONE
CM.3
CM.3
CM.3

SPINDLE STROKE
120 mm
120 mm
120 mm

SPINDLE STROKE WITH HYDROBLOCK
90 mm
90 mm
90 mm

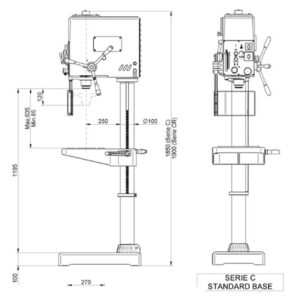

DISTANCE SPINDLE-COLUMN
250 mm
250 mm
250 mm


DISTANCE SPINDLE-TABLE
Min. 85 mm/ Max. 635 mm
Min. 85 mm/ Max. 635 mm
Min. 85 mm/ Max. 635 mm

DISTANCE SPINDLE-BASE
1195 mm
1195 mm
1195 mm

COLUMN DIAMETER
Ø100 mm
Ø100 mm
Ø100 mm

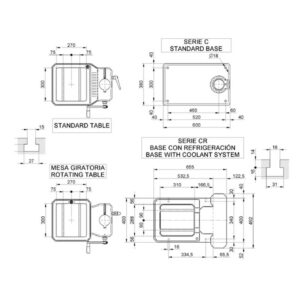

DIMENSIONS OF THE TABLE (WITH 2 T SLOTS)
270 x3 00 mm
270 x3 00 mm
270 x3 00 mm

DIMENSIONS OF THE BASE WITHOUT T SLOTS (WITHOUT COOLANT)
600 x 380 mm
600 x 380 mm
600 x 380 mm

DIMENSIONS OF THE BASE WITH 2 T SLOTS (WITH COOLANT)
665 x 400 mm
665 x 400 mm
665 x 400 mm

WEIGHT: NET / GROSS Kg.
260/320 Kg.
260/320 Kg.
260/320 Kg.

PACKAGING DIMENSIONS AND VOLUME
2110 x 570 x 800 / 0,97 m3
2110 x 570 x 800 / 0,97 m3
2110 x 570 x 800 / 0,97 m3




Sawing & Cutting Machines

Blades & Band Saws

Industrial Lubricants & Filtration

Tribofinishing & Deburring Machines

Industrial Equipment

Machine Safeguarding & Modular Machine Guards

Erlo C Serie Round Column Drilling Machine with Manual Feed

Documentation

Round Column Drilling Machine with Manual Feed

Standard Equipment

Optional Equipment

Available Models

Technical Specifications

You May Also Like

The Montfort Benefits

A multidisciplinary team to accompany you in your projects

Unrivaled quality and a customized product

A remarkable After-Sales Support

MODEL	C.18	C.25	C.30
DRILLING CAPACITY IN STEEL OF 70 Kg. (mm)	18 mm	25 mm	30 mm
TAPPING CAPACITY IN STEEL OF 70 Kg.	M14	M18	M25
TRANSMISSION	V-BELT			COURROIES	COURROIES
SPEED NUMBER AND RANGE (WITHOUT VARIATOR) 50 HZ.	(10) 245 - 355 - 490 - 710 - 835 - 1.240 - 1.670 - 2.000 - 2.480 - 4.000 rpm.			(10) 245 - 355 - 490 - 710 - 835 - 1.240 - 1.670 - 2.000 - 2.480 - 4.000 rpm.	(10) 245 - 355 - 490 - 710 - 835 - 1.240 - 1.670 - 2.000 - 2.480 - 4.000 rpm.
SPEED NUMBER AND RANGE (WITH VARIATOR)	Variables A) 120-760 B) 170-1100 C) 400-2580 D )600-3800 E) 950-6000 rpm.			Variables A) 120-760 B) 170-1100 C) 400-2580 D )600-3800 E) 950-6000 rpm.	Variables A) 120-760 B) 170-1100 C) 400-2580 D )600-3800 E) 950-6000 rpm.
FEED	MANUAL			MANUAL	MANUAL
MAIN MOTOR POWER (WITHOUT VARIATOR) MOTOR 750/1500 rpm.	0,68/1,4 HP	0,95/1,8 HP	1,2/2 HP
MAIN MOTOR POWER (WITH VARIATOR) MOTOR 1000 rpm	1,5 HP	2 HP	2 HP
SPINDLE CONE	CM.3			CM.3	CM.3
SPINDLE STROKE	120 mm			120 mm	120 mm
SPINDLE STROKE WITH HYDROBLOCK	90 mm			90 mm	90 mm
DISTANCE SPINDLE-COLUMN	250 mm			250 mm	250 mm
DISTANCE SPINDLE-TABLE	Min. 85 mm/ Max. 635 mm			Min. 85 mm/ Max. 635 mm	Min. 85 mm/ Max. 635 mm
DISTANCE SPINDLE-BASE	1195 mm			1195 mm	1195 mm
COLUMN DIAMETER	Ø100 mm			Ø100 mm	Ø100 mm
DIMENSIONS OF THE TABLE (WITH 2 T SLOTS)	270 x3 00 mm			270 x3 00 mm	270 x3 00 mm
DIMENSIONS OF THE BASE WITHOUT T SLOTS (WITHOUT COOLANT)	600 x 380 mm			600 x 380 mm	600 x 380 mm
DIMENSIONS OF THE BASE WITH 2 T SLOTS (WITH COOLANT)	665 x 400 mm			665 x 400 mm	665 x 400 mm
WEIGHT: NET / GROSS Kg.	260/320 Kg.			260/320 Kg.	260/320 Kg.
PACKAGING DIMENSIONS AND VOLUME	2110 x 570 x 800 / 0,97 m³			2110 x 570 x 800 / 0,97 m³	2110 x 570 x 800 / 0,97 m³
