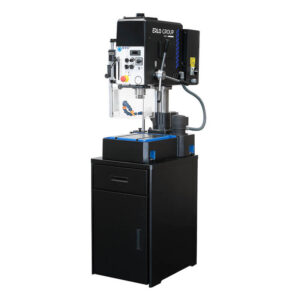

Erlo Série S Bench Type Drilling and Tapping Machine with Manual Feed

Name: Erlo Série S - Bench Type Drilling and Tapping Machine with Manual Feed
Brand: Erlo
SKU: ERL-S
Availability: InStock

Bench type drilling and tapping machine with manual feed and V-Belt drive. Drilling capacity : 18 - 25 - 30 mm (0 45/64" - 0 63/64" - 1 3/16"). Tapping capacity: M 14-18-25.

Quote request

A multidisciplinary team to accompany you in your projects

A remarkable After-Sales Support

Unrivaled quality and a customized product

SKU: ERL-S Categories: Drilling and Tapping Machines, Industrial Equipment

Print in PDF

Send by email

Documentation

ERLO Catalogue - EN

            	              		Benchtop Drilling Machine with Manual FeedFeed manual
Transmission belts
Column diameter: 100 mm
Distance from spindle to column: 250 mm
Fixed table, moveable and rotating bit

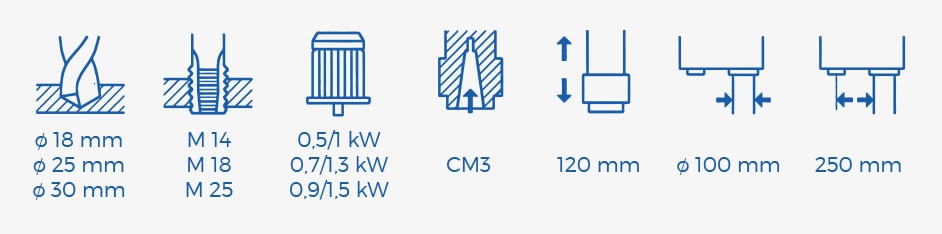

Drilling capacity: ⌀ 18-25-30 mm
Tapping capacity: M 14-18-25
Spindle cone: CM 3
Engine power: 0.68/1.4 | 0.95/1.8 | 1.2/2 HP
Num. and selections of speeds: (10) 245-4000 rpm
Drilling depth: 120 mm
Weight: 200 kg
Measurements: 630x490x950 mm
Cooling equipment: Opcional
Light equipment



            	              		Standard EquipmentTable/base with “T” slots
Adjustable depth end
Lighting equipment
Tool ejector
Belt cover with stop micro
Motor guard and emergency push button
Emergency push button
Main switch
Turning sense selector
Electrical equipment at low voltage
Electrical equipment in a separate cabinet
Drill guard with stop micro
CE norms



            	              		Optional EquipmentFrontal wheel for fine sensitive feed
Speed digital reader (for models with variator)
Depth digital reader
Speed electronic variator (includes the base and electric cabinets)
Tapping system IR/RS
Tapping system IR/RS (for models with variator)
Base cabinet with door and drawer (standard in models with variator and hydroblock)
Fixed intermediate table
Rotating intermediate table
Cycles counter (for models with hydroblock)
Column supplement
Hydroblock (includes the base and electric cabinets)
Coolant equipment in the base



            	              		Available ModelsS.18
S.25
S.30



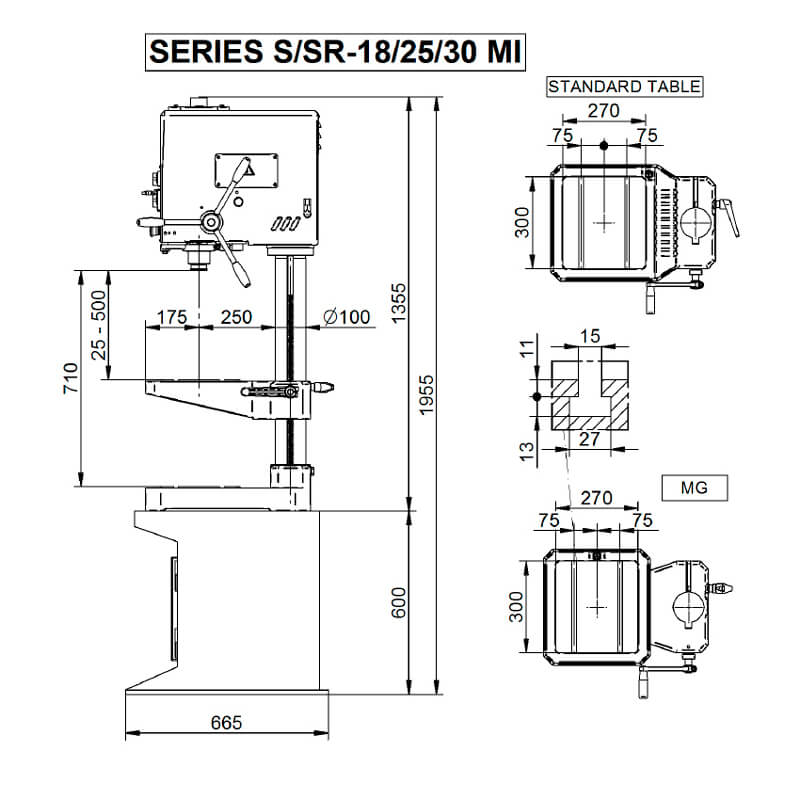

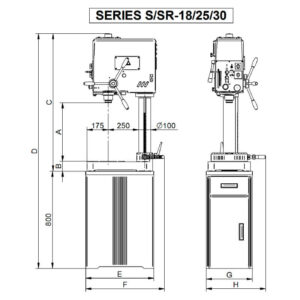

            	              		Technical Specifications

MODEL
S.18
S.25
S.30


DRILLING CAPACITY IN STEEL OF 70 Kg. (mm)
18 mm
25 mm
30 mm

TAPPING CAPACITY IN STEEL OF 70 Kg.
M14
M18
M25

TRANSMISSION
V-BELT
V-BELT
V-BELT

SPEED NUMBER AND RANGE (WITHOUT VARIATOR) 50 HZ.
(10) 245 - 355 - 490 - 710 - 835 - 1.240 - 1.670 - 2.000 - 2.480 - 4.000 rpm.
(10) 245 - 355 - 490 - 710 - 835 - 1.240 - 1.670 - 2.000 - 2.480 - 4.000 rpm.
(10) 245 - 355 - 490 - 710 - 835 - 1.240 - 1.670 - 2.000 - 2.480 - 4.000 rpm.

SPEED NUMBER AND RANGE (WITH VARIATOR)
VARIABLES A) 120-760 B) 170-1100 C) 400-2580 D) 600-3800 E) 950-6000 rpm.
VARIABLES A) 120-760 B) 170-1100 C) 400-2580 D) 600-3800 E) 950-6000 rpm.
VARIABLES A) 120-760 B) 170-1100 C) 400-2580 D) 600-3800 E) 950-6000 rpm.

FEED
MANUELLE
MANUELLE
MANUELLE

MAIN MOTOR POWER (WITHOUT VARIATOR) MOTOR 1500 rpm.
0,68/1,4 HP
0,95/1,8 HP
1,2/2 HP

MAIN MOTOR POWER (WITH VARIATOR) MOTOR 1000 rpm.
1,5 HP
2 HP
2 HP

SPINDLE CONE
CM.3
CM.3
CM.3

SPINDLE STROKE
120 mm
120 mm
120 mm

SPINDLE STROKE WITH HYDROBLOCK
90 mm
90 mm
90 mm

DISTANCE SPINDLE-COLUMN
250 mm
250 mm
250 mm

DISTANCE SPINDLE-TABLE (MODELS WITHOUT COOLANT)
Min. 155 mm/ Max. 485 mm
Min. 155 mm/ Max. 485 mm
Min. 155 mm/ Max. 485 mm

DISTANCE SPINDLE-TABLE (MODELS WITH COOLANT)
Min. 225 mm/ Max. 555 mm
Min. 225 mm/ Max. 555 mm
Min. 225 mm/ Max. 555 mm

COLUMN DIAMETER
Ø100 mm
Ø100 mm
Ø100 mm

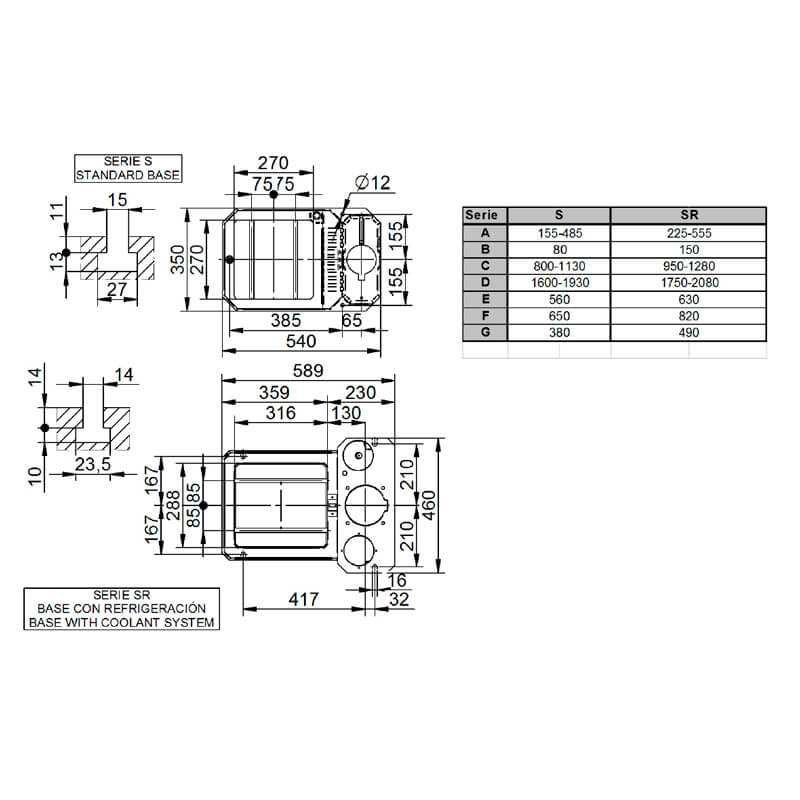

DIMENSIONS OF THE TABLE/BASE (WITHOUT COOLANT)
270x270 mm
270x270 mm
270x270 mm

DIMENSIONS OF THE TABLE/BASE (WITH COOLANT)
316x288 mm
316x288 mm
316x288 mm

WEIGHT: NET / GROSS Kg.
190 / 200 Kg.
190 / 200 Kg.
190 / 200 Kg.

PACKAGING DIMENSIONS AND VOLUME
700x570x1360 mm / 0,55 m3
700x570x1360 mm / 0,55 m3
700x570x1360 mm / 0,55 m3

WEIGHT: NET / GROSS KG. WITH BASE CABINET
240 / 260 Kg
240 / 260 Kg
240 / 260 Kg

PACKAGING DIMENSIONS AND VOLUME WITH BASE CABINET
1030x600x1950 mm / 1,21 m
1030 x 600 x 1950 mm / 1,21 m
1030 x 600 x 1950 mm / 1,21 m
