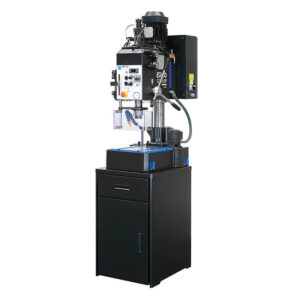

Erlo SHE Serie Automatic Benchtop Tapping and Drilling Machine

Name: Erlo Serie SHE - Automatic Benchtop Tapping and Drilling Machine
Brand: Erlo
SKU: ERL-SHE
Availability: InStock

Benchtop tapping and drilling machine with manual drilling feed, automatic tapping feed and transmission gears. Drilling capacity: 30 mm (1 3/16"). Tapping capacity: M 25.

Quote request

A multidisciplinary team to accompany you in your projects

A remarkable After-Sales Support

Unrivaled quality and a customized product

SKU: ERL-SHE Categories: Drilling and Tapping Machines, Machining Centers & Industrial Equipment

Print in PDF

Send by email

Documentation

ERLO Catalogue - EN

            	              		Benchtop Tapping Machine with Pattern Spindle Threading Automatic FeedFeed pattern spindle threading automatic
Manual drilling feed
Transmission gears

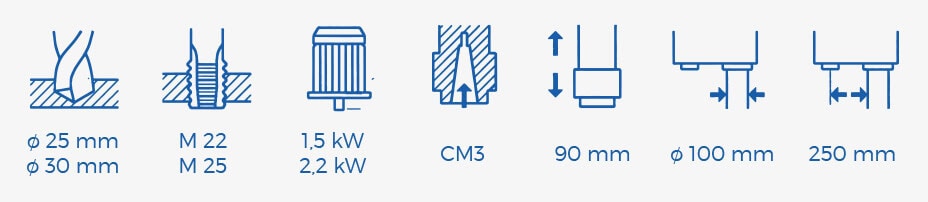

Column diameter: 100 mm
Distance from spindle to column: 250 mm
Fixed table, moveable and rotating bit
Tapping capacity: M 25
Spindle cone: CM 3
Engine power: 2 HP
Num. and selections of speeds: (8) 65 – 3060 rpm
Drilling depth: 90 mm
Weight: 300 kg
Cooling equipment: Optional
Light equipment



            	              		Standard EquipmentTable/base with “T” slots
Adjustable depth end
Lighting equipment
Tool ejector
1 lead screw included, pitch to be determined
Tapping cycle selection (1 cycle / continuous cycle)
Automatic or manual tapping selection
Adjustable ends and micros, for depth, turning and stop
Bracking device for variator
Emergency push button
Main switch
Turning sense selector
Electrical equipment at low voltage
Electrical equipment in a separate cabinet
Drill guard with stop micro
CE norms



            	              		Optional EquipementFrontal wheel for fine sensitive feed (only for SHE serie)
Depth digital reader
Lead screw, special pitch
Lead screw, standard pitch
Cycles counter
Fixed intermediate table
Rotating intermediate table
Column supplement
Cycle start foot switch
Non reversible tap holder, capacity M3 to M16 with locking nut
Coolant equipment



            	              		Available ModelsSHE.30
SHEA.30



            	              		Technical Specifications

MODEL
SHE.30
SHEA.30


TAPPING CAPACITY IN STEEL OF 70 Kg.
M25
M25

TRANSMISSION
GEARS (Hardened and grounded)
GEARS (Hardened and grounded)

SPEED NUMBER AND RANGE (WITHOUT VARIATOR).
(8) 65 - 125 - 185 - 365 - 540 - 1.055 - 1.560 - 3.060 rpm
(8) 65 - 125 - 185 - 365 - 540 - 1.055 - 1.560 - 3.060 rpm

DRILLING FEED
MANUELLE
AUTOMATIC

NUMBER AND RANGE OF FEEDS
-
(2) 0,10-0,20

MAIN MOTOR POWER MOTOR 1500 rpm.
2 HP
2 HP

SPINDLE CONE
CM.3
CM.3

MAXIMUM TAPPING DEPTH
90 mm
90 mm

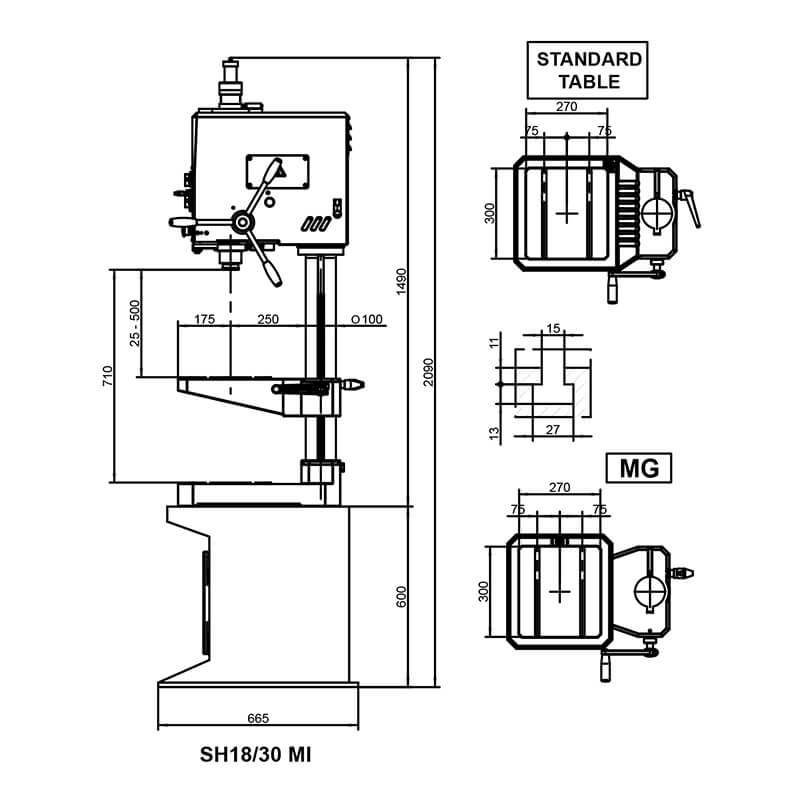

DISTANCE SPINDLE-COLUMN
250 mm
250 mm/td>


DISTANCE SPINDLE-TABLE (MODELS WITHOUT COOLANT)
Min. 155 / Max. 485 mm
Min. 155 / Max. 485 mm

DISTANCE SPINDLE-TABLE (MODELS WITH COOLANT)
Min. 225 / max. 555 mm
Min. 225 / max. 555 mm

COLUMN DIAMETER
Ø100 mm
Ø100 mm

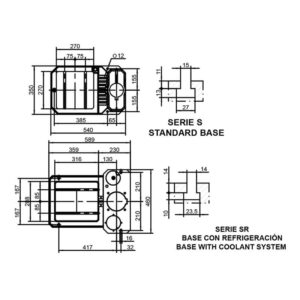

DIMENSIONS OF THE TABLE/BASE (WITHOUT COOLANT)
270 x 270 mm
270 x 270 mm

DIMENSIONS OF THE TABLE/BASE (WITH COOLANT)
316 x 288 mm
316 x 288 mm

WEIGHT: NET / GROSS Kg. WITH BASE CABINET
290 / 340 Kg
290 / 340 Kg

PACKAGING DIMENSIONS AND VOLUME WITH BASE CABINET
1100 x 700 x 2250 mm
1100 x 700 x 2250 mm
