| Code | |
|---|---|
| 10022 | LBC - Digital depth reader |
| 30084 | MGI - Tilting rotary table (for 35 models, standard for 40 models) |
| 20087 | MGM - Reversible tilting rotary table with clamp (only for 35 models) |
| 40100 | ACNL - Rapid approach and retraction with pneumatic counterweight (only for BZ models) |
| 30145 | CI - Comprehensive cycle with encoder (only for BZ models) |
| 10120 | HB - Automatic hydroblock cycle (only for SZ models) |
| 10110 | SC - 200mm column extension. |
| 91118 | ERB - Cooling equipment in base |

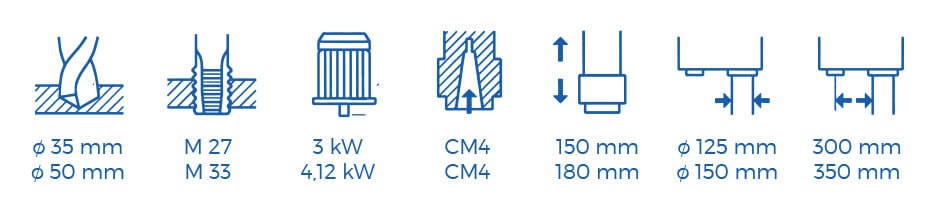

| Features | SZ 35 | AZ 35 | BZ 35 | SZ 40 | AZ 40 | BZ 40 |
|---|---|---|---|---|---|---|
| Maximum steel drilling capacity | 35 Ø mm | 40 Ø mm | ||||
| Maximum steel tapping capacity | M27 | M33 | ||||
| Morse cone | 4 Nr. | |||||
| Maximum spindle travel (drilling depth) | 150 mm | 175 mm | ||||
| Main motor power | 3 kw | 4,12 kw | ||||
| Transmission | Pulleys | |||||
| Number of speeds | Continuous | |||||
| Speed range with motor at 1500 rpm 50Hz 3HP | 100 - 2000 | |||||
| Feed | Manual | Automatic | Manual | Automatic | ||
| Number of automatic feeds | 3 (Automatic) | 3 (Automatic) | ||||

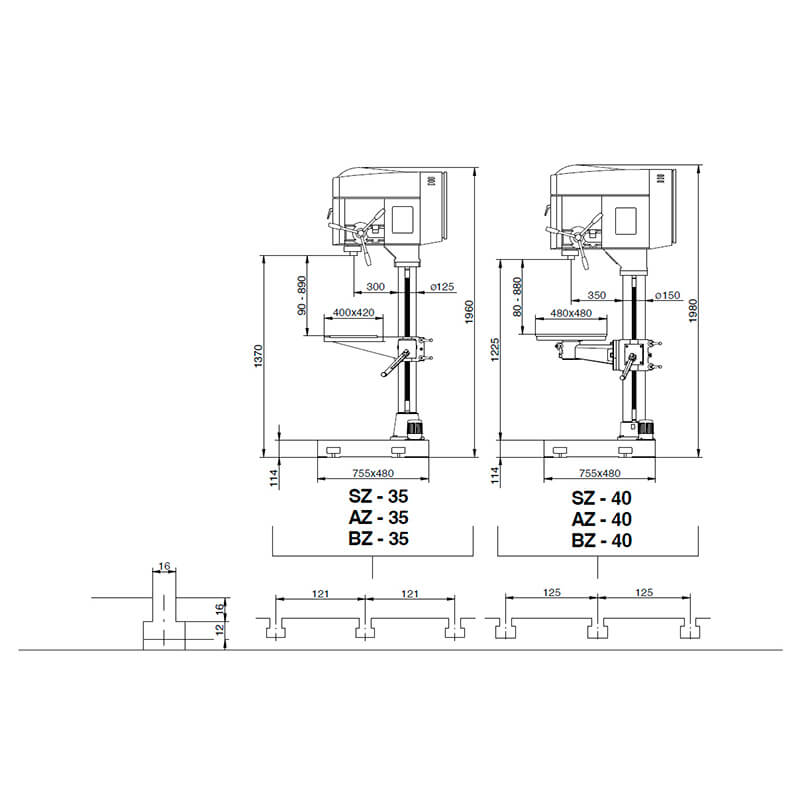

| Worktable dimensions (L x W) | 400 x 420 mm | 480 x 480 mm | ||||
| Column diameter | 125 mm | 150 mm | ||||
| Distance from the spindle centre to the face of the column | 300 mm | 350 mm | ||||
| Net weight | 345 kg | 360 kg | 370 kg | 445 kg | 460 kg | 470 kg |
| Gross weight with packaging | 395 kg | 410 kg | 420 kg | 495 kg | 510 kg | 520 kg |
| Packaging dimensions (length x width x height) | 2340 x 610 x 1160 mm | |||||
