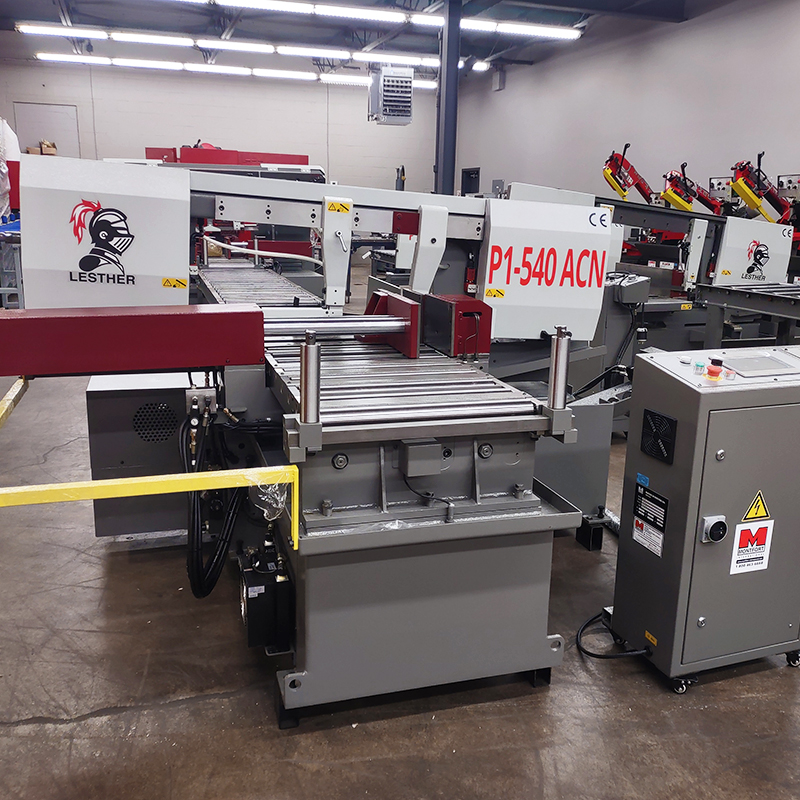

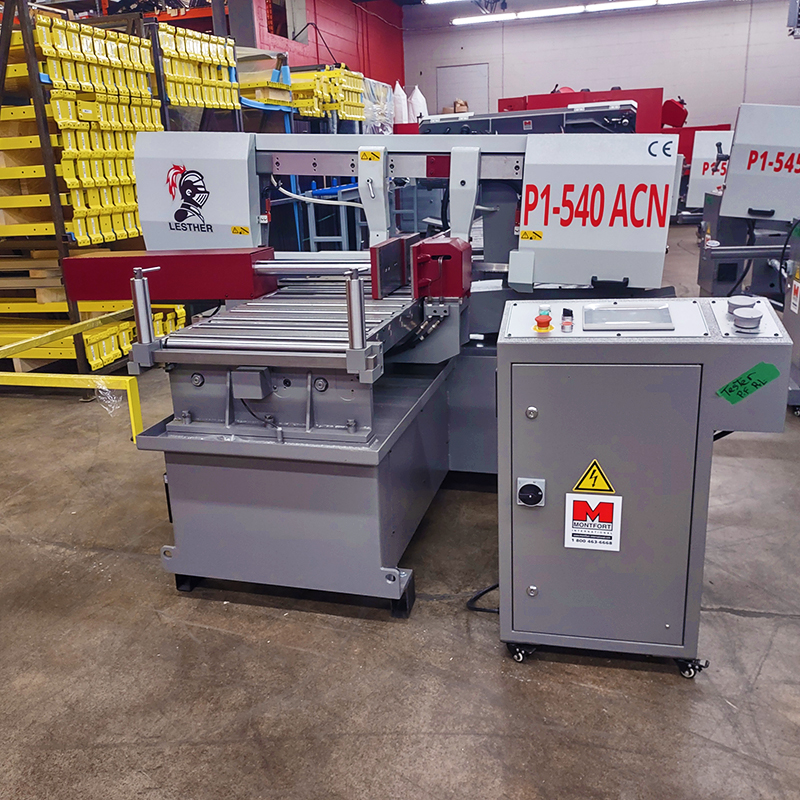

LESTHER P1-540 ACN Automatic Swivel Miter Cutting Bandsaw

Name: LESTHER P1-540 ACN Automatic Swivel Miter Cutting Bandsaw
Brand: Lesther
SKU: LES-F2-260AW-1-1
Availability: InStock

The Lesther P1-540ACN is an automatic swivel miter cutting bandsawing machine perfect for cutting cutting beams, pipes and solids.

Quote request

A multidisciplinary team to accompany you in your projects

A remarkable After-Sales Support

Unrivaled quality and a customized product

SKU: LES-F2-260AW-1-1 Categories: Sawing & Cutting Machines, Automatic Bandsaws

Print in PDF

Send by email

Documentation

LESTHER Catalogue - FR & EN

Automatic Miter Cutting Bandsaw

Our LESTHER brand offers you the P1-540ACN, a high-quality bandsawing machine for cutting metal and pipes bundles. Fully automatic, it comes with a hydraulic power roller feed vice and hydraulic vice clamping to help save the operator time and energy and increase blade life.

Features

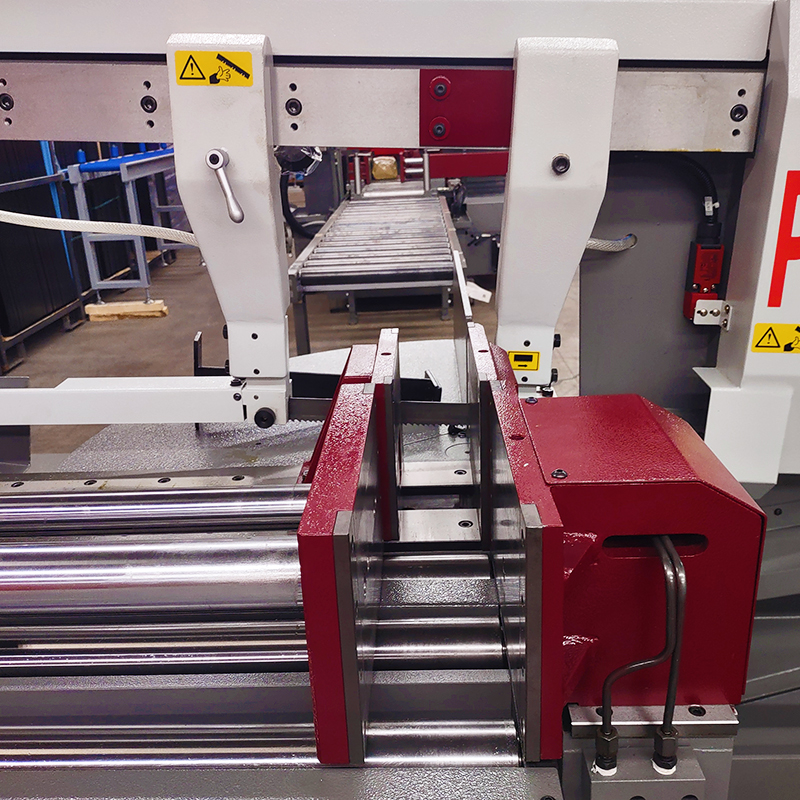

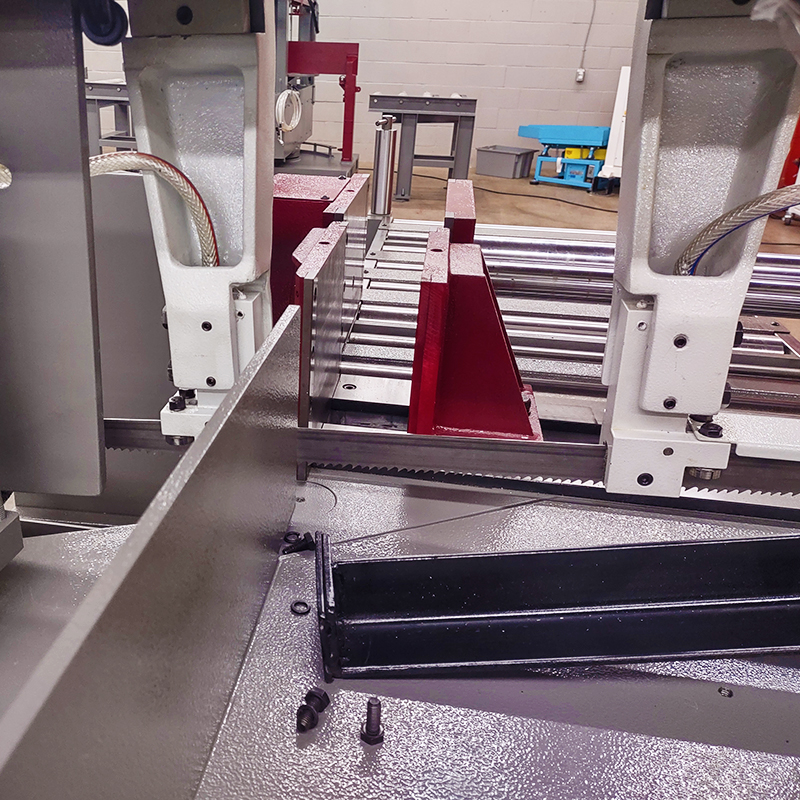

Hydraulic vice clamping which saves the operator time and energy and increases blade life.
Full automatic cutting with hydraulic power roller feed vice
Easily set angle to 45° for miter cutting using a swivel head.
500mm single feed stroke or 4,500mm maximum feed stroke.
Variable blade speed control

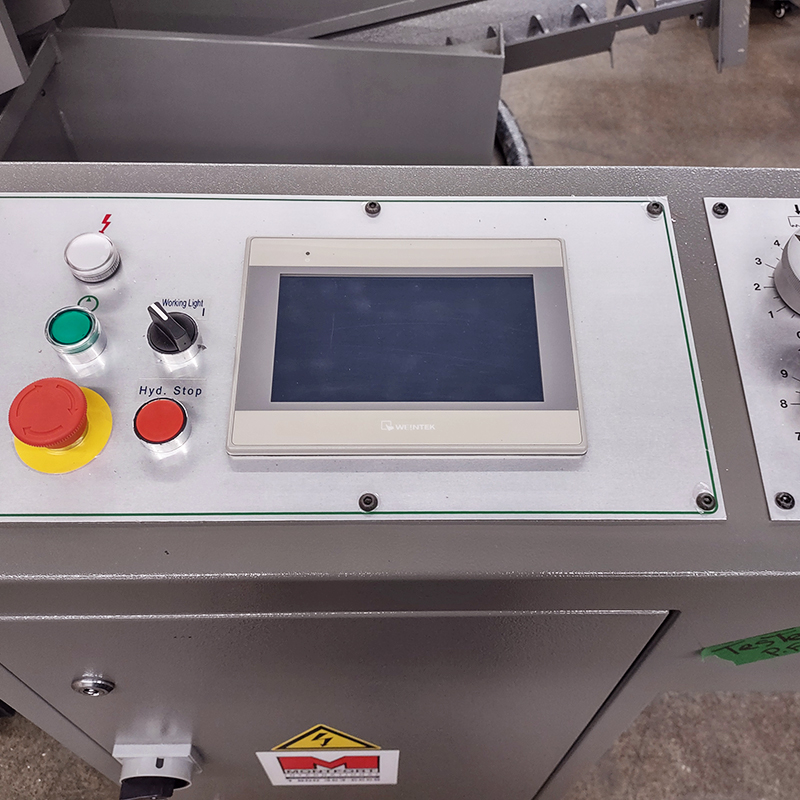

PLC control system.
Roller feed bed.

Standard Equipment

Variable blade speed
Automatic chip conveyor
PLC control system

Optional Equipment

2M roller table
NC control system
Nesting fixture
Hydraulic blade tension
Vise pressure regulator

Technical Specifications

Model		P1-540ACN
Cutting Capacity (mm)	90°	330, 320 x 530
Cutting Capacity (mm)	▬ 90°	45°	320, 320 x 350
Main Motor		3.75 KW
Blade size		180" x 1-1/4" x 0.42" (4,570 x 34 x 1.1 mm)
Blade speed (M/min)		25-95
Single Feed Stroke (mm)		500
Packing Dimensions (m)		2.3 x 2.5 x 1.4
