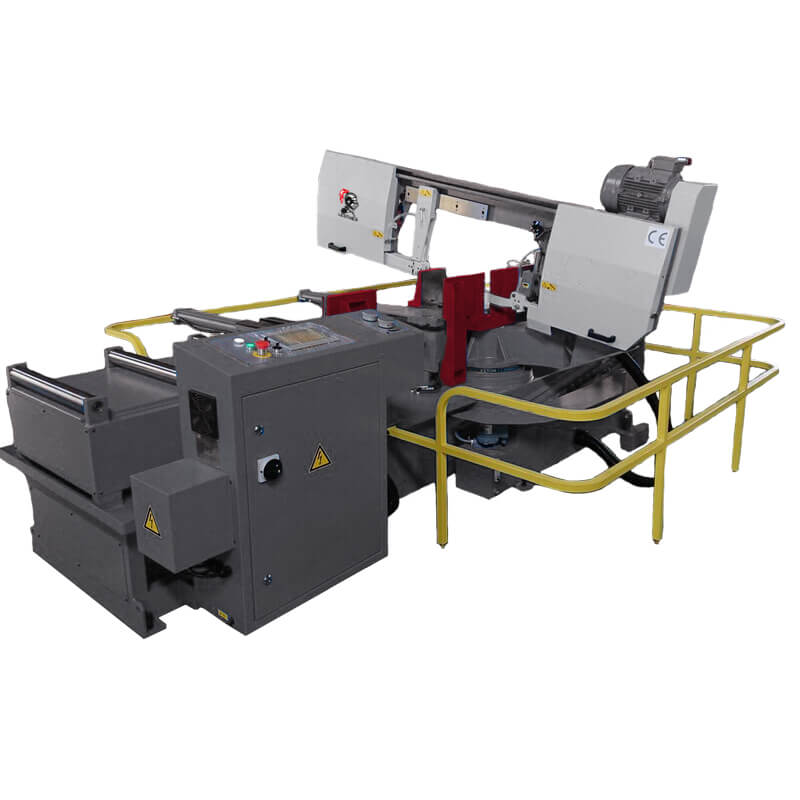

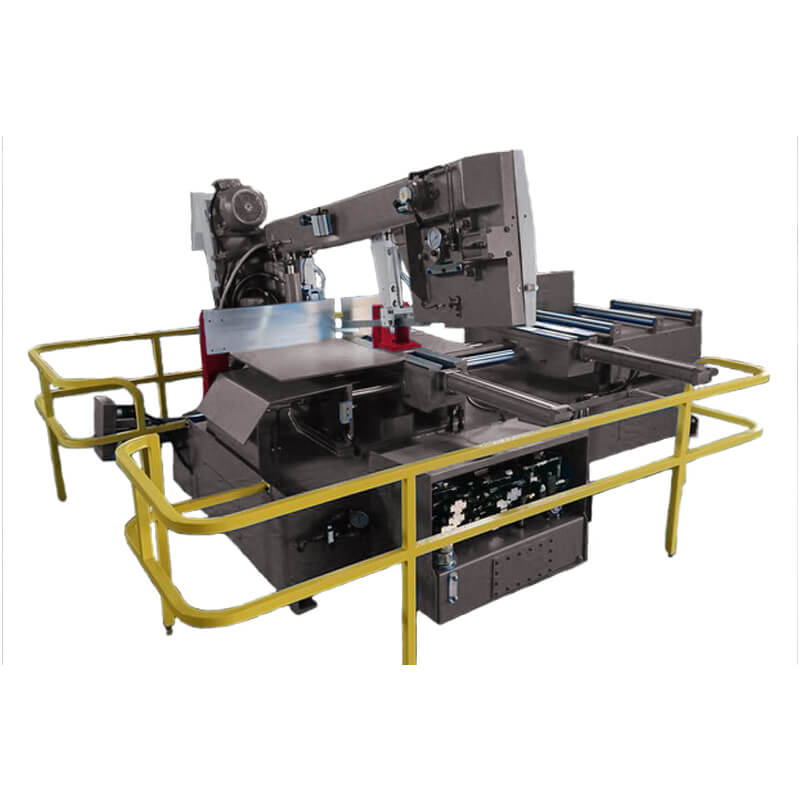

LESTHER P2-500DMA Bandsawing Machine

Name: LESTHER P2-500DMA - Automatic CNC Bandsaw - Double Miter Sawing
Brand: Lesther
SKU: LES-P2-500DMA
Availability: InStock

The Lesther P2-500DMA is an automatic double miter sawing machine with Computer Numerical Control (CNC) and hydraulic feed vice. It is perfectly designed for frequent changes of straight and miter cuts stepless from +30° to -45° in both directions.

Quote request

A multidisciplinary team to accompany you in your projects

A remarkable After-Sales Support

Unrivaled quality and a customized product

SKU: LES-P2-500DMA Categories: Sawing & Cutting Machines, Automatic Bandsaws

Print in PDF

Send by email

Documentation

LESTHER Catalogue - FR & EN

CNC Fully Automatic Feeding and Mitering Bandsawing Machine

Optimize your metalworking operations using our Lesther P2-500DMA, an automatic double miter sawing machine with Computer Numerical Control (CNC). Our Lesther P2-500DMA is perfect for frequent changes of straight and miter cuts stepless from +30° to -45° in both directions. Equipped with hydraulic feed vice and inverter blade speed drive

Features

10" touch panel CNC control
Variable Blade Speed
For frequent change of straight and miter cuts stepless from +30° to -45° on both directions
Automatic movement of vices in conjunction with automatic miter positionning accuracy of +/-0.1°
The accuracy of hydraulic length feed of material is +/0.15mm
Programming of cutting lengths, angles and number of pieces
Full automatic cutting system
Mist coolant system
Hydraulic feed vice

Standard Equipment

CNC with Touch screen control system
Variable blade speed device
Saw blade
Tools with tool box

Optional Equipment

2 meters Roller table

Technical Specifications

Model		P2-500DMA
Cutting Capacity (mm)	● 90°	325
	▬ 90°	▬ 90°	320 x 500
	▬ 45° LEFT	▬ 45° LEFT	320 x 350
	▬ 30° LEFT	▬ 30° LEFT	320 x 210
	▬ 45° RIGHT	▬ 45° RIGHT	320 x 350
Motors	Saw blade	2.25 KW
Motors	Hydraulic pump	Hydraulic pump	0.75 KW
Blade dimensions		187" x 1 - 1/4" x 0.42" (4755 x 34 x 1.1 mm)
Blade speed (M/min)		25-90
Single Feed Stroke (mm)		600
Working Height (mm)		650
Dimensions (mm)	Length	2860
	Width	Width	2280
	Height	Height	1810
Net Weight (approx.) kg		2300
