LESTHER P2-5030DMA Automatic CNC Bandsawing Machine

Name: LESTHER P2-5030DMA - Automatic CNC Double Miter Cutting Bandsaw
SKU: LES-P2-5030DMA
Availability: InStock

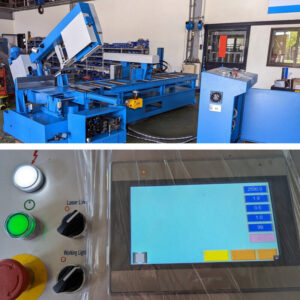

The Lesther P2-5030DMA is an automatic CNC double miter cutting bandsawing machine and is equipped with a servo feeder. For frequent change of straight and miter cuts stepless from +60° to -45° on both directions.

Quote request

A multidisciplinary team to accompany you in your projects

A remarkable After-Sales Support

Unrivaled quality and a customized product

SKU: LES-P2-5030DMA Categories: Sawing & Cutting Machines, Automatic Bandsaws

Print in PDF

Send by email

Documentation

LESTHER Catalogue - FR & EN

CNC Fully Automatic Feeding and Mitering Bandsawing Machine

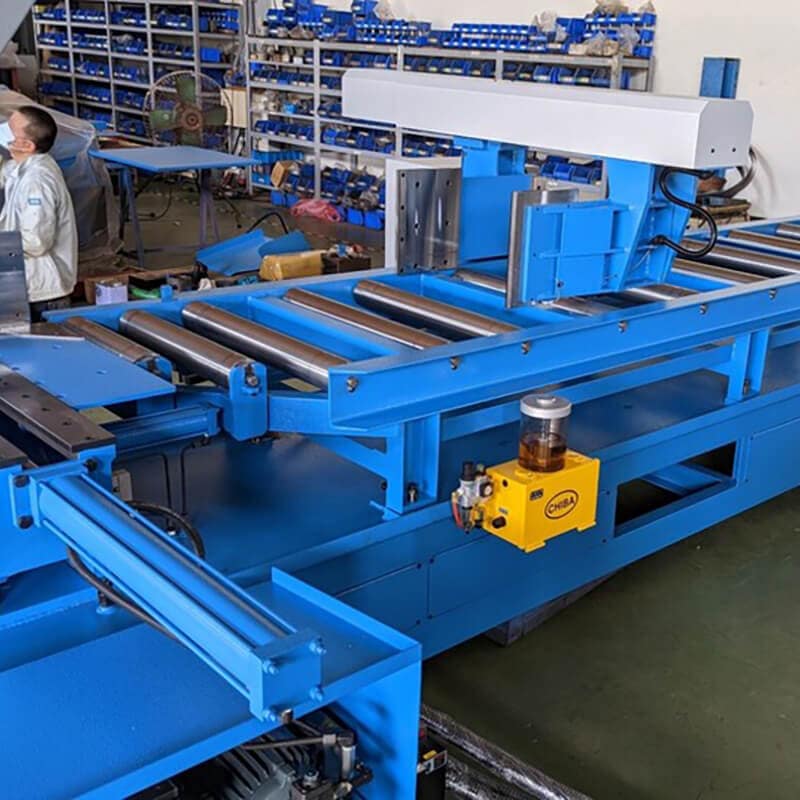

Speed up your factory's operations using our Lesther P2-5030DMA, an automatic double miter sawing machine with touch panel Computer Numerical Control (CNC). Our Lesther P2-5030DMA is equipped with a servo feeder and an inverter blade speed drive.

Features

10" touch panel CNC control
Inverter blade speed drive for models
For frequent change of straight and miter cuts steepless +60° to -45° on both directions
Automatic movement of vices in conjunction with automatic miter positionning accuracy of +/-0.1°
Programming of cutting lengths, angles and number of pieces.
Full automatic cutting system
Mist coolant system
Servo feeder

Technical Specifications

Model		P2-5030DMA
Cutting Capacity (mm)	● 90°	325
	▬ 90°	▬ 90°	320 x 500
	▬ 45° LEFT	▬ 45° LEFT	320 x 350
	▬ 30° LEFT	▬ 30° LEFT	320 x 210
	▬ 45° RIGHT	▬ 45° RIGHT	320 x 350
Motors	Blade	2.25 KW
Motors	Hydraulic Pump	Hydraulic Pump	0.75 KW
Blade size		187" x 1 - 1/4" x 0.42" (4755 x 34 x 1.1 mm)
Blade speed (M/min)		25-90
Single Feed Stroke (mm)		2500/4500 (Servo feed)
Working Height (mm)		650
Dimensions (mm)	Length	4800/6800
	Width	Width	2280
	Height	Height	1810
Net Weight (approx.) kg		3200/3500
