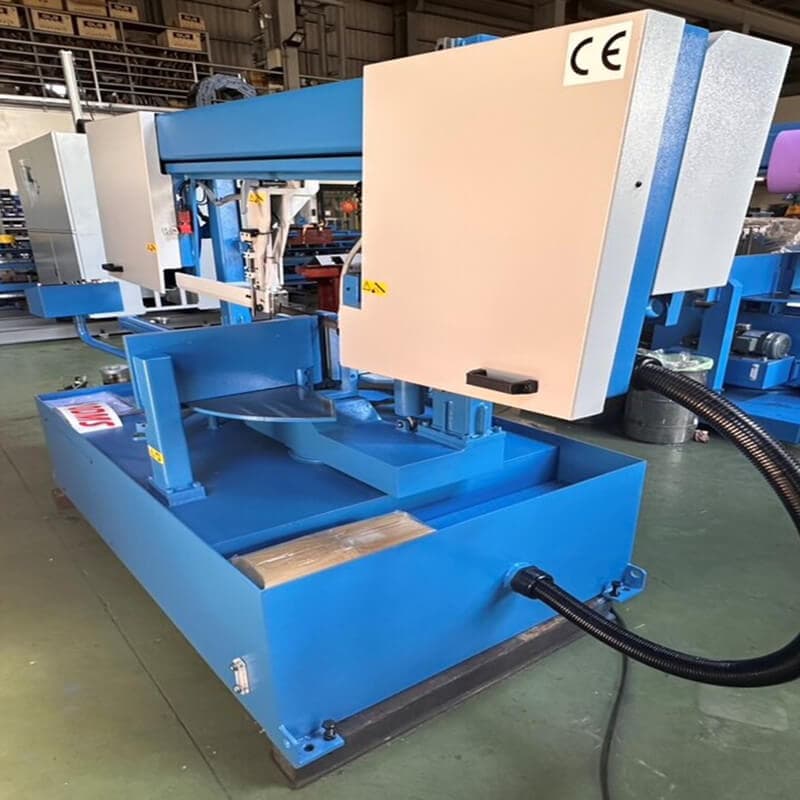

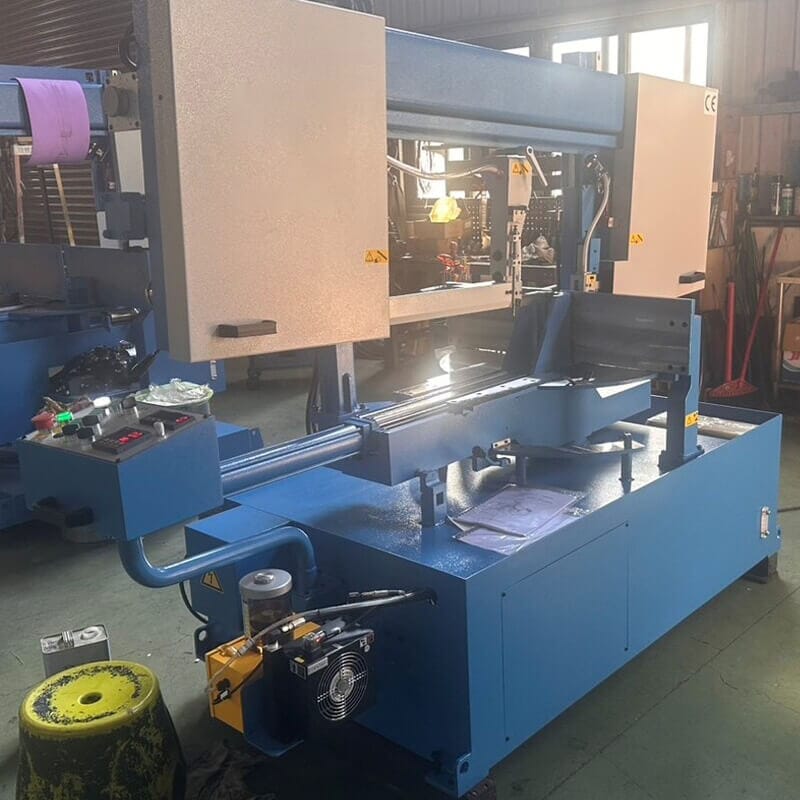

Optimize your sawing operations in your factories using our Lesther P2-610DM, a column type semi-automatic double miter sawing machine with Computer Numerical Control (CNC). For cutting any angle from 90° to 30° left and 90° to 45° right. Equipped with an adjustment of mitre manual with digital readout to 0.1° accuracy, it tilts the bandsaw blade by 4 degrees to minimize the initial blade impact when cutting beams.
| Model | P2-610DM | |
|---|---|---|
| Cutting Capacity (mm) | ● 90° | 420 |
| ■ 90° | ■ 90° | 400 x 600 |
| 45° Left | 45° Left | 400 x 400 |
| 30° Left | 30° Left | 400 x 225 |
| 45° Right | 45° Right | 400 x 400 |
| 30° Right | 30° Right | - |
| Motors | Saw blade | 3.75 KW |
| Hydraulic | Hydraulic | 0.75 KW |
| Coolant | Coolant | 0.1 KW |
| Brush | Brush | - |
| Blade size | 192" x 1/4" x 0.42" (4870 x 34 x 1.1 mm) |
|
| Blade speed (M/min) | 20-90 | |
| Vise Clamping Width (mm) | 60-625 | |
| Working Height (mm) | 715 | |
| Dimensions (mm) | Length | 1500 |
| Width | Width | 2700 |
| Height | Height | 2100 |
| Net Weight (approx.) kg | 1750 | |
