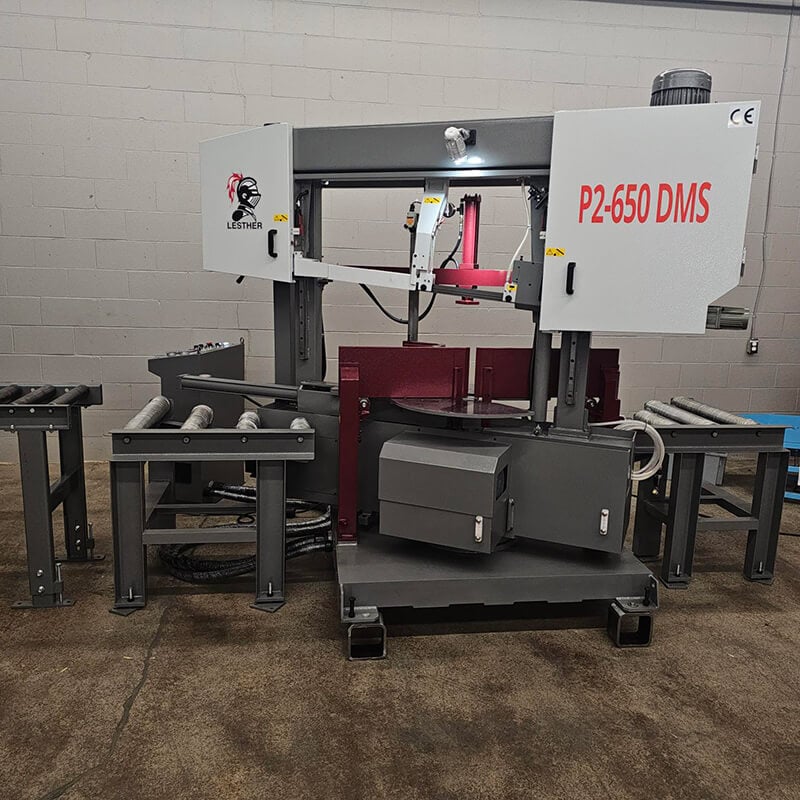

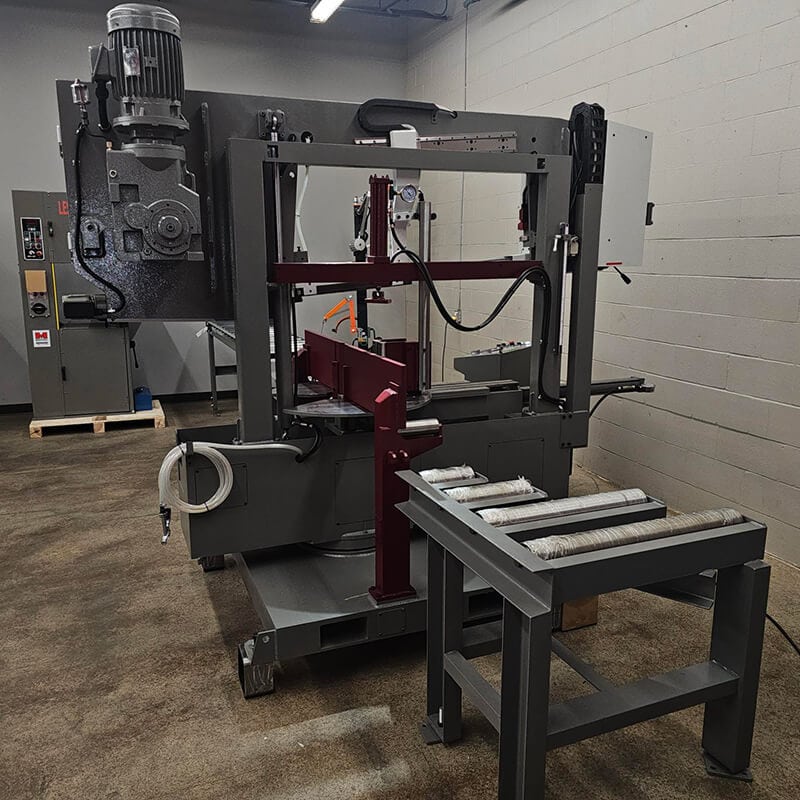

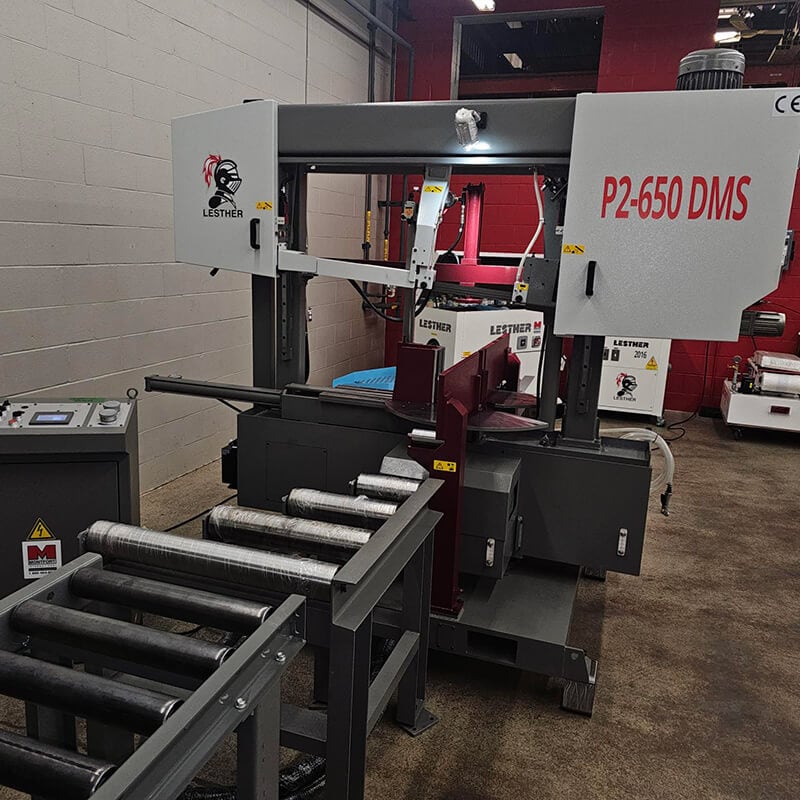

LESTHER P2-650DMS Column Type Semi-Auto Double Miter Cutting Bandsaw

Name: LESTHER P2-650DMS - Column Type Semi-Auto Double Miter Cutting Bandsaw
Brand: Lesther
SKU: LES-P2-650DMS
Availability: InStock

The Lesther P2-650DMS is a column type semi-automatic sawing machine for double miter cutting and beam cutting. Equipped with Computer Numerical Control (CNC), this sawing machine helps reduce the initial blade impact when cutting beams by tilting the bandsaw blade 5 degrees.

Quote request

A multidisciplinary team to accompany you in your projects

A remarkable After-Sales Support

Unrivaled quality and a customized product

SKU: LES-P2-650DMS Categories: Sawing & Cutting Machines, Semi-Automatic Bandsaws

Print in PDF

Send by email

Documentation

LESTHER Catalogue - FR & EN

Column Type CNC Semi-Automatic Double Miter Cutting Bandsaw

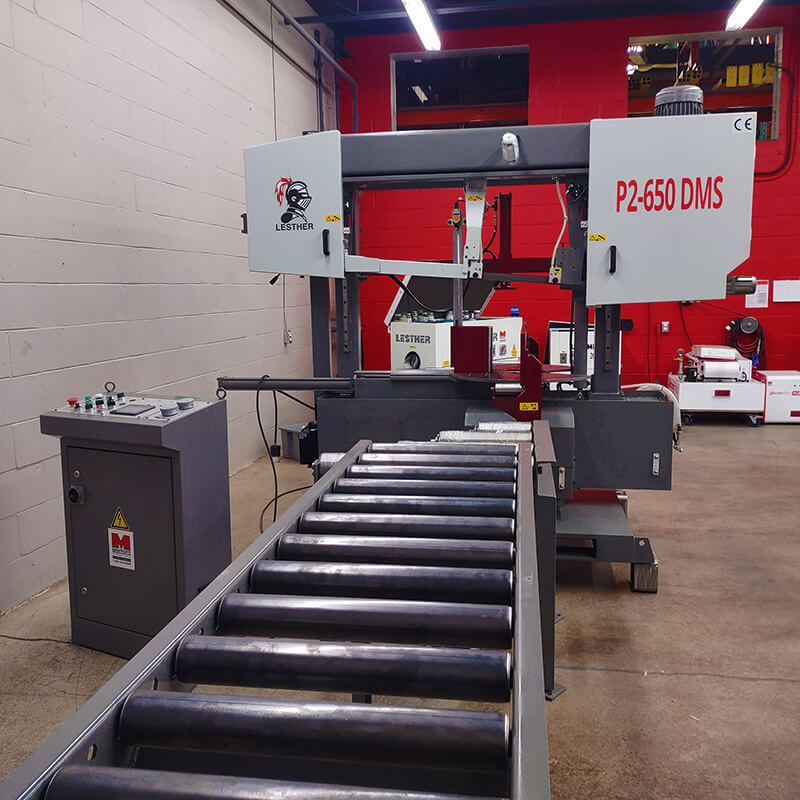

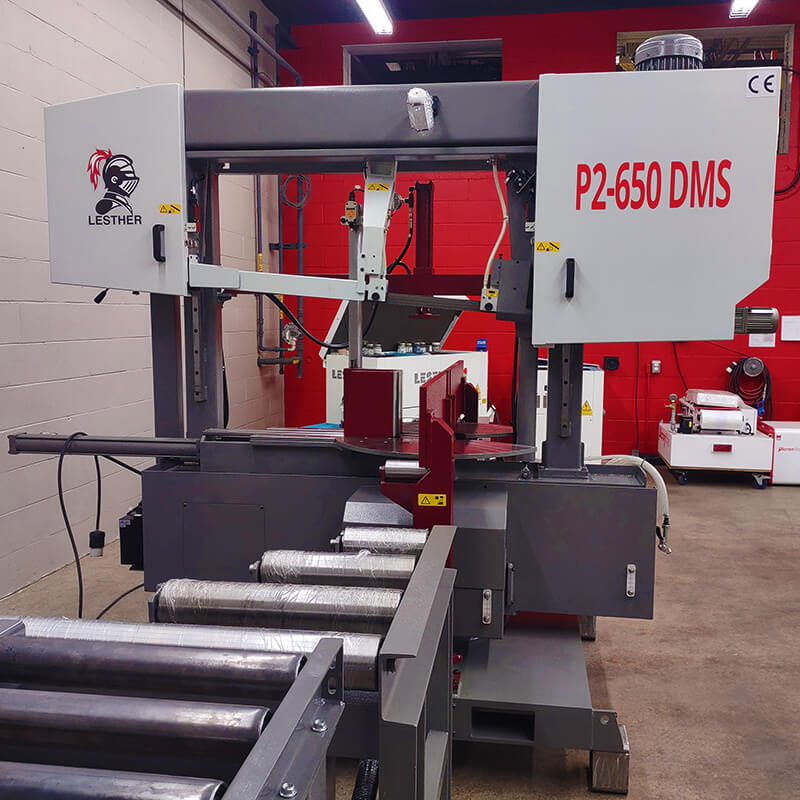

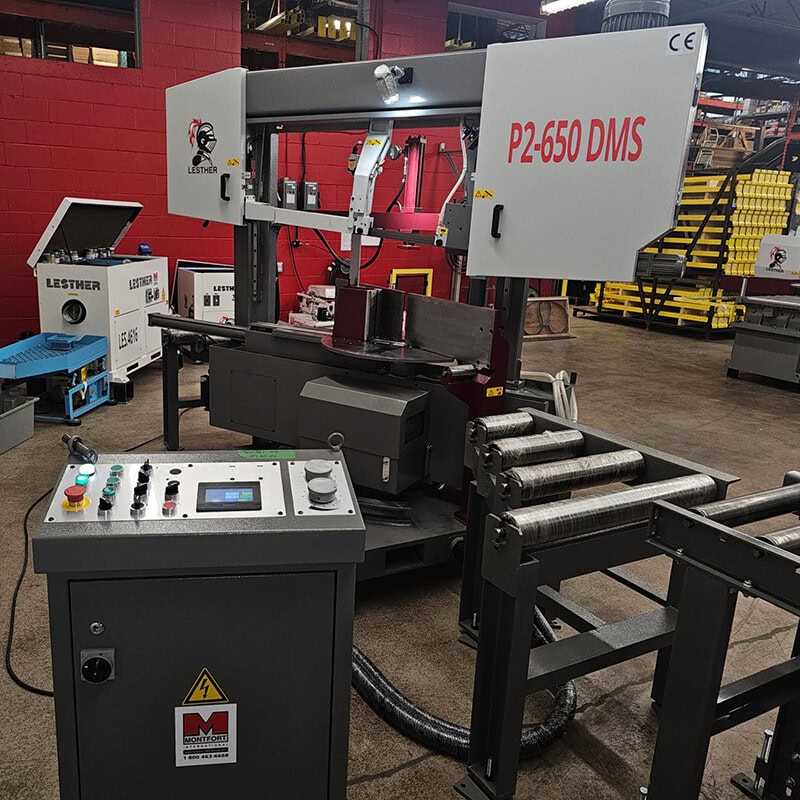

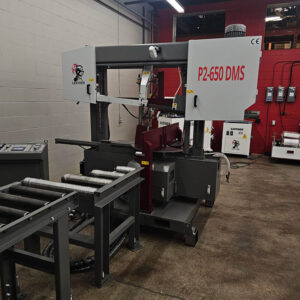

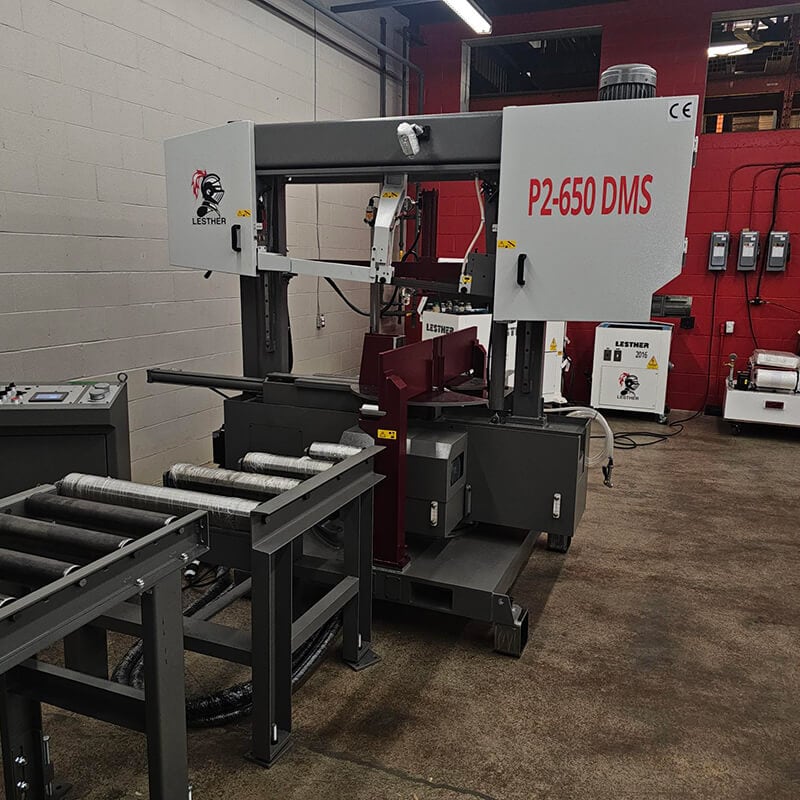

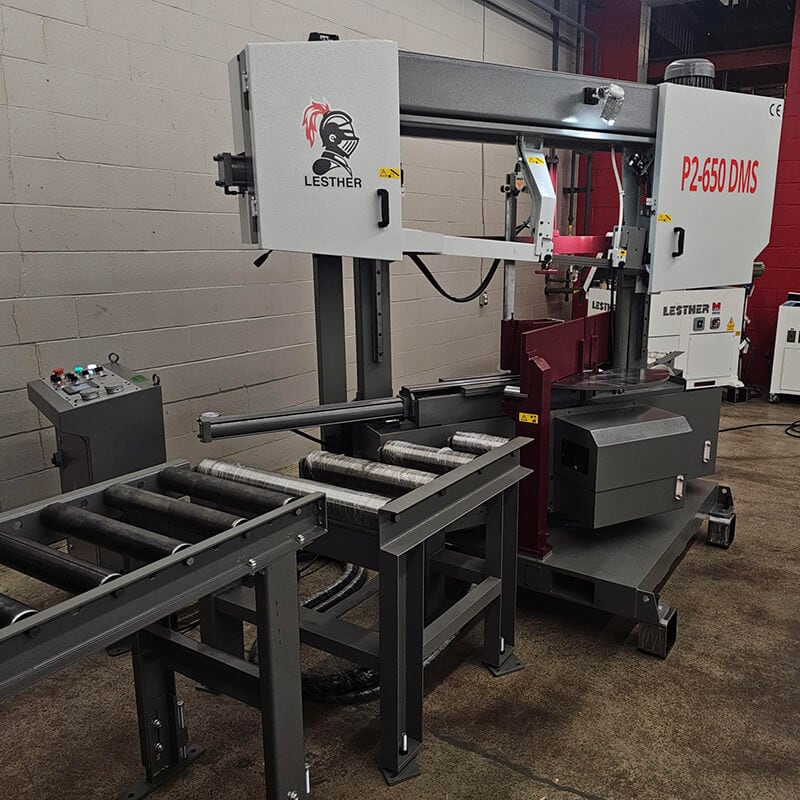

Optimize your metal working and sawing operations using our P2-650DMS by Lesther, a column type semi-automatic double miter sawing machine with Computer Numerical Control (CNC). For cutting any angle from 90° to 30° left and 90° to 30° right. Equipped with double columns with linear guideways, it tilts the bandsaw blade by 5 degrees to minimize the initial blade impact when cutting beams.

Features

For cutting any angle from 90° to 30° left and 90° to 30° right.

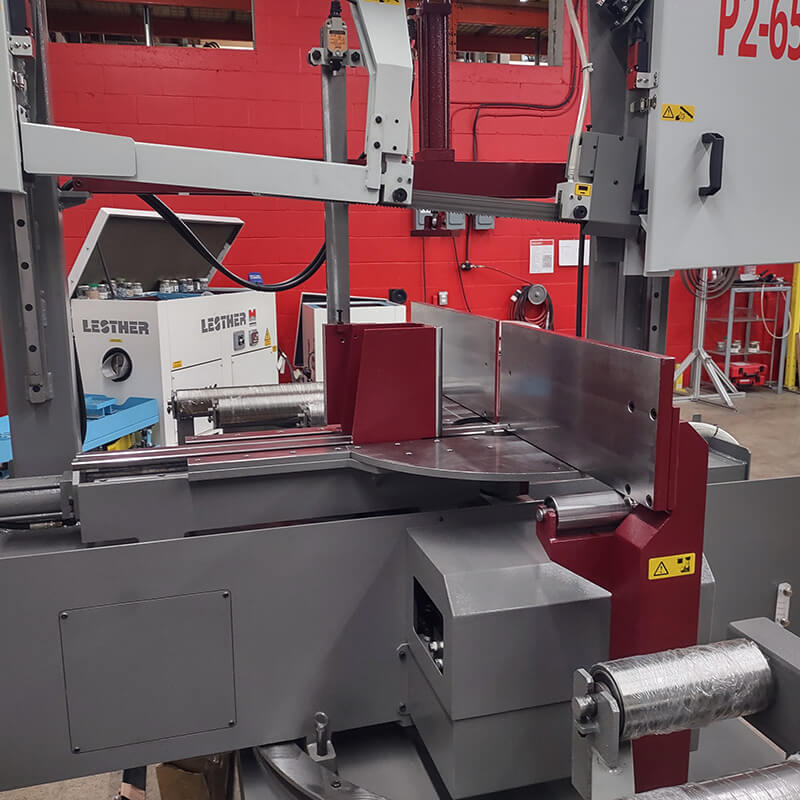

The rotary center is at the intersection point of the saw blade and the fixed vice jaw.
Inclination of the saw blade (4° for P2-610DM and 5° for all other models) to reduce the initial blade impact when cutting beams.

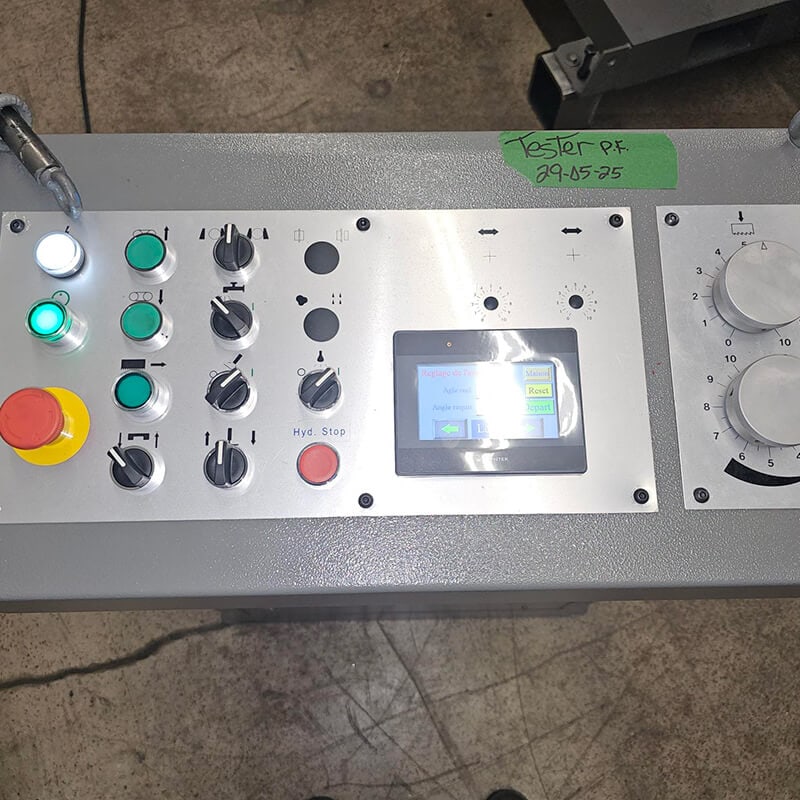

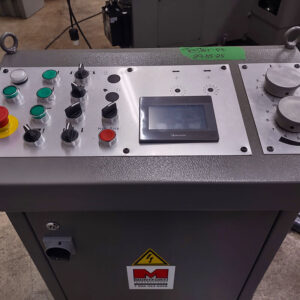

NC/Manual mitre positioning with digital readout to 0.1° accuracy

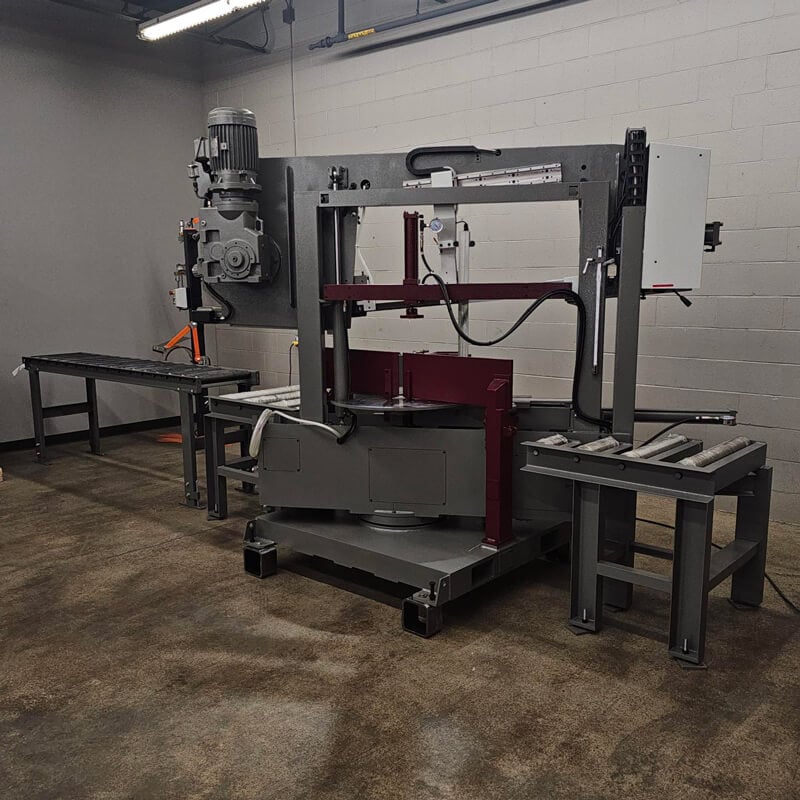

Double columns with linear guidewayss
Return of saw bow to starting cutting position or stop to bottom when cut of material
Automatic positioning of guide arm

Standard Equipment

Inverter blade speed drive
Hydraulic blade tension
Laser liner
Vice pressure regulator
Fluid coolant system

Optional Equipment

Mist Lubrication
Hydraulic Top clamp
Full height vice jaws

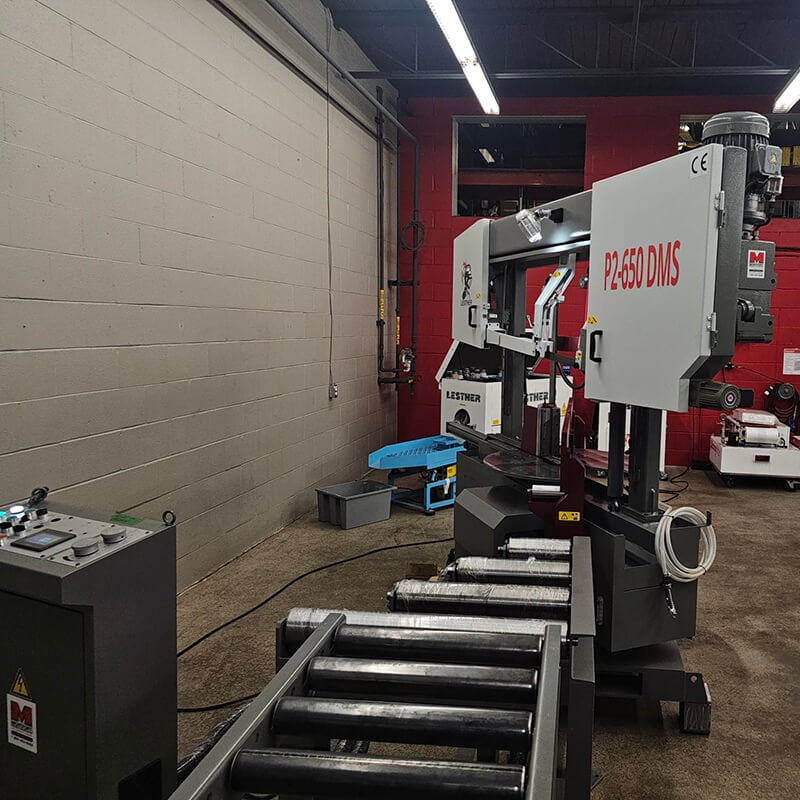

Roller Table
Powered roller table
Material Feed system

Technical Specifications

Model		P2-650DMS
Cutting Capacity (mm)	● 90°	450
	■ 90°	■ 90°	440 x 650
	45° Left	45° Left	440 x 420
	30° Left	30° Left	340 x 270
	45° Right	45° Right	440 x 420
	30° Right	30° Right	440 x 270
Motors	Saw blade	3.75 KW
	Hydraulic	Hydraulic	0.75 KW
	Coolant	Coolant	0.1 KW
	Brush	Brush	-
Blade size		212" x 1-1/2" x 0.50" (5400 x 41 x 1.3 mm)
Blade speed (M/min)		20-90
Vise Clamping Width (mm)		60-670
Working Height (mm)		730
Dimensions (mm)	Length	2250
	Width	Width	2900
	Height	Height	2200
Net Weight (approx.) kg		2200
