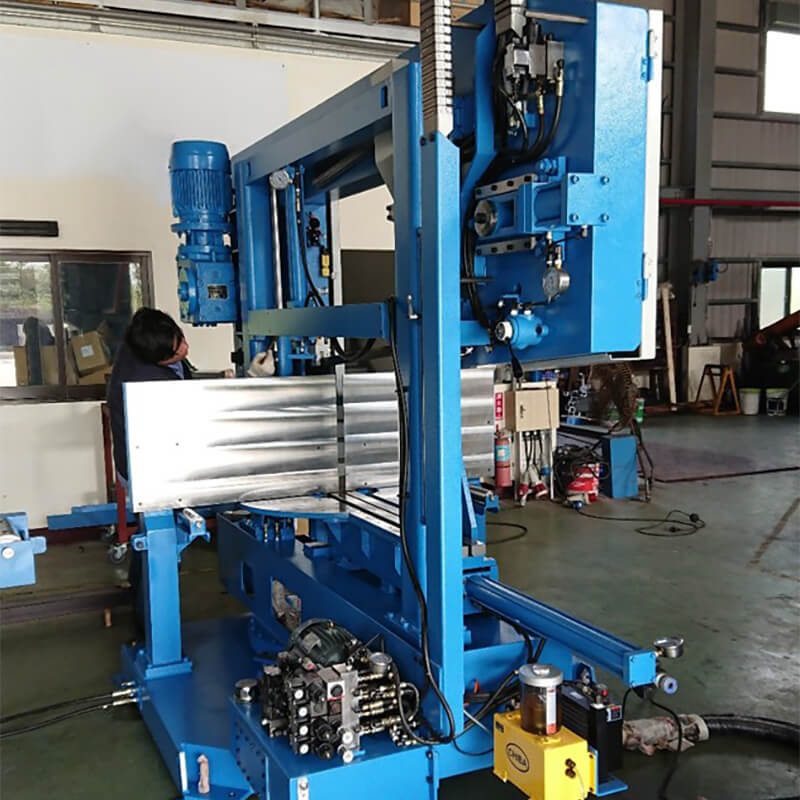

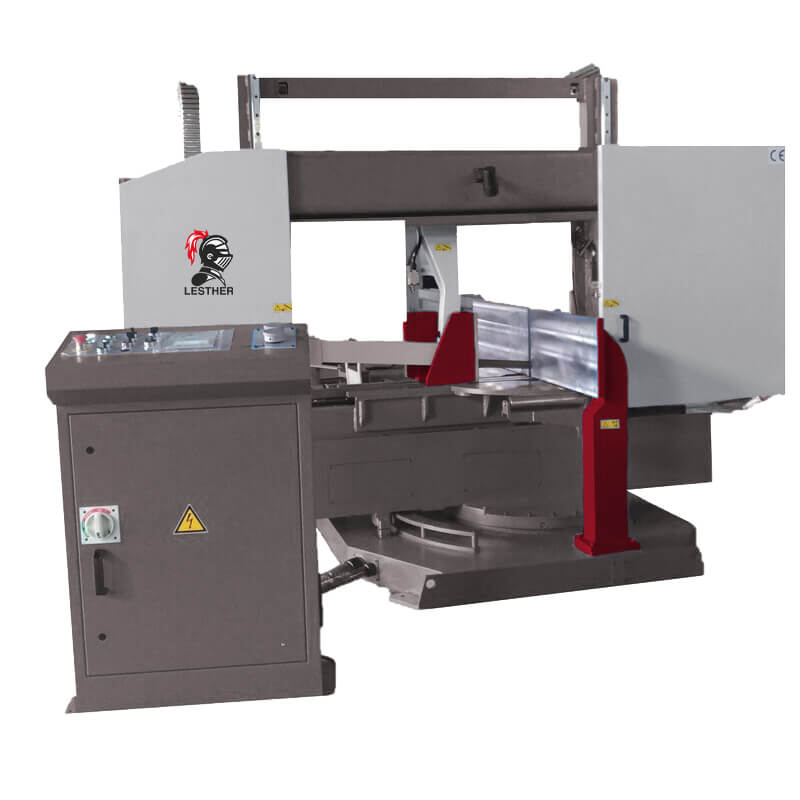

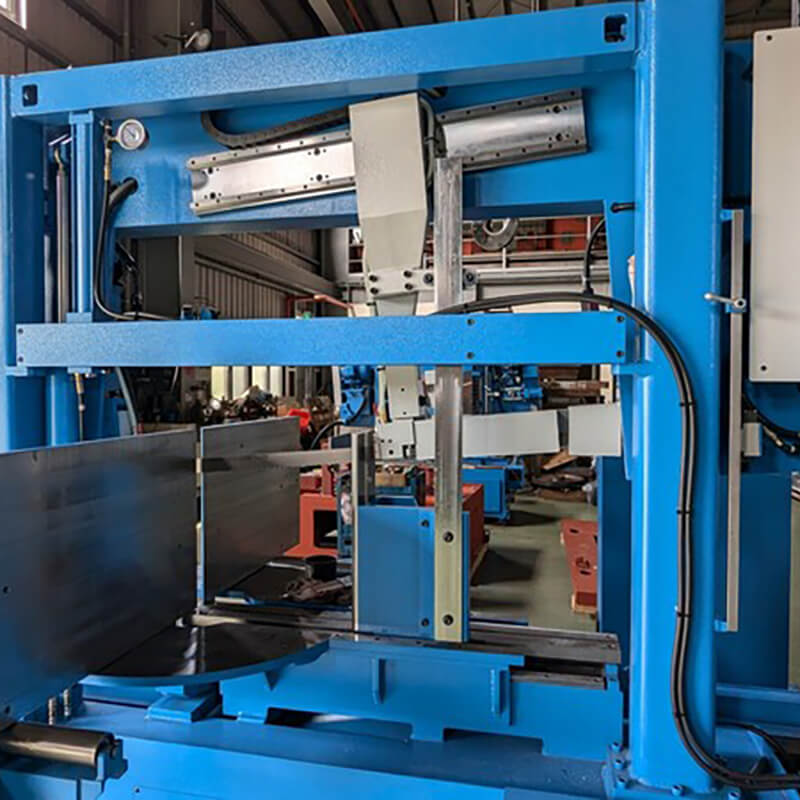

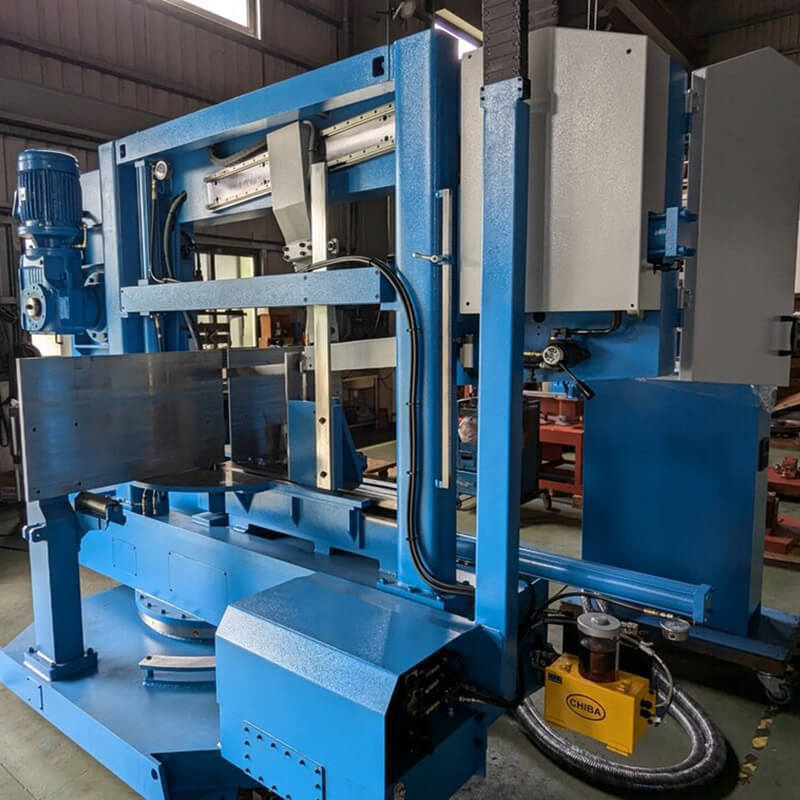

LESTHER P2-800DMS Column Type Semi-Automatic Double Miter Bandsaw

Name: LESTHER P2-800DMS - Column Type Semi-Automatic Double Miter Bandsaw
Brand: Lesther
SKU: LES-P2-800DMS
Availability: InStock

The Lesther P2-800DMS is a column type semi-automatic double miter sawing machine with Computer Numerical Control (CNC) and perfectly designed for cutting any angle from 90° to 30° left and 90° to 45° right. Inclination of the saw blade 5° to reduce the initial blade impact when cutting beams.

Quote request

A multidisciplinary team to accompany you in your projects

A remarkable After-Sales Support

Unrivaled quality and a customized product

SKU: LES-P2-800DMS Categories: Sawing & Cutting Machines, Sawing & Cutting Machines, Semi-Automatic Bandsaws, Semi-Automatic Bandsaws

Print in PDF

Send by email

Documentation

LESTHER Catalogue - FR & EN

Column Type CNC Semi-Automatic Double Miter Cutting Bandsawing Machine

Optimize your metal sawing operations using our P2-800DMS, a semi-automatic miter cutting machine with numerical control (CNC) from Lesther. For cutting angles from 90° to 30° left and 90° to 45° right. Equipped with double columns with linear guideways, it inclines the saw blade 5° to reduce the initial blade impact when cutting beams.

Features

For cutting any angle from 90° to 30° left and 90° to 45° right.
The rotary center is at the intersection point of the saw blade and the fixed vice jaw
Inclination of the saw blade by 5° to reduce the initial blade impact when cutting beams
NC/Manual mitre positioning with digital readout to 0.1° accuracy
Columns with linear guideways
Return of saw bow to starting cutting position or stop to bottom when cut of material
Automatic positioning of guide arm

Standard Equipment

Inverter blade speed drive
Hydraulic blade tension
Laser liner
Vice pressure regulator
Fluid coolant system

Optional Equipment

Mist Lubrication
Hydraulic Top clamp
Full height vice jaws
Roller Table
Powered roller table
Material Feed system

Technical Specifications

Model		P2-800DMS
Cutting Capacity (mm)	● 90°	600
	■ 90°	■ 90°	550 x 800
	45° Left	45° Left	400 x 520, 550 x 480
	30° Left	30° Left	400 x 340, 550 x 300
	45° Right	45° Right	550 x 520
	30° Right	30° Right	-
Motors	Saw Blade	5.5 KW
	Hydraulic pump	Hydraulic pump	1.5 KW
	Coolant	Coolant	0.2 KW
	Brush	Brush	0.1 KW
Blade size		265" x 1-1/2" x 0.50" (6740 x 41 x 1.3 mm)
Blade speed (M/min)		20-90
Vise Clamping Width (mm)		80-820
Working Height (mm)		800
Dimensions (mm)	Length	2000
	Width	Width	3500
	Height	Height	2560
Net Weight (approx.) kg		5200
