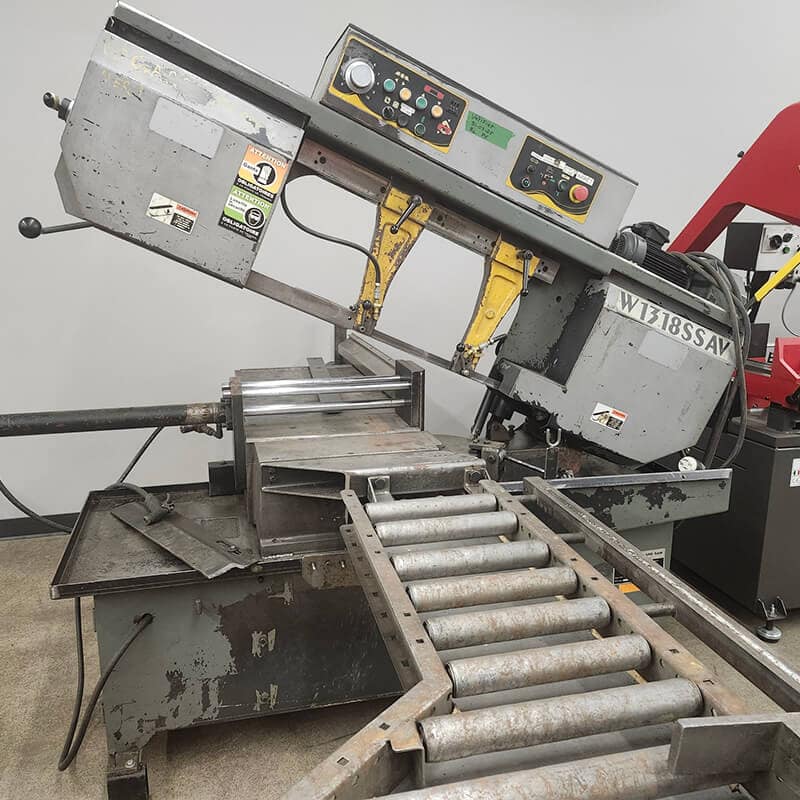

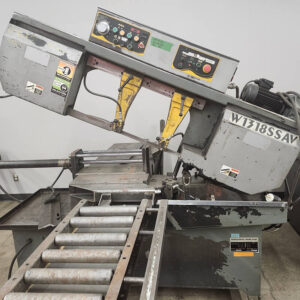

Horizontal bandsawing machine with miter cutting - Way Train brand. Model W1318SSAV
USED/strong>
| Model | W1318SSAV | |||
|---|---|---|---|---|
| Cutting capacity | 90° Round Ø | 330 mm (13") | 330 mm (13") | 330 x 450 mm (13" x 18") |
| 90° Rectangle ⍂ | 330 x 450 mm (13" x 18") | |||
| 45° Rond Ø | 280 mm (11") | |||
| 45° Rectangle ⍂ | 330 x 280 mm (13" x 11") | |||
| 60° Rond Ø | 160 mm (6.3") | |||
| 60° Rectangle ⍂ | 250 x 160 mm (10" x 6.3") | Blade | Speed | 60 Hz 27-78 MPM (89-256 FPM) | 60 Hz 27-78 MPM (89-256 FPM) | 27 x 0.9 x 4130 mm (1.06" x 0.035" x 162.6") |
| Dimensions | 27 x 0.9 x 4130 mm (1.06" x 0.035" x 162.6") | |||
| Motor | 3 HP (2.2 kW) | |||
| Reduction unit in oil bath | 39:1L | |||
| Coolant tank | 30 L (7.9 gal) | |||
| Height | 760 mm (29.9") | |||
| Machine weight | 848 kg (1870 lbs) | |||
| Floor space 90° | 2000 x 2020 x 1550 mm (78.7" x 79.5" x 61") | |||
| Packing dimensions | 2240 x 940 x 1595 mm (88.2" x 37" x 62.8") 1665 x 850 x 600 mm (65.5" x 33.5" x 23.6") |
|||
| Net weight | 890 kg (1958 lbs) | |||
| Gross weight | 030 kg (2266 lbs) | |||
