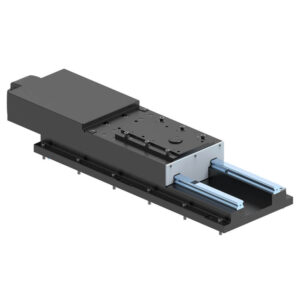

| Features CA 40 | Short | Long |
|---|---|---|
| Stroke | 320 mm | 400 mm |
| Push force | ||
| Feed speed | ||
| Maximum moment (Mx) | ||
| Maximum moment (My) | ||
| Spindle | Ø 32 x 10 | Ø 32 x 10 |
| Weight (without motor) |
| CA.40 | S | PR | 700 | 0 |
|---|---|---|---|---|
| 1 | 2 | 3 | 4 |

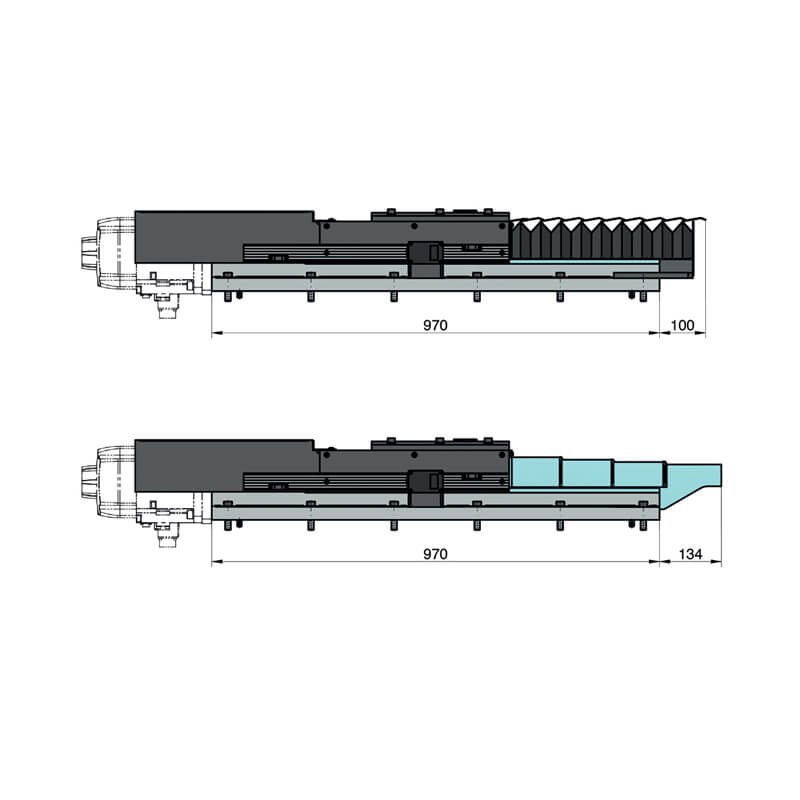

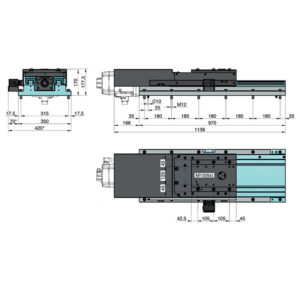

S: Stroke 320 mm

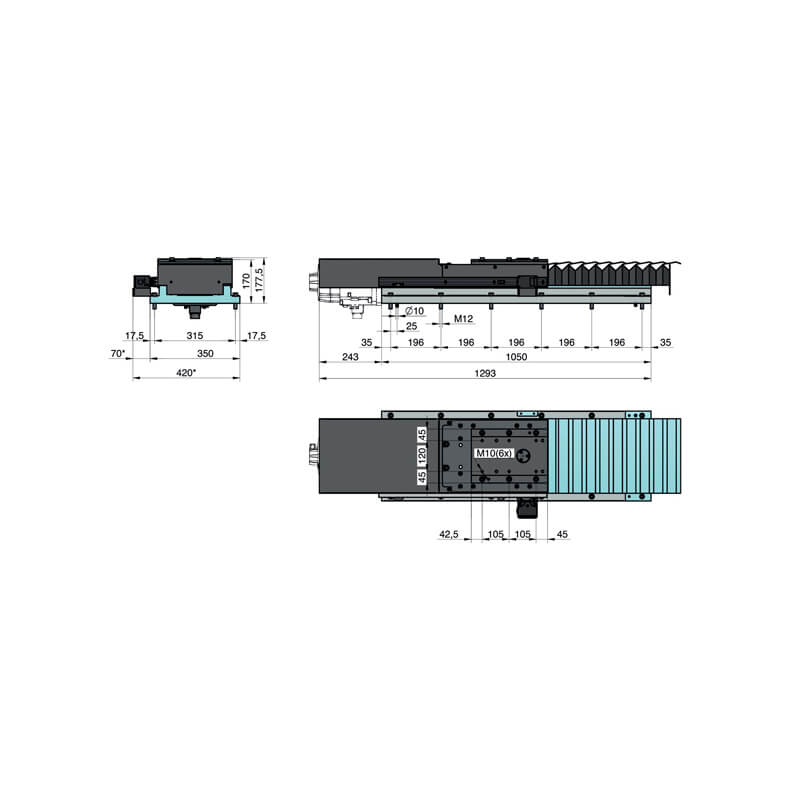

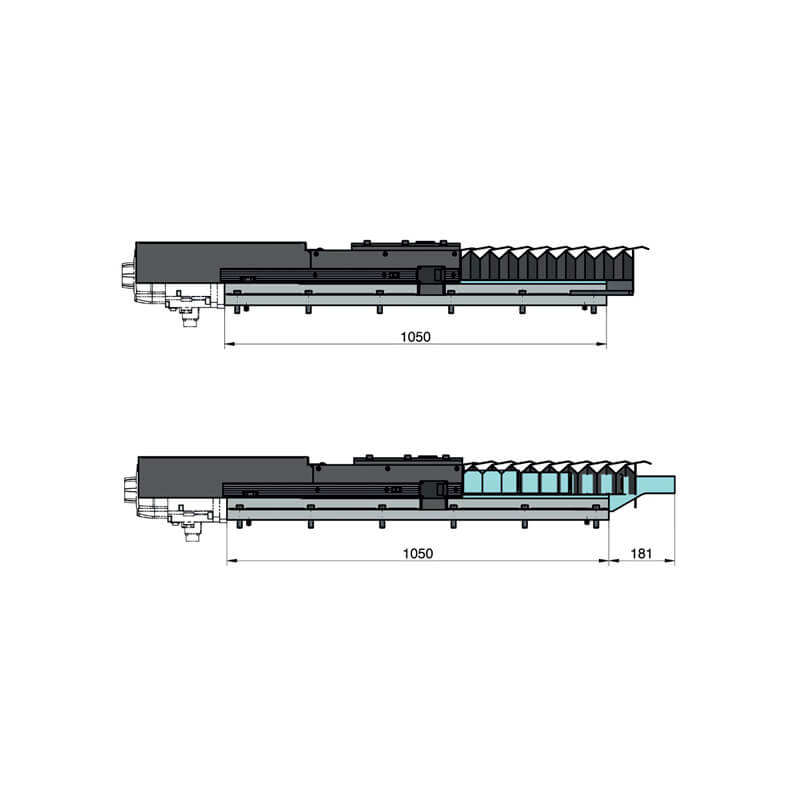

L: Stroke 400 mm
PR: Protection with wiper

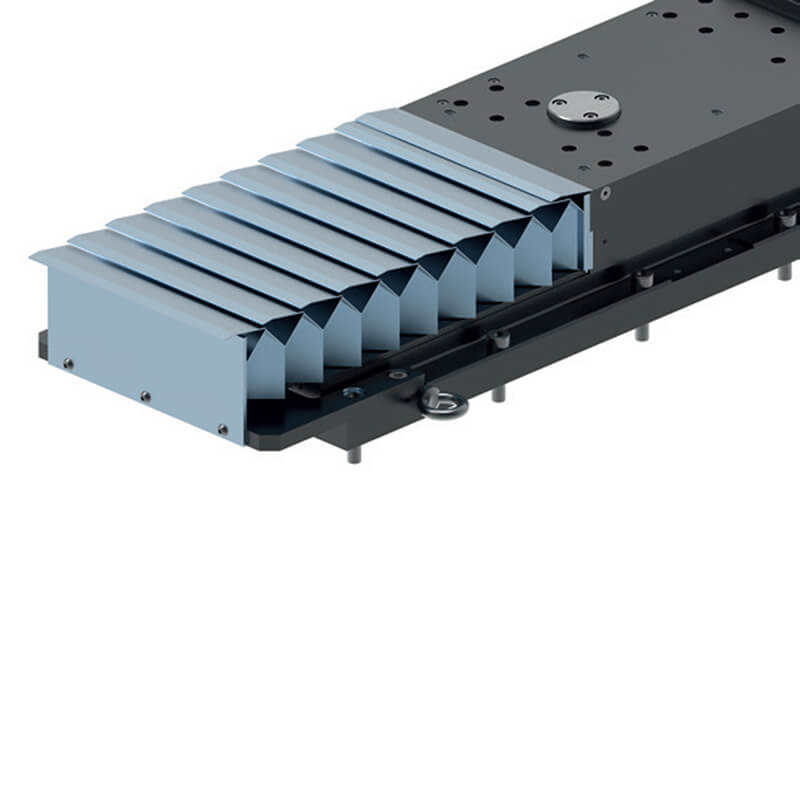

PF: Protection with bellows

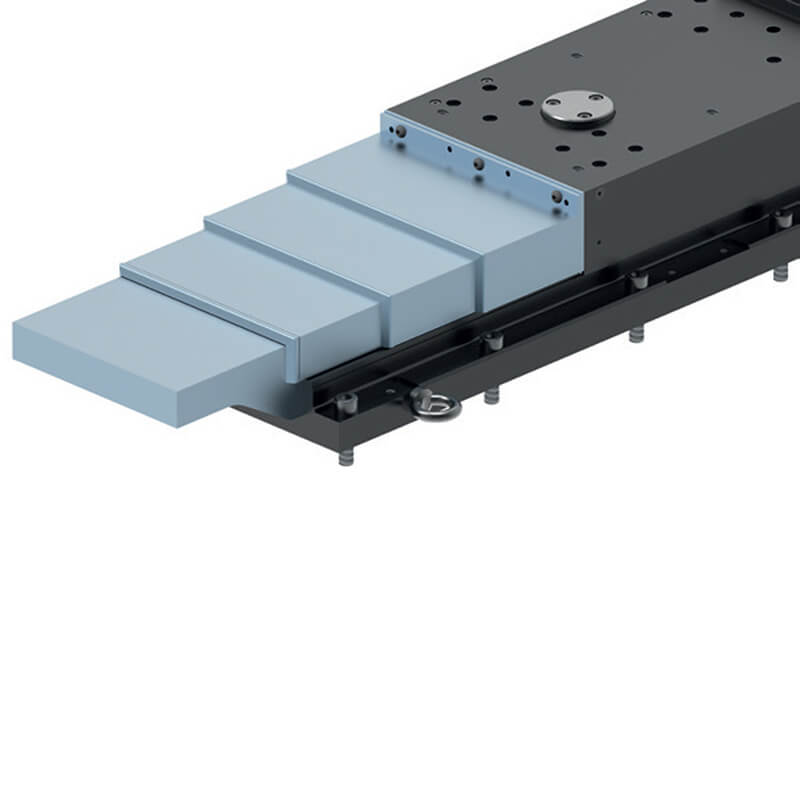

PT: Protection with telescopic guard
NOTE: Protection with wiper not available for 400mm-stroke unit.
| Ø Flange | Ø Shaft | |
|---|---|---|
| 700 | Ø 95 | Ø 24-Ø19 |
| 800 | Ø114,3 | Ø 35-Ø24 |
| 900 | Ø 130 | Ø 32-Ø24 |

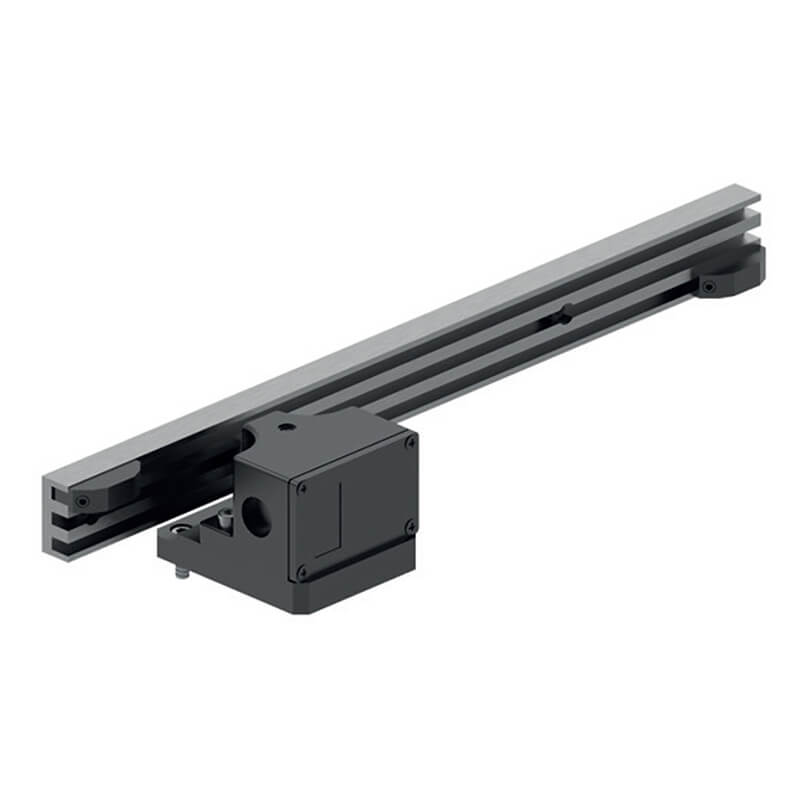

0: Roller unit without micrometric scale
R: Roller unit with micrometric scale to the right
L: Roller unit with micrometric scale to the left
