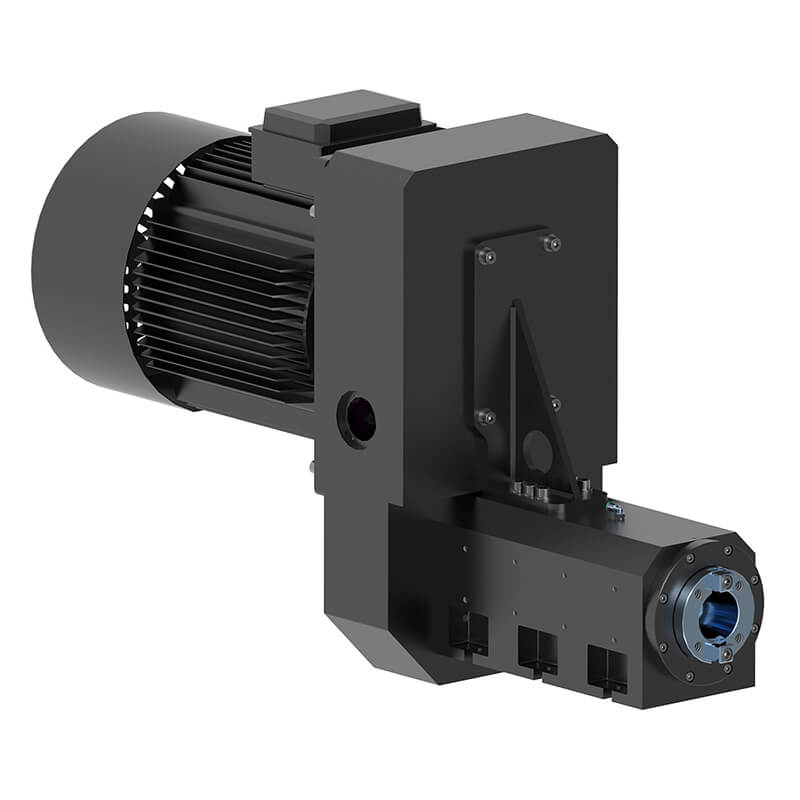

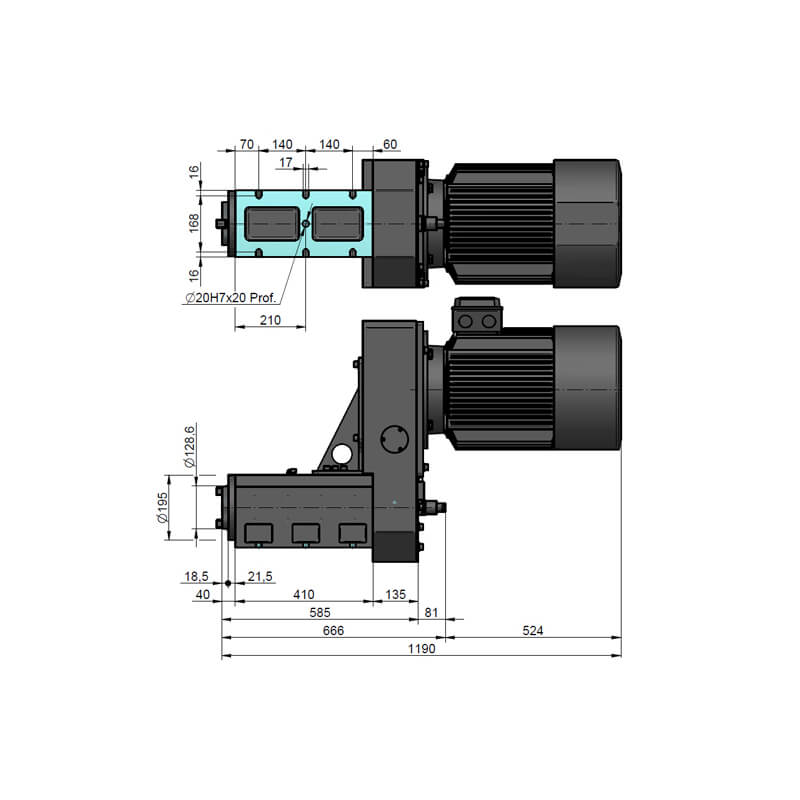

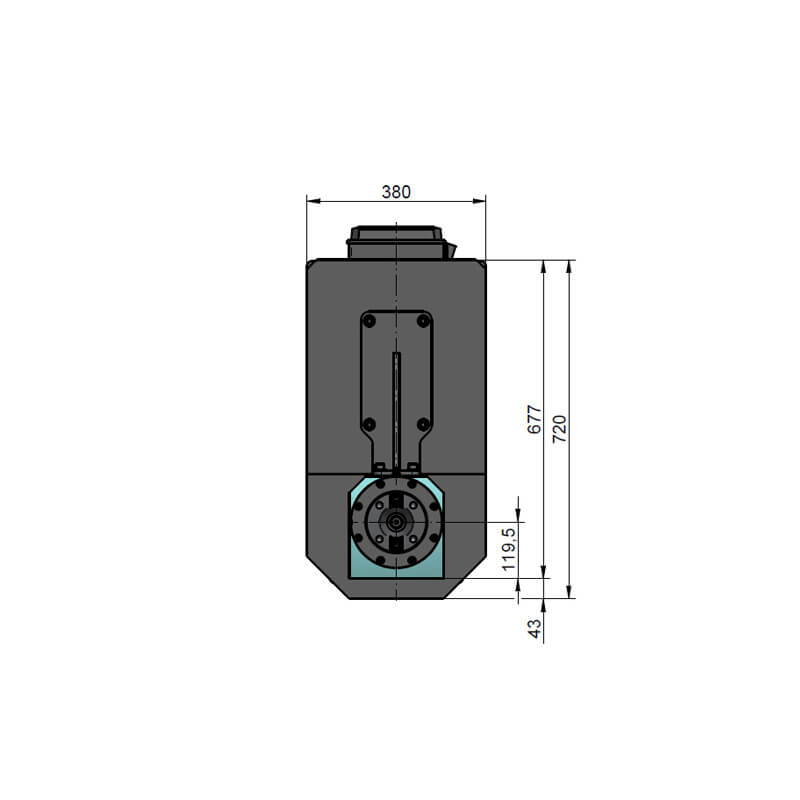

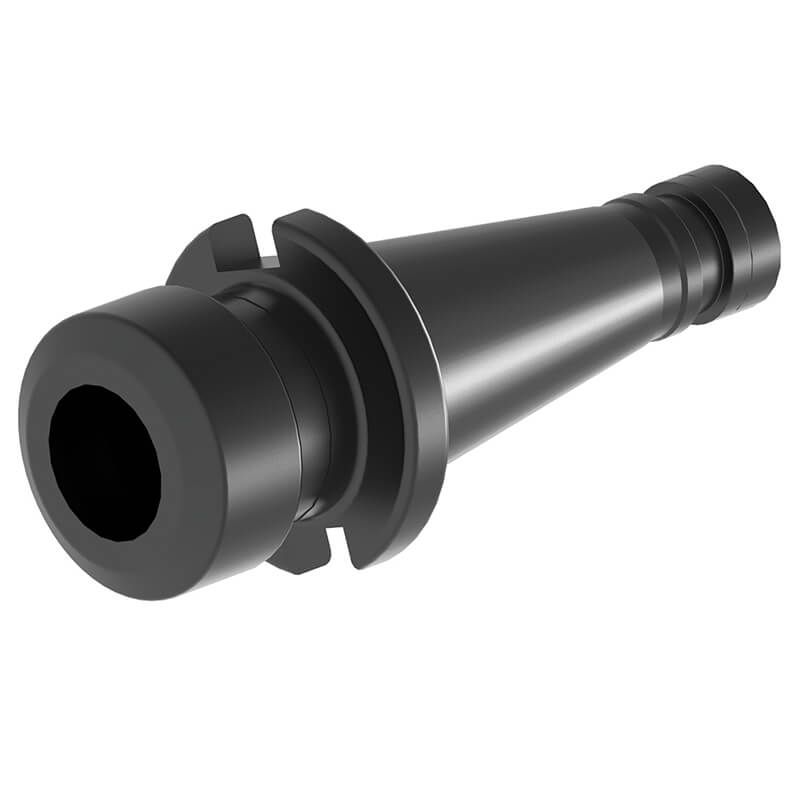

| Features | CG 50 |
|---|---|
| Main cone | ISO-50 - DIN 2080 - DIN 69871/2 - MAS 403 BT (45º) |
| Axial load capacity | |
| Radial load capacity | |
| Maximum torque | |
| Maximum RPM | |
| Drilling capacity (600 N/mm2) | |
| Tapping capacity (600 N/mm2) | |
| Milling capacity (600 N/mm2) | |
| Lubrification | Grease (free maintenance) |
| Cone pressurisation | Maximum 2 bars |
| Concentricity | 0,01 mm |
| Weight (without motor) |
| Automatic tool clamp | Pneumatic release |
| Minimum unclamping pressure: 3.3 bar | |
| Tool clamping force: 12 kN (DIN 69871) | |
| Tool clamping force: 10.5 kN (MAS 403 BT 45°) | |

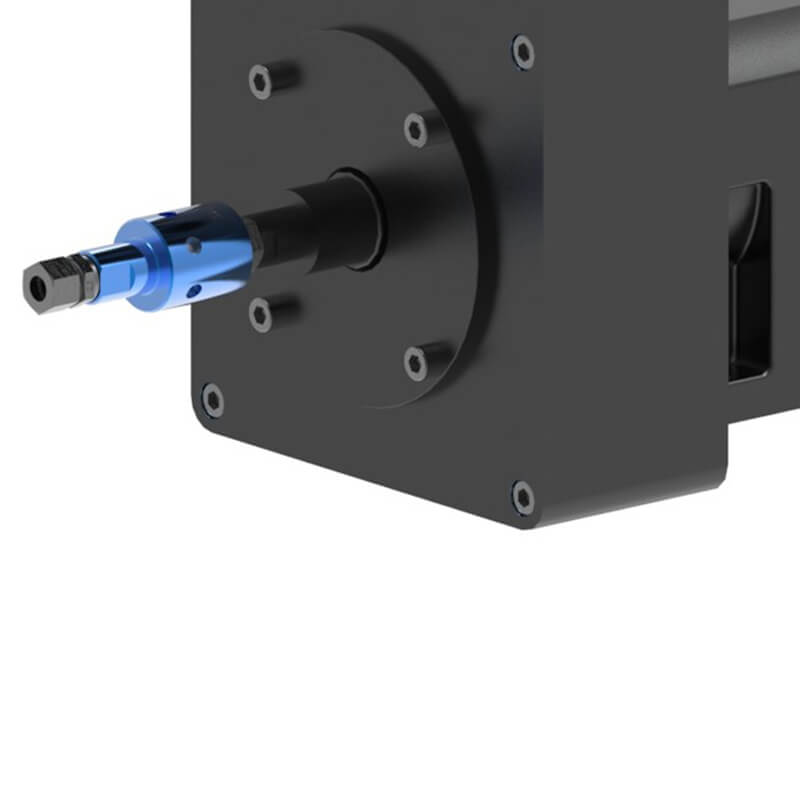

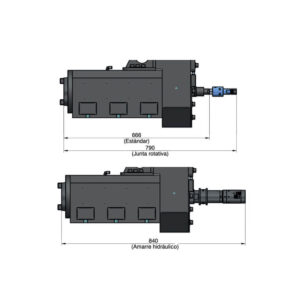

| Rotary joint | 1 coolant passage channel (max. 60μm) |
| Cutting fluid, oil, MQL | |
| Max. pressure 70 bar (MQL 10 bar) |
| CG.50 | 501 | 0 | - | 1 |
|---|---|---|---|---|
| 1 | 2 | 3 | 4 |
AM: Mechanical clamp DIN 2080
AA: Hydraulic clamp MAS-403 BT (45º)
AB: Hydraulic clamp DIN 69871/69872
| R.P.M | TORQUE (Nm.) | Transmission | Motor | |
|---|---|---|---|---|
| 501 | 333 | 444 | 1/3 | 15 kW 1000 r.p.m. |
| 502 | 500 | 429 | 1/3 | 22 kW 1500 r.p.m. |
| 503 | 750 | 286 | 1/2 | 22 kW 1500 r.p.m. |
| 504 | 1000 | 213 | 1/1 | 15 kW 1000 r.p.m. |
| 505 | 1500 | 143 | 1/1 | 22 kW 1500 r.p.m. |
| 506 | 3000 | 71 | 1/1 | 22 kW 3000 r.p.m. |
0: Head without interior cooling
1: Head with interior cooling
*NOTE: For units with automatic tool clamping, the tool's internal cooling system is included by default.

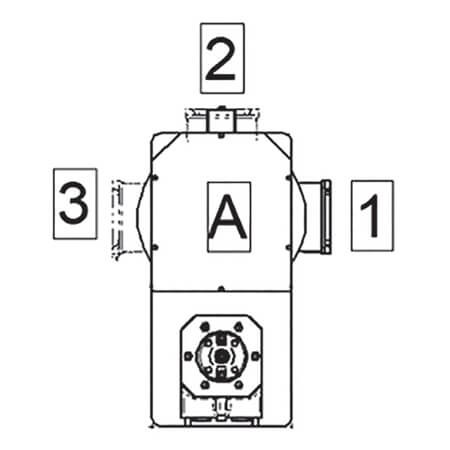

1, 2, 3
