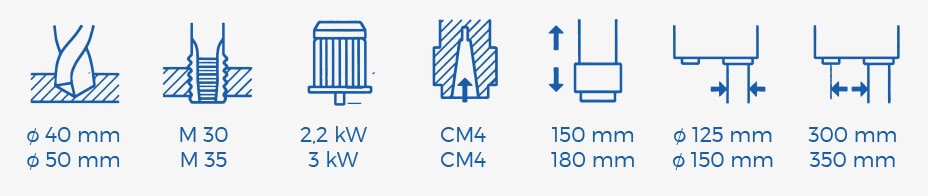

| Maximum steel drilling capacity 50/60 |
40 Ø mm |
50 Ø mm |
| Maximum steel tapping capacity 50/60 |
M30 |
M35 |
| Morse cone |
4 Nr. |
| Maximum spindle travel (drilling depth) |
150 mm |
180 mm |
| Main motor power |
2,2 kw |
3 kw |
| Transmission |
Gears |
| Number of speeds |
9 |
| Speed range with motor at 1500 rpm 50Hz 3HP |
132 - 194 - 277 - 319 - 466 - 666 - 883 - 1296 - 1852 |
| Feed |
Automatic |
| Number of automatic feeds |
3 mm |
| Automatic feed range |
0,10 - 0,20 - 0,30 mm/rev |

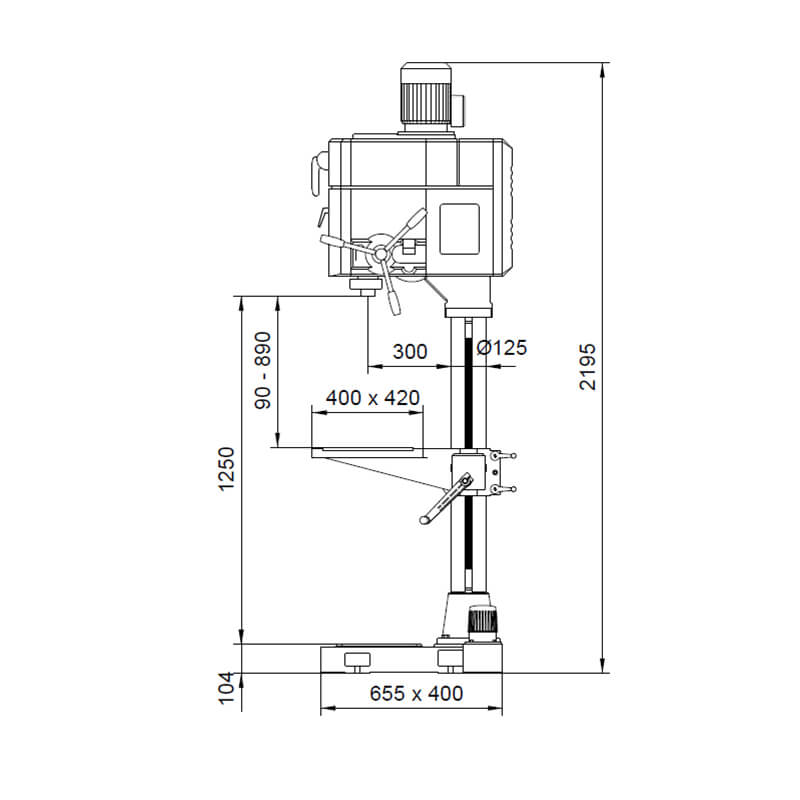

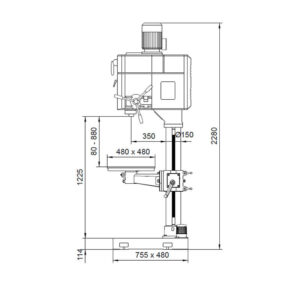

| Worktable dimensions (LxW) |
400 x 420 mm |
480 x 480 mm |
| Column diameter |
125 mm |
150 mm |
| Distance from the spindle centre to the face of the column |
300 mm |
350 mm |
| Net weight |
400 kg |
450 kg |
| Gross weight with packaging |
450 kg |
540 kg |
| Packaging dimensions (length x width x height) |
2310 x 600 x 1100 mm |
