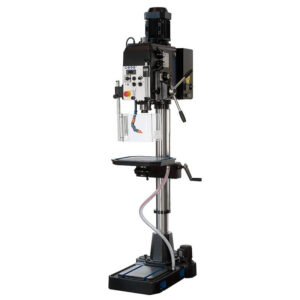

Erlo TS Serie Round Column Drilling Machine with Manual Feed
EN - Demande d'information

    Erlo TS Serie Round Column Drilling Machine with Manual Feed

    Round column drill with manual feed and transmission gears. Drilling capacity: 25-30 mm (0 63/64" - 1 3/16").
    Quote request
    A multidisciplinary team to accompany you in your projects
    A remarkable After-Sales Support
    Unrivaled quality and a customized product
    SKU: ERL-TS Categories: ,

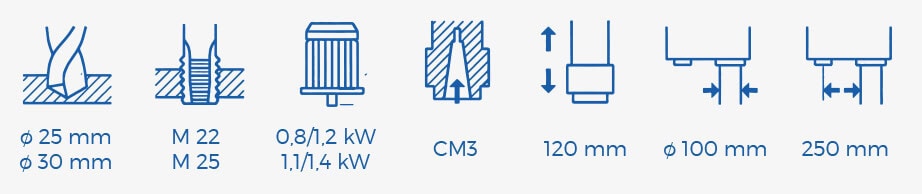

    Drilling Machine with Manual Feed

    • Manual feed
    • Transmission gears
    • Column diameter: 100 mm
    • Distance from spindle to column: 250 mm
    • Moveable table and fixed bit
    • Drilling capacity: ⌀ 25-30 mm
    • Tapping capacity: M 22-25
    • Spindle cone: CM 3
    • Engine power: 1.1/1.6 | 1.5/1.9 HP
    • Num. and selections of speeds: (8) 65 – 3060 rpm
    • Drilling depth: 120 mm
    • Weight: 260 kg
    • Measurements: 655 x 400 x 2100 mm
    • Cooling equipment: Optional
    • Light equipment

    Standard Equipment

    • Adjustable depth end
    • Lighting equipment
    • Tool ejector
    • Motor guard and emergency push button
    • Main switch
    • Turning sense selector
    • Electrical equipment at low voltage
    • Electrical equipment in a separate cabinet
    • Drill guard with stop micro
    • CE norms

    Optional Equipment

    • Frontal wheel for fine sensitive feed (only for TS serie
    • Speed electronic variator
    • Speed digital reader (for models with variator)
    • Depth digital reader
    • Tapping system IR/RS
    • Tapping system IR/RS (for models with variator)
    • Automatic tapping system by lead screw
    • Rotating table
    • Cycles counter (for models with hydroblock)
    • Column supplement
    • Hydroblock (for models TS)
    • Coolant equipent in the base

    Available Models

    • TS.25
    • TS.30
    • TSA.25
    • TSA.30

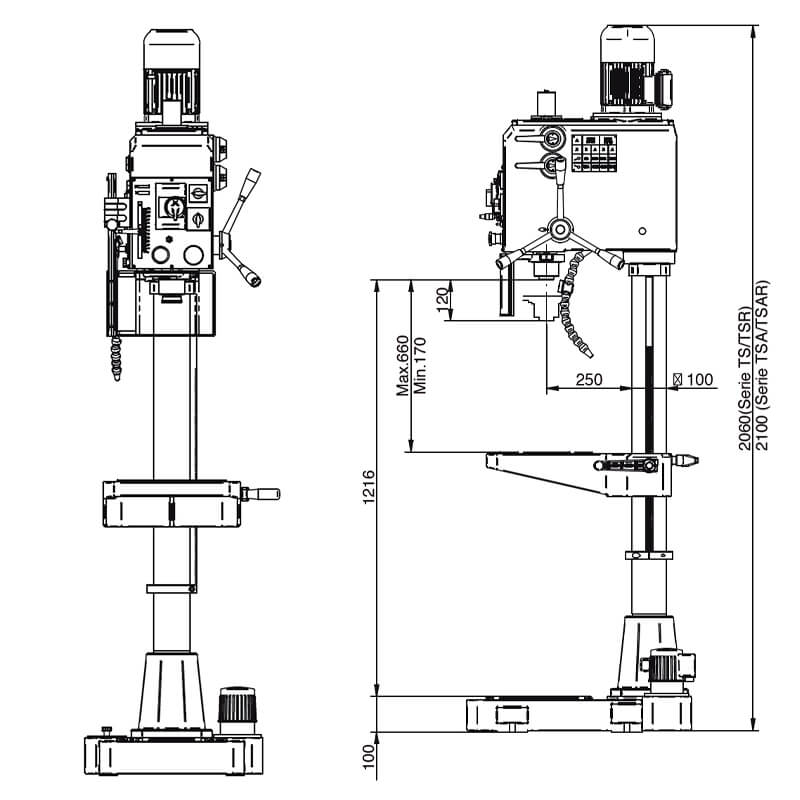

    Technical Specifications

    MODEL TS.25 TS.30 TSA.25 TSA.30
    DRILLING CAPACITY IN STEEL OF 70 Kg. (mm) 25 mm 30 mm 25 mm 30 mm
    TAPPING CAPACITY IN STEEL OF 70 Kg M22 M25 M22 M25
    TRANSMISSION GEARS (Hardened and grounded) GEARS (Hardened and grounded) GEARS (Hardened and grounded) GEARS (Hardened and grounded)
    SPEED NUMBER AND RANGE (WITHOUT VARIATOR) (8) 65 - 125 - 185 - 365 - 540 - 1.055 - 1.560 - 3.060 rpm (8) 65 - 125 - 185 - 365 - 540 - 1.055 - 1.560 - 3.060 rpm (8) 65 - 125 - 185 - 365 - 540 - 1.055 - 1.560 - 3.060 rpm (8) 65 - 125 - 185 - 365 - 540 - 1.055 - 1.560 - 3.060 rpm
    SPEED NUMBER AND RANGE (WITH VARIATOR) VARIABLES A )45-125 B) 125-370 C) 380-1070 D) 1100-3100 rpm VARIABLES A )45-125 B) 125-370 C) 380-1070 D) 1100-3100 rpm VARIABLES A )45-125 B) 125-370 C) 380-1070 D) 1100-3100 rpm VARIABLES A )45-125 B) 125-370 C) 380-1070 D) 1100-3100 rpm
    FEED MANUAL MANUAL AUTOMATIC AUTOMATIC
    NUMBER AND RANGE OF FEEDS - - (2) 0,10-0,20 (2) 0,10-0,20
    MAIN MOTOR POWER (WITHOUT VARIATOR) MOTOR 1500/3000 rpm 1,1/1,6 HP 1,5/1,9 HP 1,1/1,6 HP 1,5/1,9 HP
    MAIN MOTOR POWER (WITH VARIATOR) MOTOR 1500 rpm. 2 HP 2 HP 2 HP 2 HP
    SPINDLE CONE CM.3 CM.3 CM.3 CM.3
    SPINDLE STROKE 120 mm 120 mm 120 mm 120 mm
    SPINDLE STROKE WITH HYDROBLOCK (SERIE TS) 90 mm 90 mm - -
    DISTANCE SPINDLE-COLUMN 250 mm 250 mm 250 mm 250 mm
    DISTANCE SPINDLE-TABLE Mín. 170/Máx. 660 mm Mín. 170/Máx. 660 mm Mín. 170/Máx. 660 mm Mín. 170/Máx. 660 mm
    DISTANCE SPINDLE-BASE 1216 mm 1216 mm 1216 mm 1216 mm
    COLUMN DIAMETER Ø100 mm Ø100 mm Ø100 mm Ø100 mm

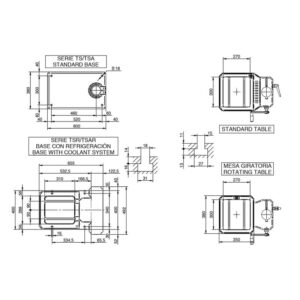

    DIMENSIONS OF THE TABLE (WITH 2 T SLOTS) 270x300 mm 270x300 mm 270x300 mm 270x300 mm
    DIMENSIONS OF THE BASE WITHOUT T SLOTS (WITHOUT COOLANT) 600x380 mm 600x380 mm 600x380 mm 600x380 mm
    DIMENSIONS OF THE BASE WITH T SLOTS (WITH COOLANT) 665x400 mm 665x400 mm 665x400 mm 665x400 mm
    WEIGHT: NET / GROSS Kg 260 / 320 Kg 260 / 320 Kg 260 / 320 Kg 260 / 320 Kg
    PACKAGING DIMENSIONS AND VOLUME 2200 x 600 x 900 / 1,19 m 2200 x 600 x 900 / 1,19 m 22200 x 600 x 900 / 1,19 m 2200 x 600 x 900 / 1,19 m

    Accessories

    Multiple headstocks

    Tapping System IR/RS

    Tapping system by lead screw

    Hidroblock : standard cycle or cycle upon request

    Pneumatic cycles : synchronised, pipes and profiles or peck drilling cycle

    Flowdrilling and tapping

    Intermediate tables for bench type drilling machines : Fixed intermediate table

    Intermediate tables for bench type drilling machines : Rotating intermediate table

    Reversible tables with vice for column drilling machines : Reversible rotating table with vice

    Bi manual command

    Cycle start foot switch
