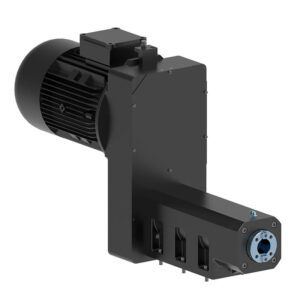

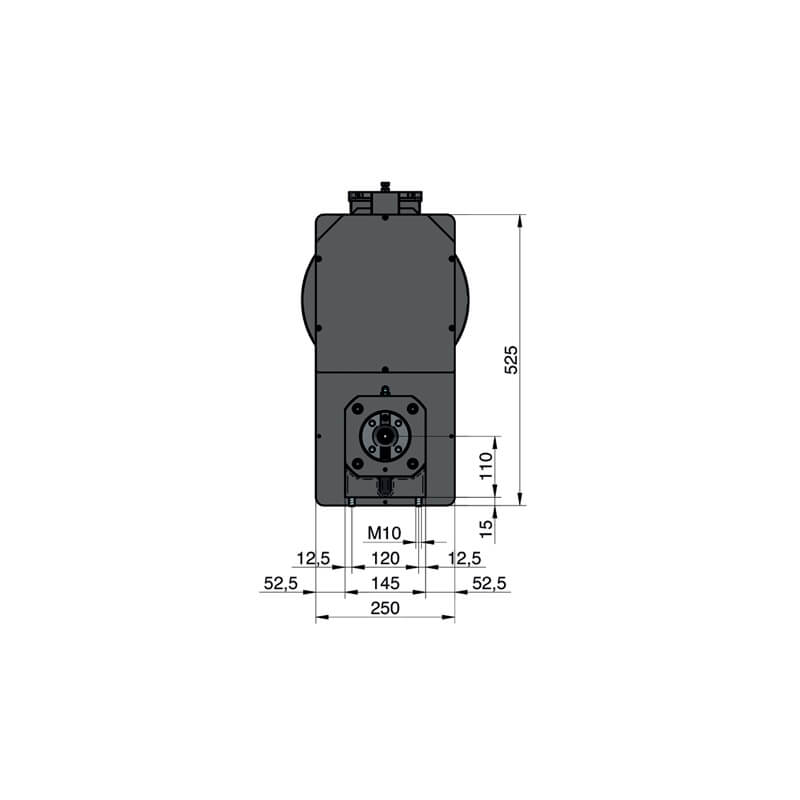

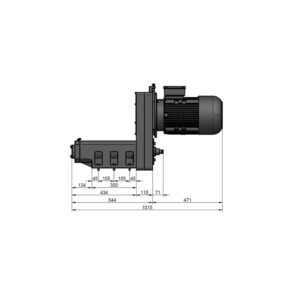

| Features | CG 40 |
|---|---|
| Main cone | ISO-40 -DIN 2080 - DIN 69871/2 - MAS 403 BT (45º) |
| Axial load capacity | |
| Radial load capacity | |
| Maximum torque | |
| Maximum RPM | |
| Drilling capacity (600 N/mm2) | |
| Tapping capacity (600 N/mm2) | |
| Milling capacity (600 N/mm2) | |
| Lubrification | Grease (free maintenance) |
| Cone pressurisation | Maximum 2 bars |
| Concentricity | 0,01 mm |
| Weight (without motor) |

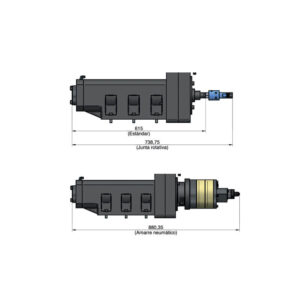

| Rotary joint | Pneumatic release |
| Minimum unclamping pressure: 3.3 bar | |
| Tool clamping force: 12 kN (DIN 69871) | |
| Tool clamping force: 10.5 kN (MAS 403 BT 45°) | |
| Automatic tool clamp | 1 coolant passage channel (max. 60μm) |
| Cutting fluid, oil, MQL | |
| Max. pressure 70 bar (MQL 10 bar) | |
| Encoder | 4,096 pulses |
| A+, B+, R+, A-, B-, R (zero pulse) |
| CG.40 | AM | 601 | 0 | 0 | - | B | 1 |
|---|---|---|---|---|---|---|---|
| 1 | 2 | 3 | 4 | 5 | 6 |
AM: Mechanical clamp
AA: Pneumatic clamp MAS 403-1982 BT/PT2 (45º)2
AB: Pneumatic clamp DIN 69871/69872
| R.P.M | TORQUE (Nm.) | Transmission | Motor | |
|---|---|---|---|---|
| 601 | 322 | 163 | 1/3 | 5,5 kW 1000 r.p.m. |
| 602 | 483 | 109 | 1/2 | |
| 603 | 643 | 82 | 1/1,5 | |
| 604 | 965 | 54 | 1/1 | |
| 605 | 1448 | 36 | 1,5/1 | |
| 606 | 483 | 148 | 1/3 | 7,5 kW 1500 r.p.m. |
| 607 | 725 | 99 | 1/2 | |
| 608 | 967 | 74 | 1/1,5 | |
| 609 | 1450 | 49 | 1/1 | |
| 610 | 2175 | 33 | 1,5/1 | 11 kW 1500 r.p.m. |
| 611 | 483 | 113 | 1/3 | |
| 612 | 725 | 75 | 1/2 | |
| 613 | 967 | 113 | 1/1,5 | |
| 614 | 1450 | 75 | 1/1 | |
| 615 | 2175 | 50 | 1,5/1 |
0: Head without encoder
1: Head with encoder voltage 5VDC±5%TTL/RS42
2: Head with encoder voltage 10…30VDC, HTL/PP
*NOTE: Encoder not available for head with mechanical clamp
0: Head without interior cooling
1: Head with interior cooling
*NOTE: For units with automatic tool clamping, the tool's internal cooling system is included by default.
A, B, C, D
1, 2, 3
